MMS-D-X0 Specifications
-

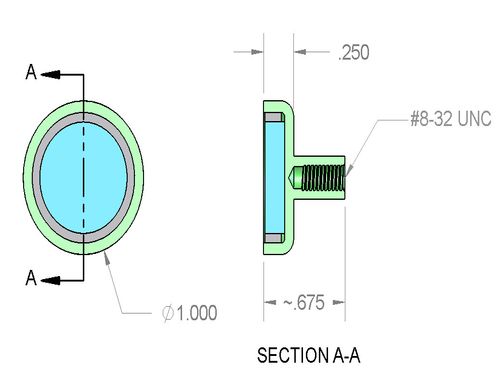

Dimensions: This shows the name of each dimension and how it is measured in the image.
-
Magnetization Direction: The direction through which the magnet is magnetized. See our Magnetization Directions page for more details.
North (outer face)
-
Size: Size is the physical dimensions of the product using the standard unit of measure inches.1 x 0.25 Inch ( Diameter x Thickness )
-
Metric Size: Metric size is the physical dimensions of the product in metric millimeters.25.4 x 6.35 mm ( Diameter x Thickness )
-
Pull Force 1: Pull force case 1 represents a magnet attracting to a thick steel plate. Learn more about Magnet Pull Force Case 1.40.64 lb (18.43 kg)
-
Grade:Hover over grades for temp info:Grade N
Min: -238°F (-150°C) Max: 176°F (80°C)
- N
- NM
- NH
- NSH
- NUH
- NEH
- NAH
N42 -
Max Operating Temp: Maximum operating temperature, also known as maximum service temperature, is the temperature at which the magnet may be exposed to continuously with no significant long-range instability or structural changes. Learn more in our Temperature and Neodymium Magnets article.176°F (80°C)
-
Material: This lists the name of the material each product is composed of.Neodymium (NdFeb)
-
BH Max: BH max is the Maximum Energy Product at the point on the B/H Curve that has the most strength, expressed in MGOe (MegaGaussOersteds). When describing the grade of a neodymium magnet, this number is commonly referred to as the "N" number, as in Grade N52 magnets. Learn more about Bh max in our glossary.42 MGOe
-
Tolerances: Dimensional tolerance specifies the allowed leeway for variations in manufacturing.±0.01 in (.25mm)
-
Coating: Most neodymium magnets are plated or coated in order to protect the magnet material from corrosion. Check out our Custom Magnets for unplated magnets and other coatings not stocked for this size magnet. Learn more about all available platings and coating in our What Magnet Coating Should I Use? article.Nickel-Copper-Nickel (Ni-Cu-Ni)
-
Weight: This is the weight of a single magnet in ounces and grams. Variety packs (with mixed sizes) show the overall weight.0.8474 oz (24.02 g)
-
Br Max: Br max is also called "Residual Flux Density" and is when the magnetic induction remaining in a saturated magnetic material after the magnetizing field has been removed. This is the point at which the hysteresis loop crosses the B axis at zero magnetizing force, and represents the maximum flux output from the given magnet material. By definition, this point occurs at zero air gap, and therefore cannot be seen in practical use of magnet materials. Learn more about Br max in our glossary.13,200 Gauss
-
Hole Size: This is the size hardware that best fits the magnet hole size.#8 screw
-
Color: The color of the coating or plating on the product.Silver

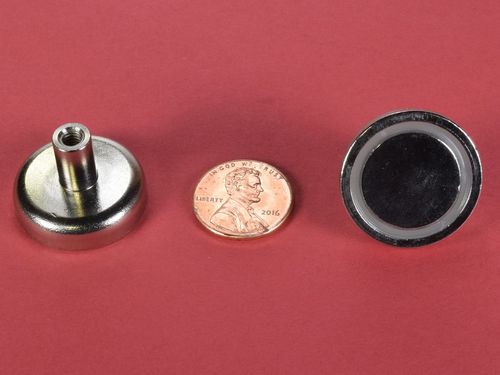

The mms-d-x0 female stud pot magnet has a 1" diameter and 1/4" thickness
with a permanently attached female threaded shaft that accepts a #8 screw
for secure mechanical attachment. The magnet is mounted in a steel cup with
the north pole facing away from the cup and is coated with
nickel-copper-nickel plating that provides a smooth, durable surface and
helps protect the magnet from corrosion. Made from N42 neodymium grade
material, this powerful pot magnet has a 40.64 lb pull force and a max
operating temperature of 176°F (80°C).
The mms-d-x0 is a powerful round pot mounting magnet designed for projects
that require a strong magnetic connection with a raised female threaded
attachment point. Its threaded shaft makes it a versatile choice for
woodworkers, fabricators, engineers, installers, and manufacturers
connecting panels, brackets, fixtures, equipment, signs, displays, and
custom components to steel surfaces. The raised mounting point is especially
useful when the attached component needs clearance behind the magnet or when
the magnet must be positioned away from the mounting hardware in equipment,
enclosures, prototypes, and custom assemblies.
