B428-N52 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 1/4" x 1/8" x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.0678 oz. (1.92 g)
Pull Force, Case 1: 3.02 lbs
Pull Force, Case 2: 3.11 lbs
Surface Field: 7258 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

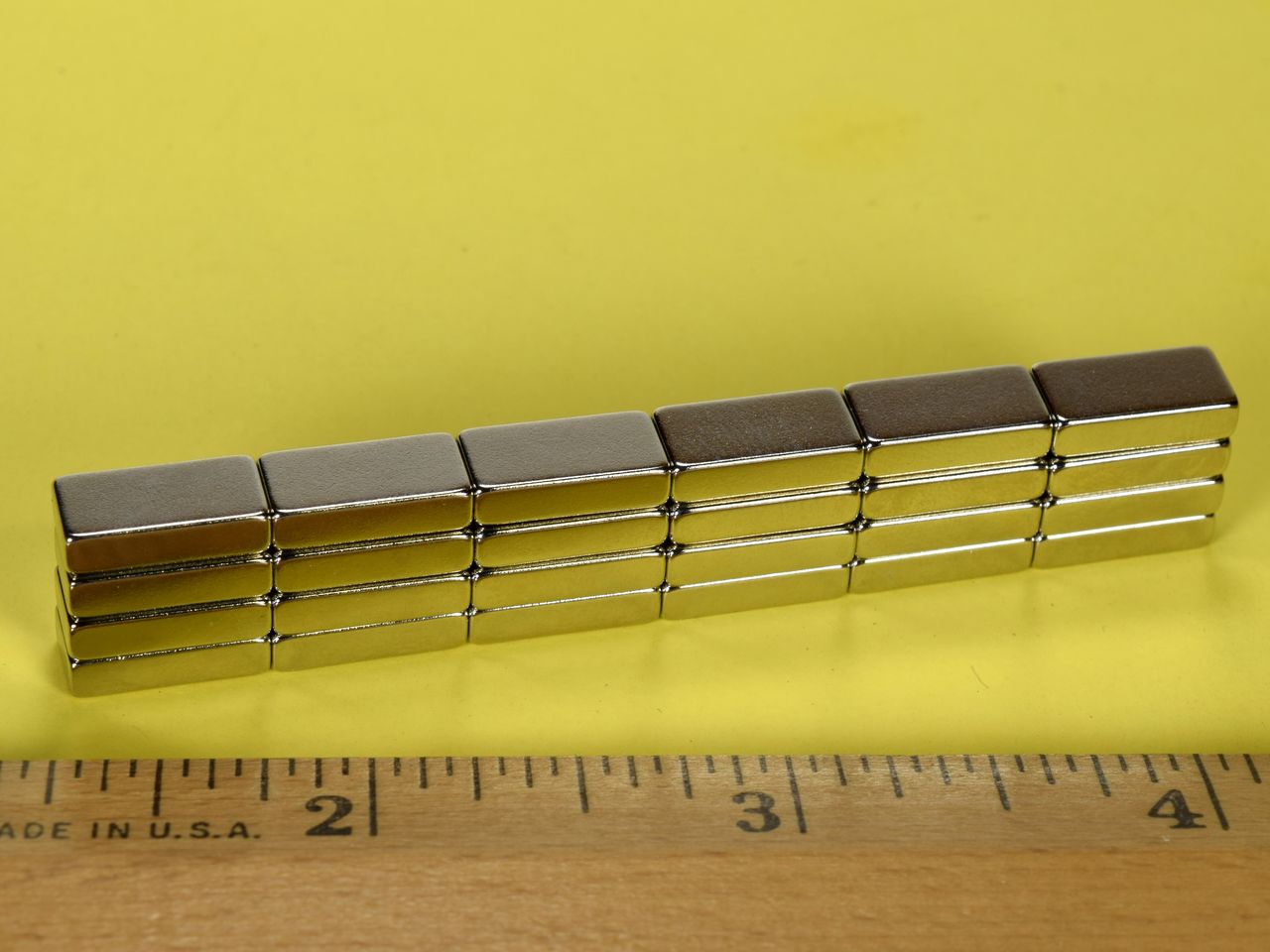

Our B428-N52 blocks are the same size as our B842 blocks, but they are magnetized through the 1/2" dimension. The poles are located on the 1/4" x 1/8" sides, which makes them attract each other "end-to-end" as shown in the bottom picture.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $0.97

Quantity:

Qty:

Price ea.	Qty
$0.97	1-24
$0.95	25-49
$0.93	50-99
$0.90	100-249
$0.88	250-499
$0.86	500-999
$0.84	1000-2499
$0.81	2500-4999
$0.79	5000-9999
$0.77	10000-24999
For pricing at higher order quantities, please email us!
