Home » NEODYMIUM BLOCK MAGNETS » B441

Description
Technical
Downloads

Dimensions: 1/4" x 1/4" x 1/16" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.0169 oz. (0.480 g)
Pull Force, Case 1: 1.43 lbs
Pull Force, Case 2: 4.86 lbs
Surface Field: 2704 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

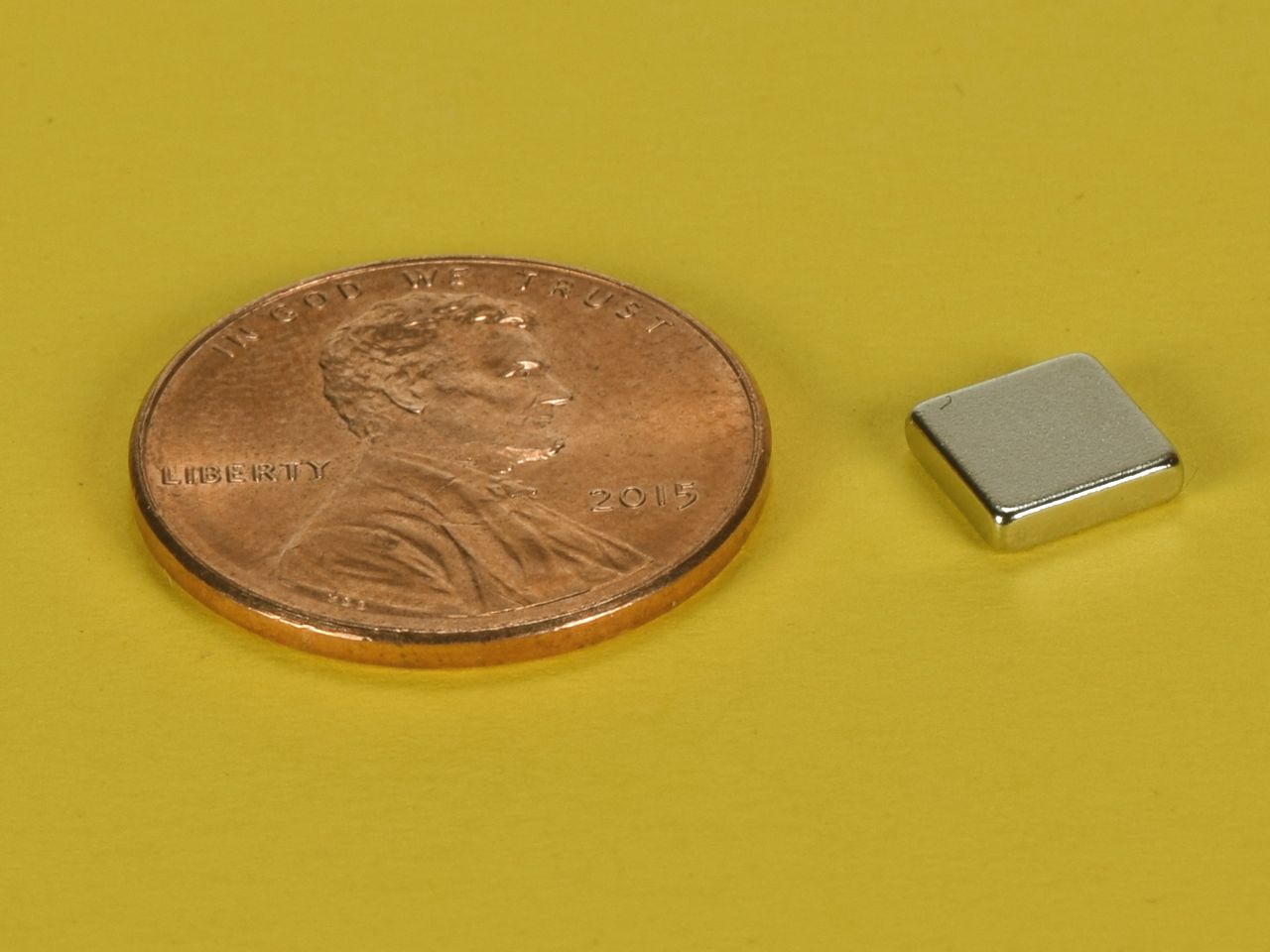

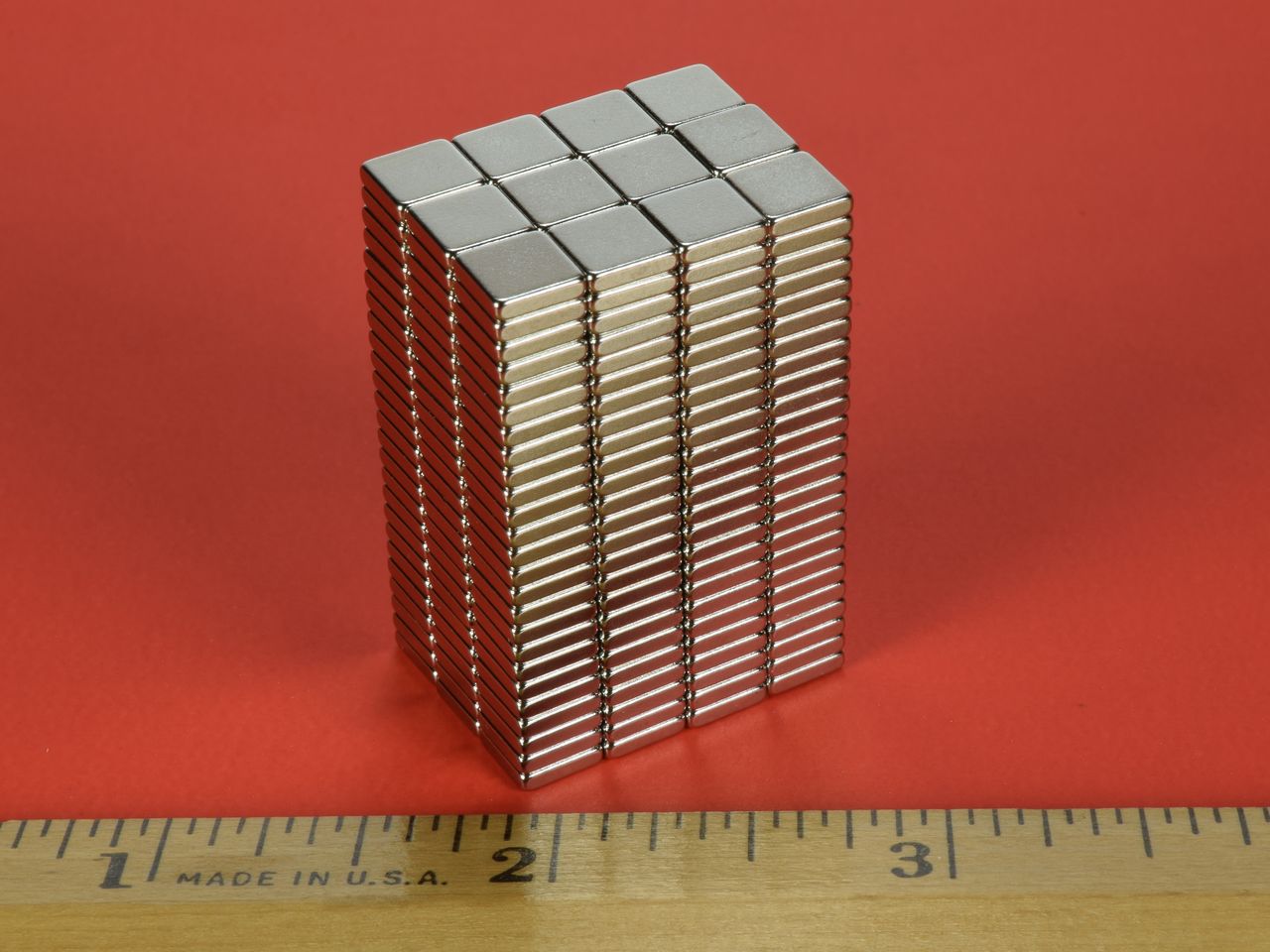

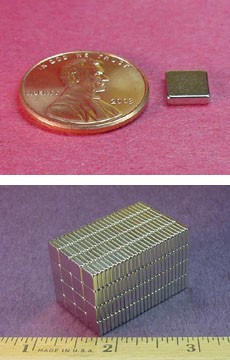

These small square blocks are great for many purposes. They are incredibly fun to play with just as toys, yet can be used for many magnet applications. They are great for fridge magnets, arts and crafts and decorative applications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

B441:
