B82X0 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 1/2" x 1/8" x 1" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.271 oz. (7.68 g)
Pull Force, Case 1: 5.41 lbs
Pull Force, Case 2: 5.41 lbs
Surface Field: 6536 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

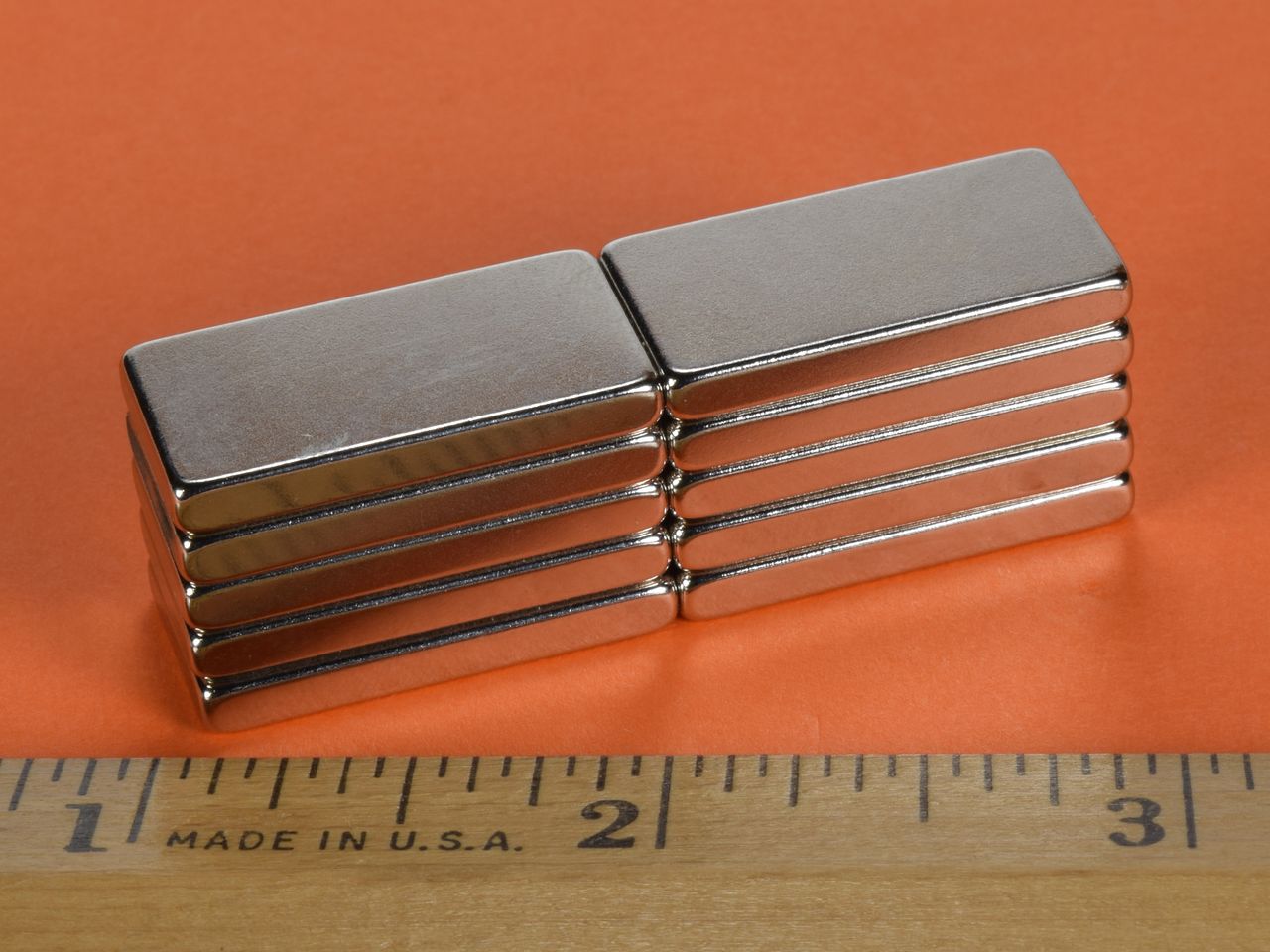

These blocks are the same dimensions as our popular BX082 blocks, but they are magnetized through the 1" dimension. This means the poles are located on the small (1/2" x 1/8") ends of the block, which makes them attract "end-to-end" as shown in the bottom picture.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $2.43

Quantity:

Qty:

Price ea.	Qty
$2.43	1-4
$2.38	5-9
$2.32	10-24
$2.27	25-49
$2.21	50-99
$2.16	100-249
$2.10	250-499
$2.05	500-999
$1.99	1000-2499
$1.94	2500-4999
For pricing at higher order quantities, please email us!
