• Dimensions: 3/4" x 3/4" x 1/8" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.305 oz. (8.64 g)
• Pull Force, Case 1: 13.53 lbs
• Pull Force, Case 2: 54.68 lbs
• Surface Field: 2125 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

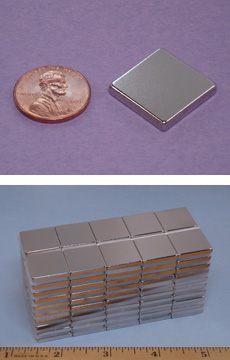

The BCC2-N52 is great for holding or hanging metal sheets or flat objects. Its low profile and compact design also make it perfectly suited for display signage, plaques, modular panels and more. We use several of these to hold a metal board to our filing cabinet here in the office. Nice and strong, but not too difficult to handle.

This size is also available in Grade N42 as part number BCC2.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.
