> BZ0X88 - Neodymium Block Magnet

BZ0X88 - Neodymium Block Magnet

bz0x88-neodymium-block-magnet--thumbnail-2

$57.87

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$57.87	1
$56.58	2	2%
$55.30	3-4	4%
$54.01	5-9	7%
$52.73	10-14	9%
$51.44	15-19	11%
$50.16	20-24	13%
$48.87	25-49	16%
$47.59	50-99	18%
$46.30	100-249	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3" x 1 1/2" x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 9.76 oz. (276.6 g)
Pull Force, Case 1: 122.3 lbs
Pull Force, Case 2: 267.5 lbs
Surface Field: 2777 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

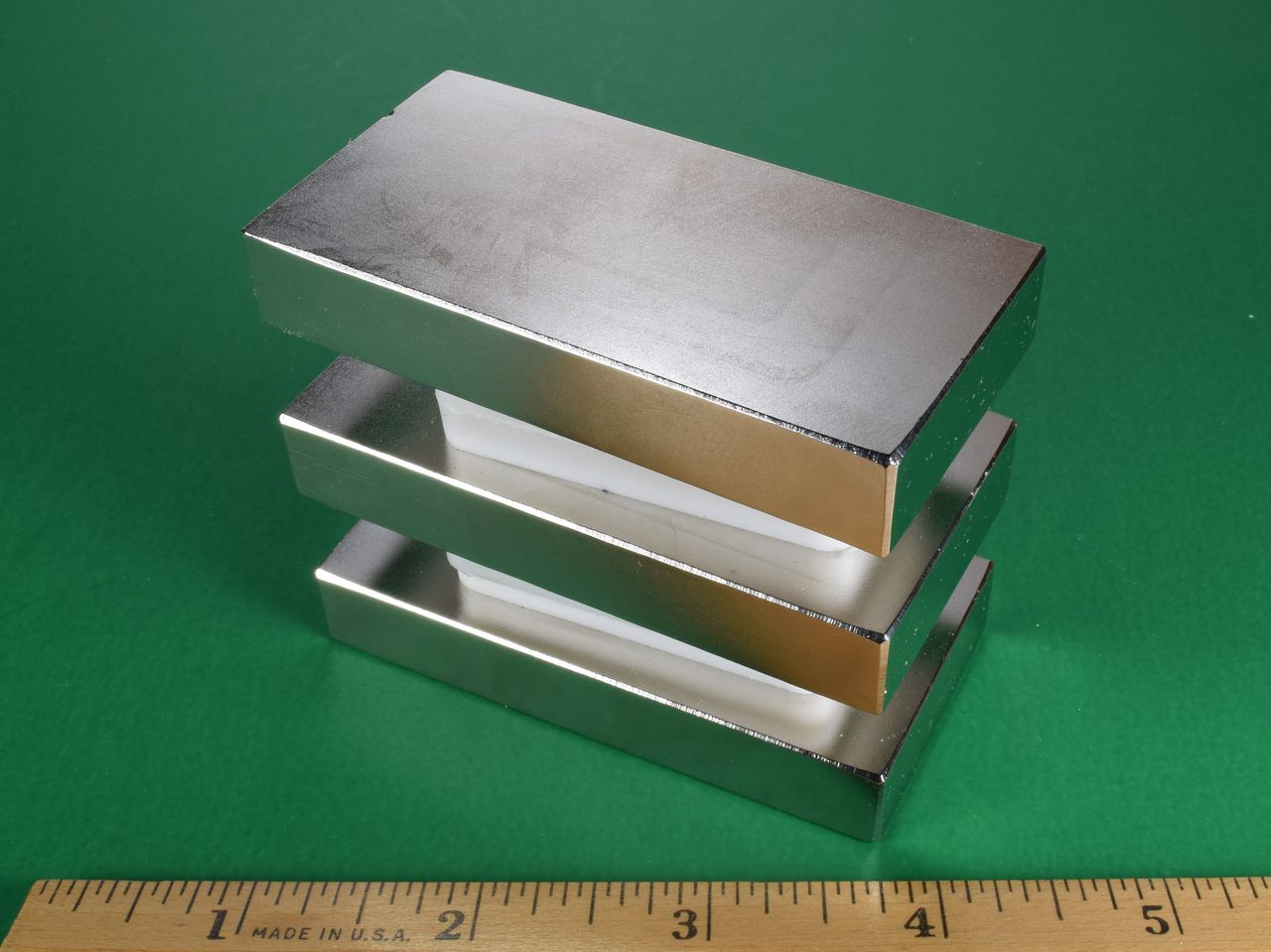

These 3" long blocks are super strong and sturdy. They are amazingly powerful, suitable for the most demanding applications. If attached to a flat, metal surface, they will be nearly impossible to remove. Handle with extreme caution as these incredible blocks are capable of pinching very hard.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
