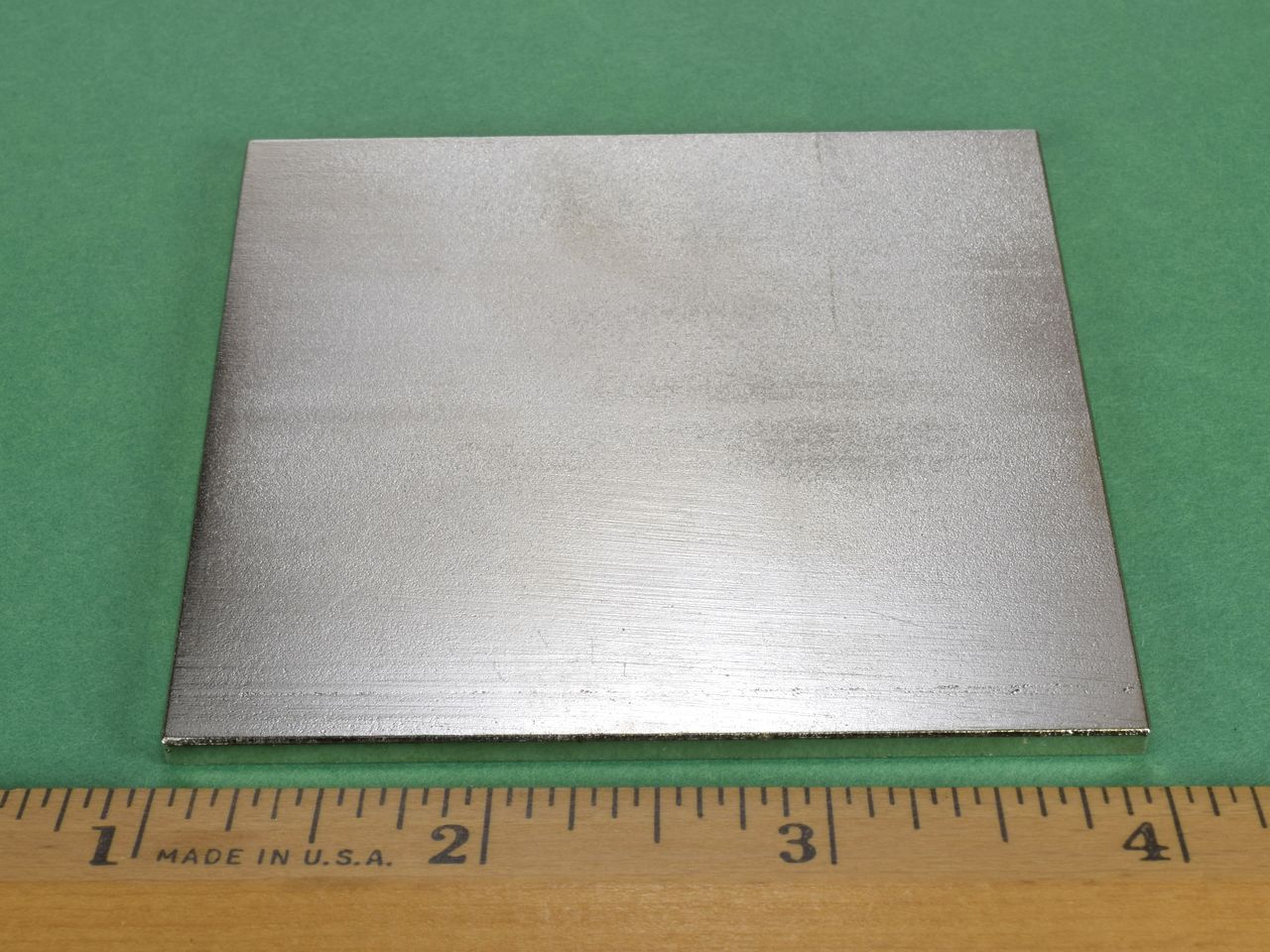

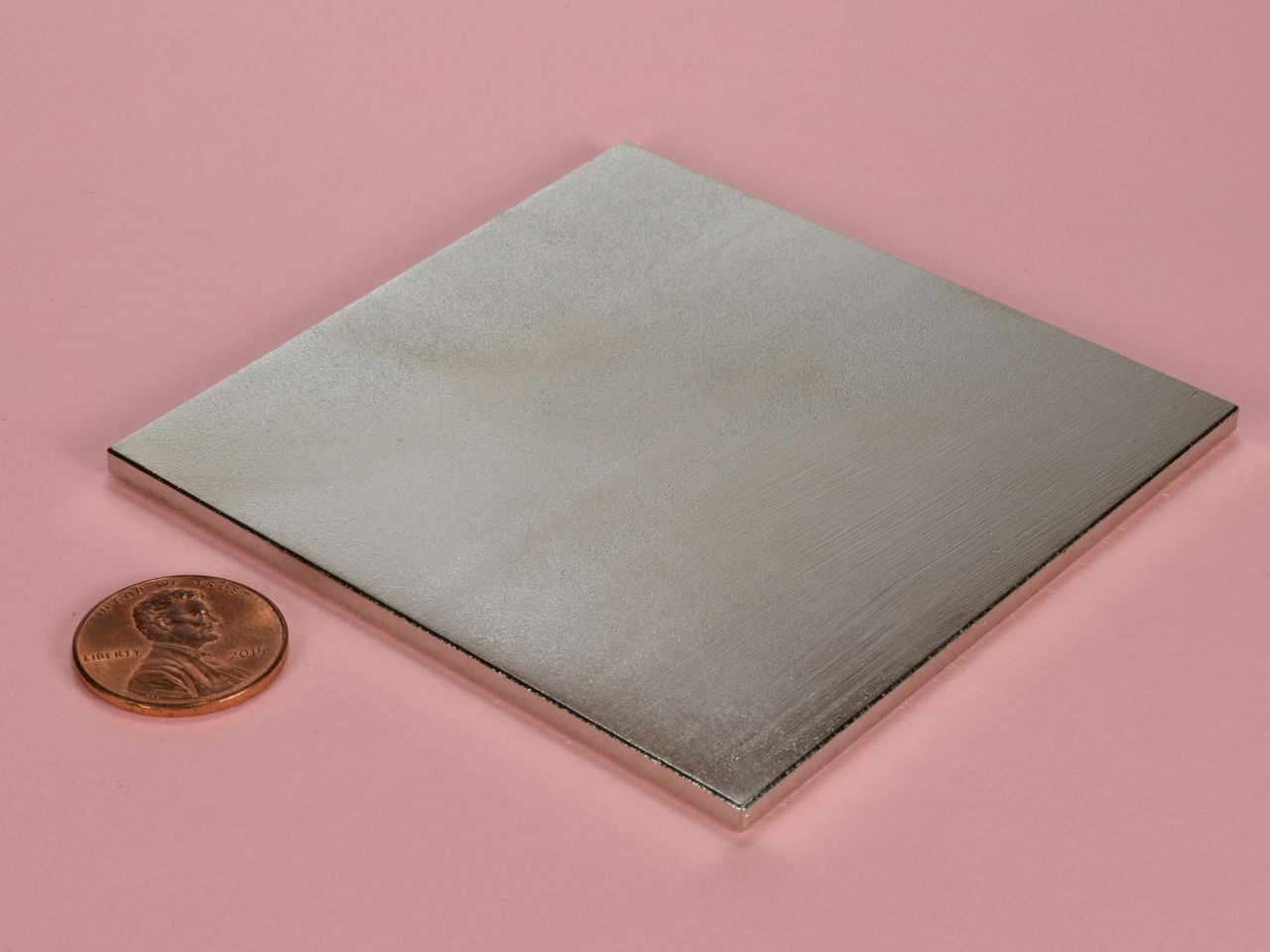

BZ0Z02-N52 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 3" x 3" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 4.86 oz. (138.3 g)
Pull Force, Case 1: 57.50 lbs
Pull Force, Case 2: 449.5 lbs
Surface Field: 554 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

This magnet is big, flat, and crazy strong! These blocks have an unbelievable amount of holding power. If they are attached to a flat, metal surface, they will be very difficult to remove. Handle with caution!

GROUND SHIPPING ONLY on this item.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $43.34

Quantity:

Qty:

Price ea.	Qty
$43.34	1
$42.38	2
$41.41	3-4
$40.45	5-6
$39.49	7-9
$38.52	10-24
$37.56	25-49
$36.60	50-99
$35.63	100-249
$34.67	250-499
For pricing at higher order quantities, please email us!
