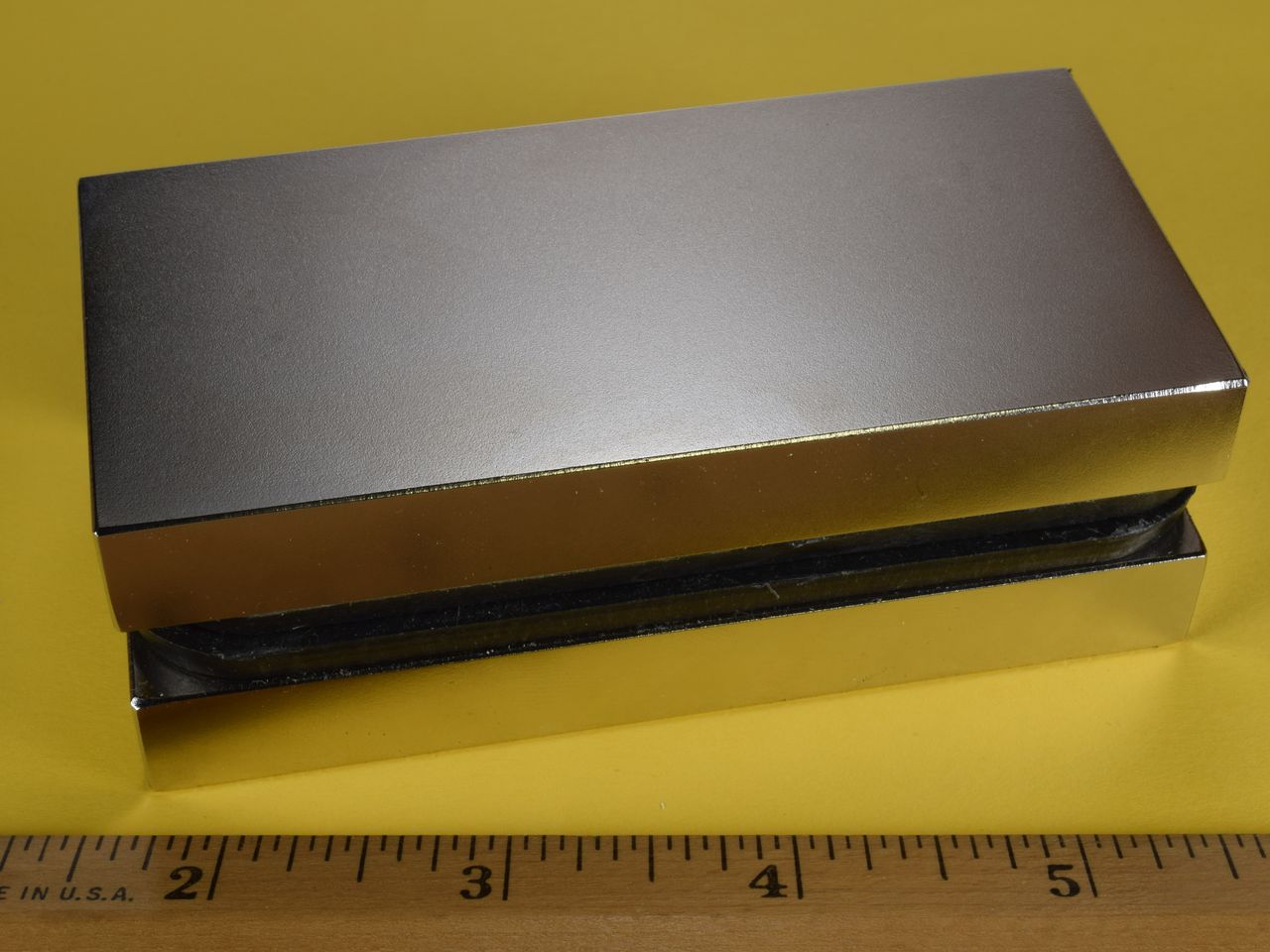

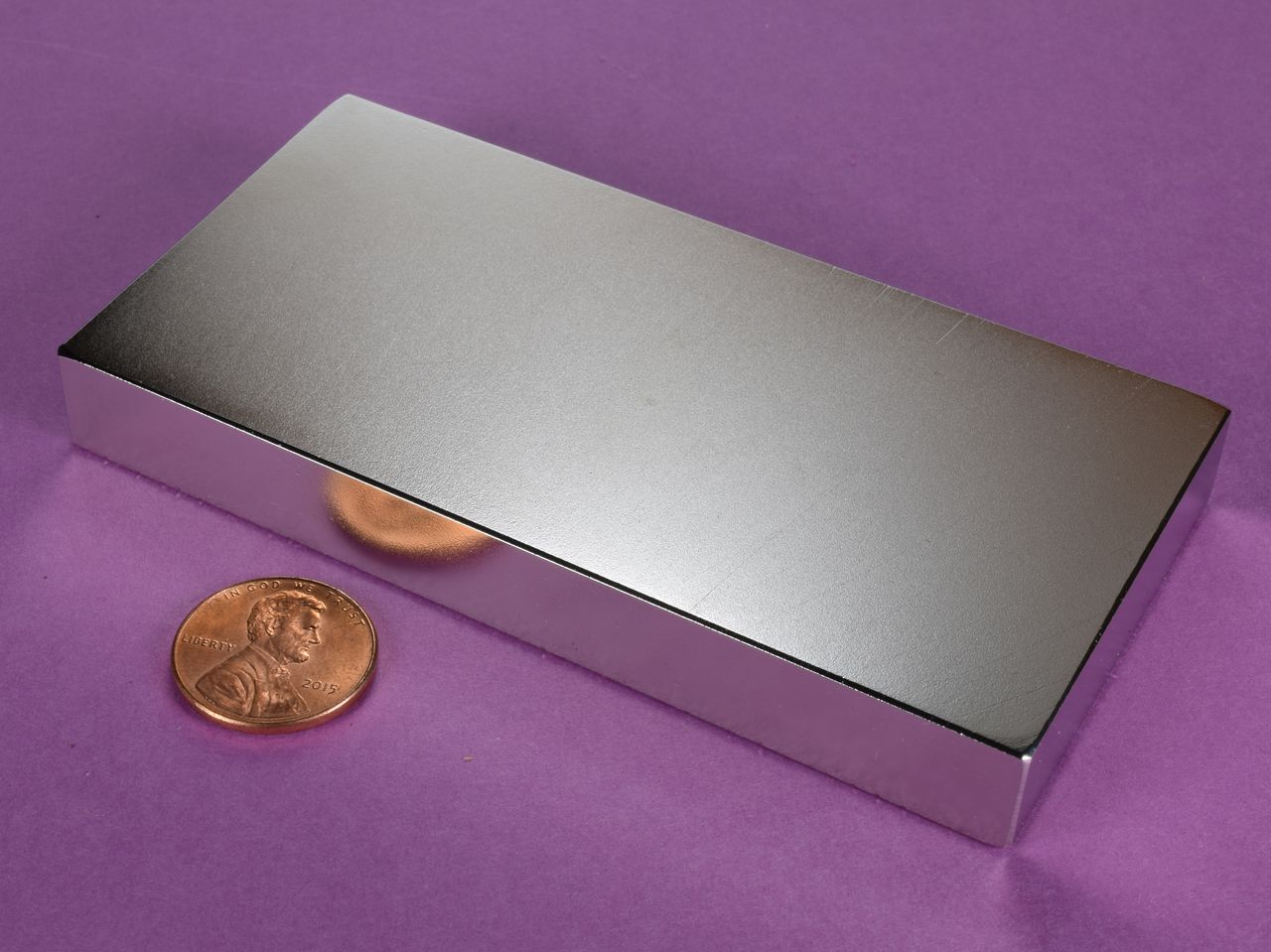

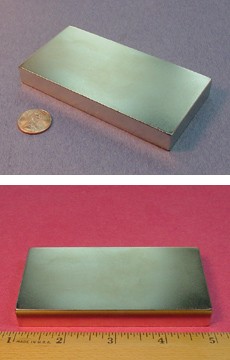

Dimensions: 4" x 2" x 1/2" thick

Tolerances: ±0.004" x ±0.004" x ±0.004"

Material: NdFeB, Grade N42

Plating/Coating: Ni-Cu-Ni (Nickel)

Magnetization Direction: Thru Thickness

Weight: 17.34 oz. (491.7 g)

Pull Force, Case 1: 158.70 lbs

Pull Force, Case 2: 366.70 lbs

Surface Field: 2185 Gauss

Max Operating Temp: 176ºF (80ºC)

Brmax: 13,200 Gauss

BHmax: 42 MGOe

These huge blocks *MUST* be handled with extreme caution. These giant blocks are favorites of magicians and illusionists. They are incredibly powerful and should only be purchased by users familiar with the proper handling of large neodymium magnets. Two of these stuck together are virtually impossible to separate by hand. They can pinch and cause physical harm if they are not handled with extreme care and respect. You must read and understand our Neodymium Magnet Safety Page before ordering these magnets. You must also agree to our Terms and Conditions prior to purchasing. THESE ARE DANGEROUS!

GROUND SHIPPING ONLY on this item.

This size is also available in grade N52 as part number BZX0Y08-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
