• Dimensions: 3/16" dia. x 3/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0449 oz. (1.27 g)
• Pull Force, Case 1: 2.48 lbs
• Pull Force, Case 2: 2.62 lbs
• Surface Field: 7179 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

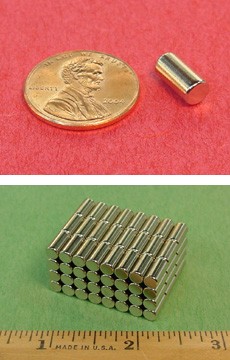

The D36-N52 is a compact and versatile little magnet. They are small and easy to handle, but strong enough to hold even the largest of art projects to the fridge. They are also an excellent choice for use on magnetic bulletin boards. Tons of possibilities!

This size is also available diametrically magnetized as the D36DIA and in grade N42 as part number D36.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.
