Home » GRADE N50/N52 MAGNETS » D41G-N52

Description
Technical
Downloads

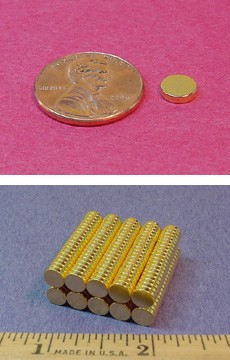

Dimensions: 1/4" dia. x 1/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni-Au (Gold)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0133 oz. (0.377 g)
Pull Force, Case 1: 1.47 lbs
Pull Force, Case 2: 4.42 lbs
Surface Field: 3309 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

These strong, gold plated discs are a great choice for magnetic therapy applications. They are also excellent decorative magnets for arts and crafts projects. Very versatile and attractive little disc magnets.

This size is also available in grade N42 with silver Nickel plating as part number D41, in grade N52 with silver Nickel plating as part number D41-N52 and in High Temp grade N42SH as part number D41SH.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

D41G-N52:
Quantity:
