Home » NEODYMIUM DISC MAGNETS » D601

Description
Technical
Downloads

Dimensions: 3/8" dia. x 1/32" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0150 oz. (0.424 g)
Pull Force, Case 1: 0.85 lbs
Pull Force, Case 2: 7.40 lbs
Surface Field: 1085 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

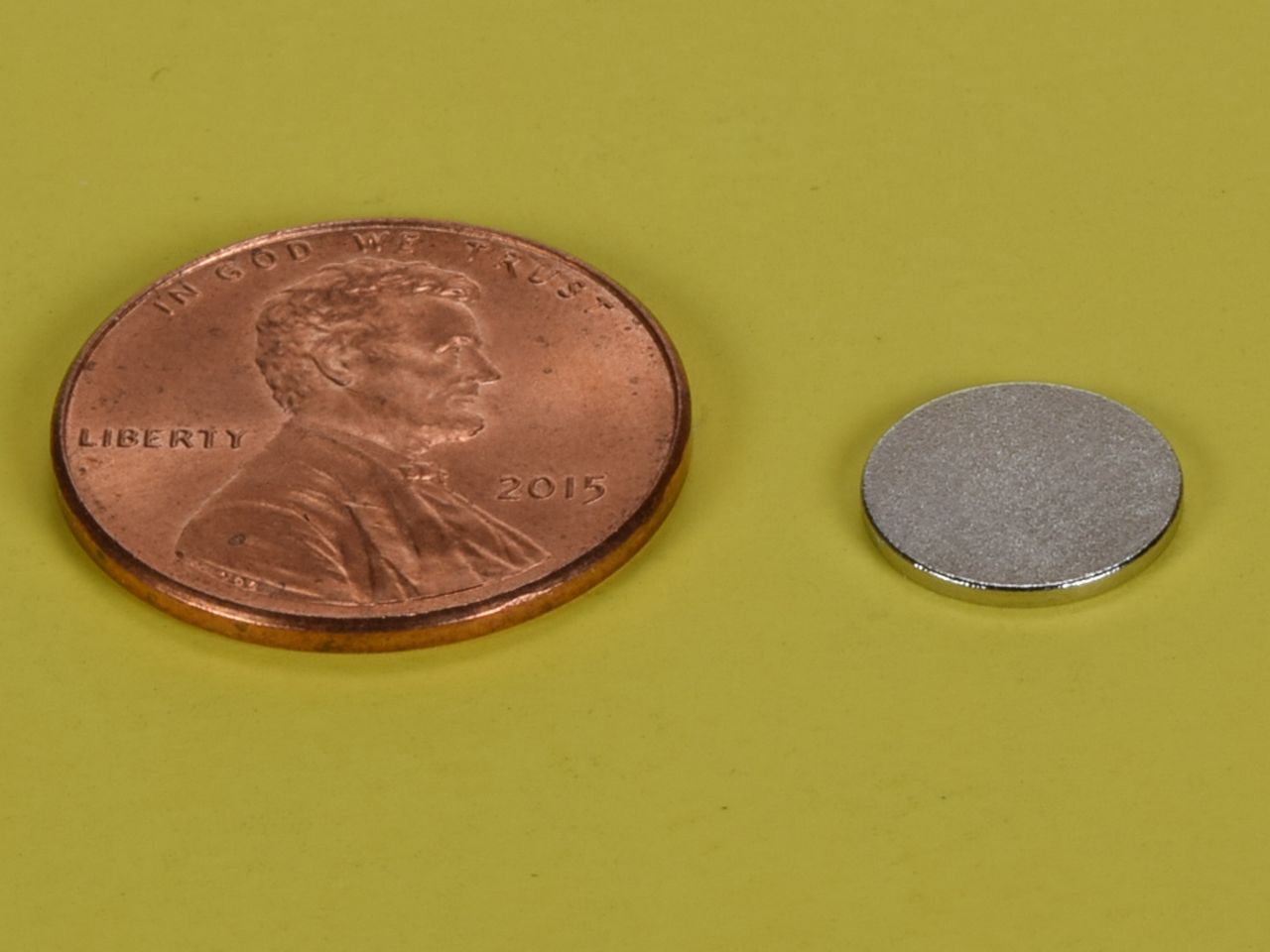

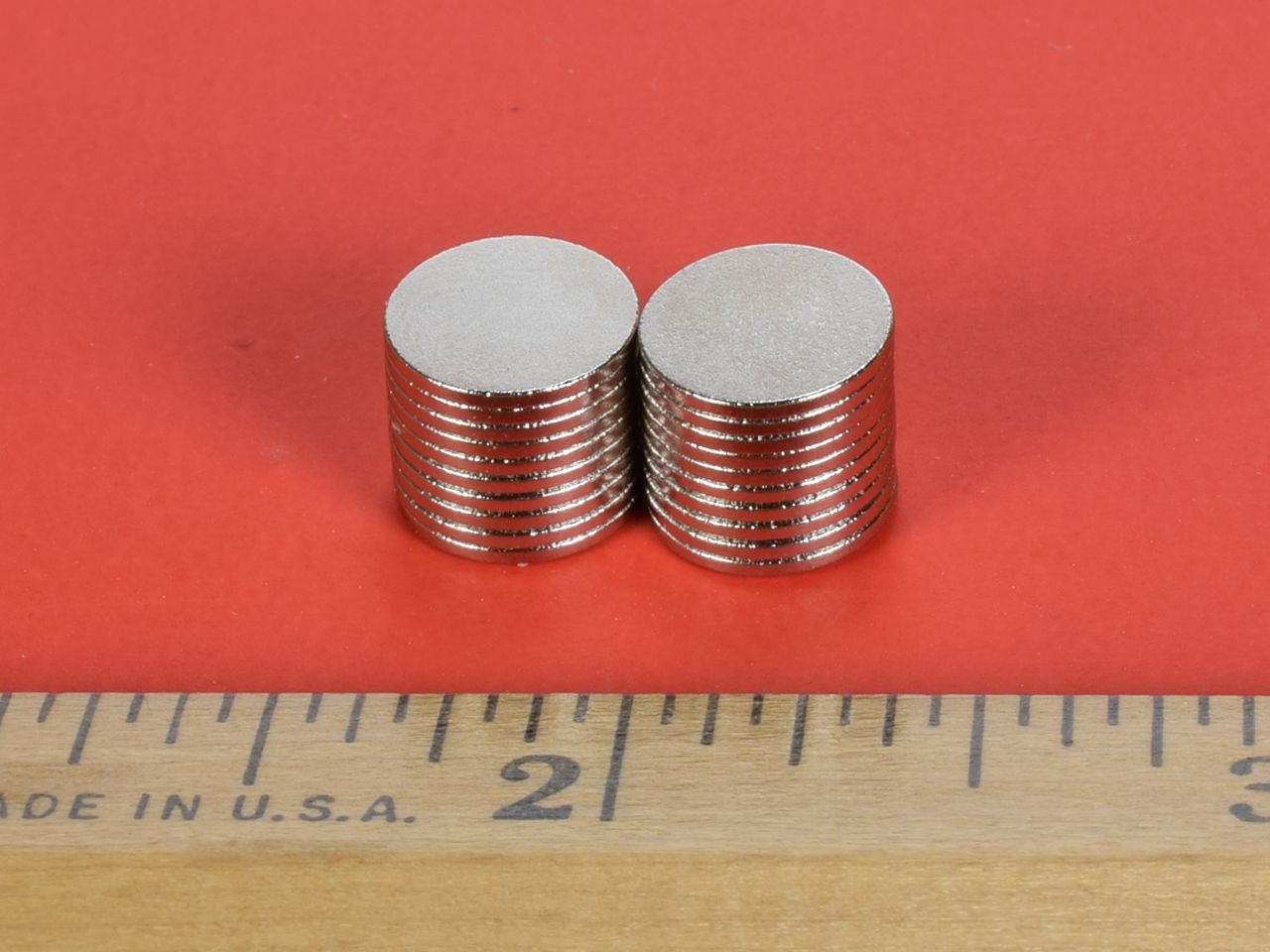

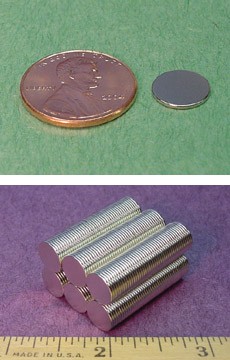

The D601 is another of our ultra-thin neodymium discs. They are very popular for arts and crafts projects, as they are very strong for their size and they can be easily concealed.

This size is also available in grade N52 as part number D601-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

D601:
Quantity:
