D61G-N52 - Neodymium Disc Magnet

Description
Technical
Downloads

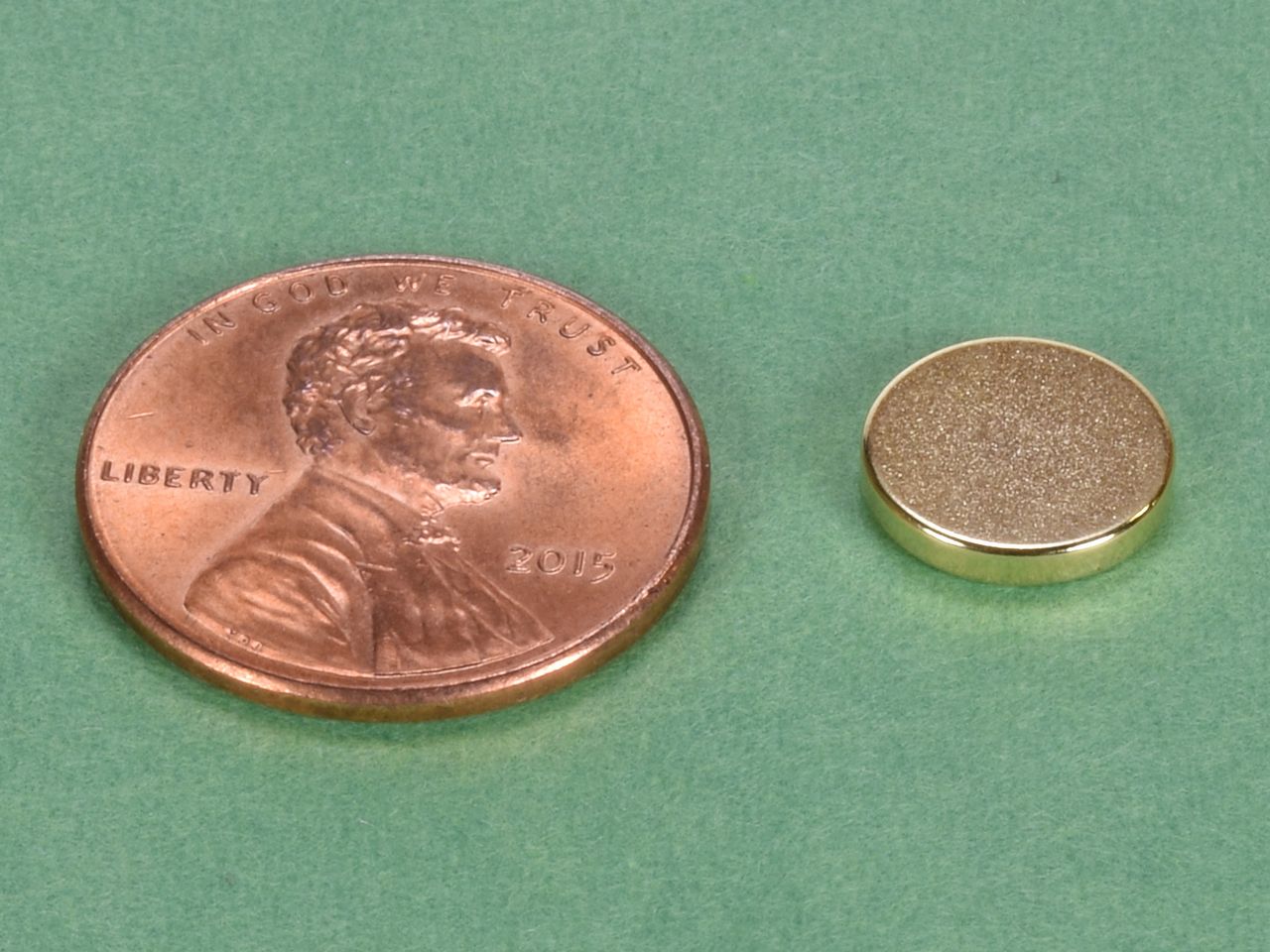

Dimensions: 3/8" dia. x 1/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni-Au (Gold)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0299 oz. (0.849 g)
Pull Force, Case 1: 2.62 lbs
Pull Force, Case 2: 10.65 lbs
Surface Field: 2340 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

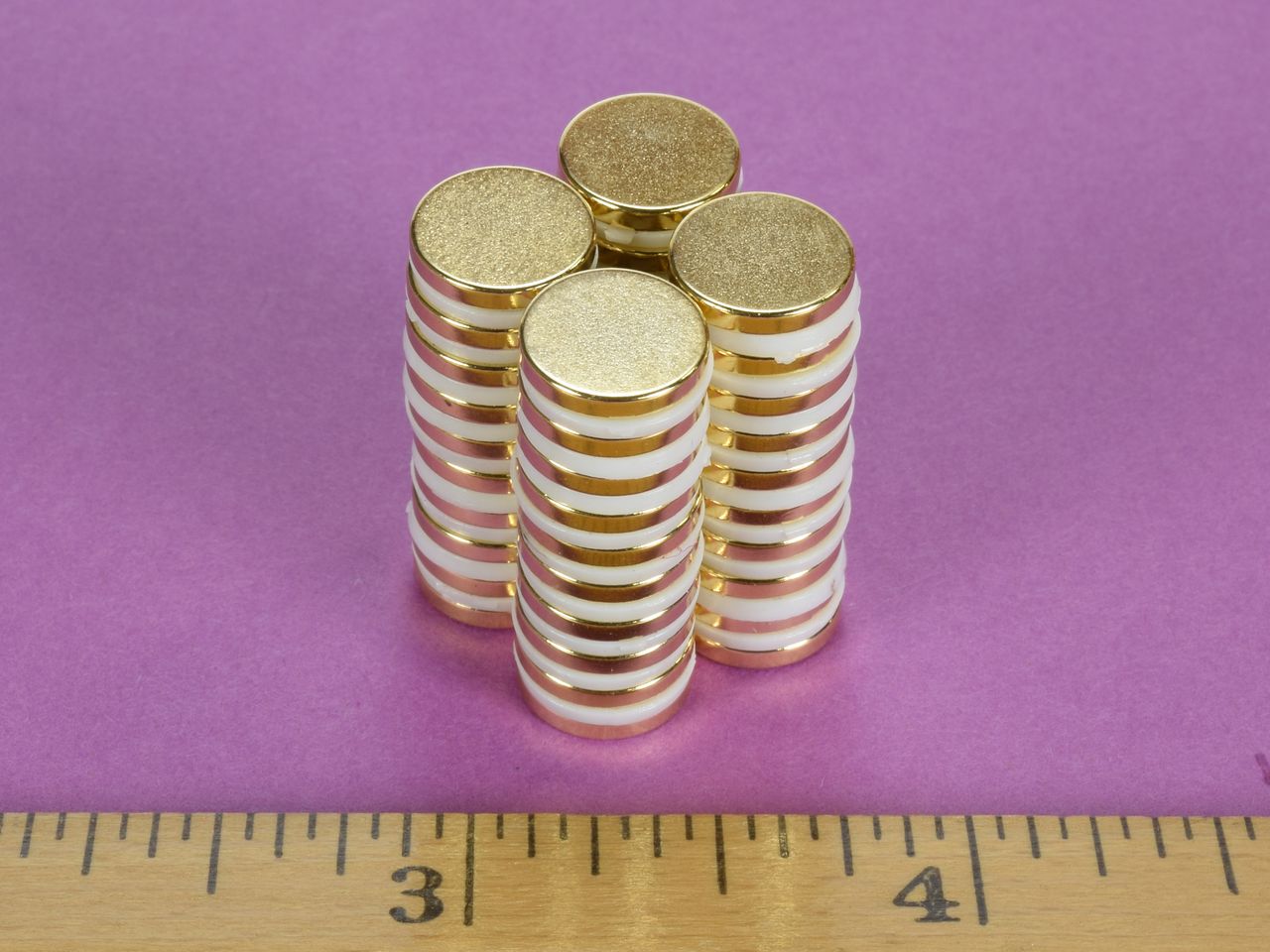

These powerful discs are gold plated over top of our standard nickel plating, and are grade N52. Not only do they look neat, but they are incredibly strong. Great for decorative uses.

This size is also available in grade N42 with our standard Nickel plating as part number D61 and in grade N52 as part number D61-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $0.52

Quantity:

Qty:

Price ea.	Qty
$0.52	1-49
$0.51	50-99
$0.50	100-249
$0.48	250-499
$0.47	500-999
$0.46	1000-2499
$0.45	2500-4999
$0.43	5000-9999
$0.42	10000-24999
$0.41	25000-49999
For pricing at higher order quantities, please email us!
