Home » NEODYMIUM CYLINDER MAGNETS » D6X0

Description
Technical
Downloads

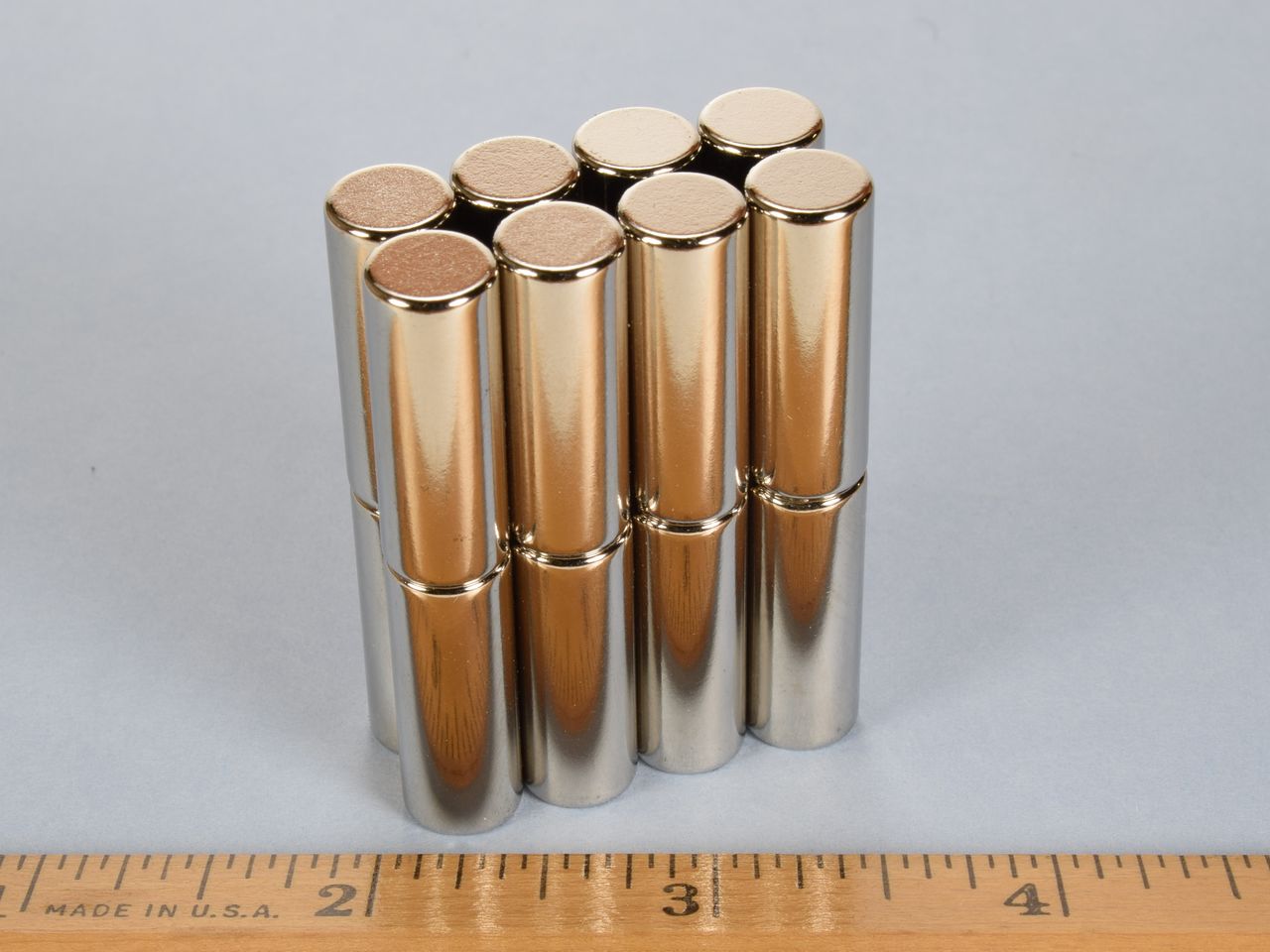

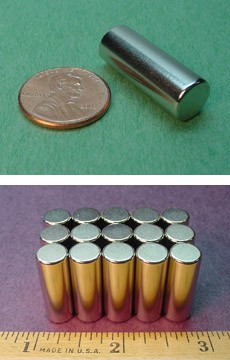

Dimensions: 3/8" dia. x 1" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.479 oz. (13.6 g)
Pull Force, Case 1: 9.10 lbs
Pull Force, Case 2: 9.10 lbs
Surface Field: 6487 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

This is an excellent mid-sized cylinder. This size is very strong, yet surprisingly easy to handle. Great for medium duty (medium by strong neodymium magnet standards) applications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
