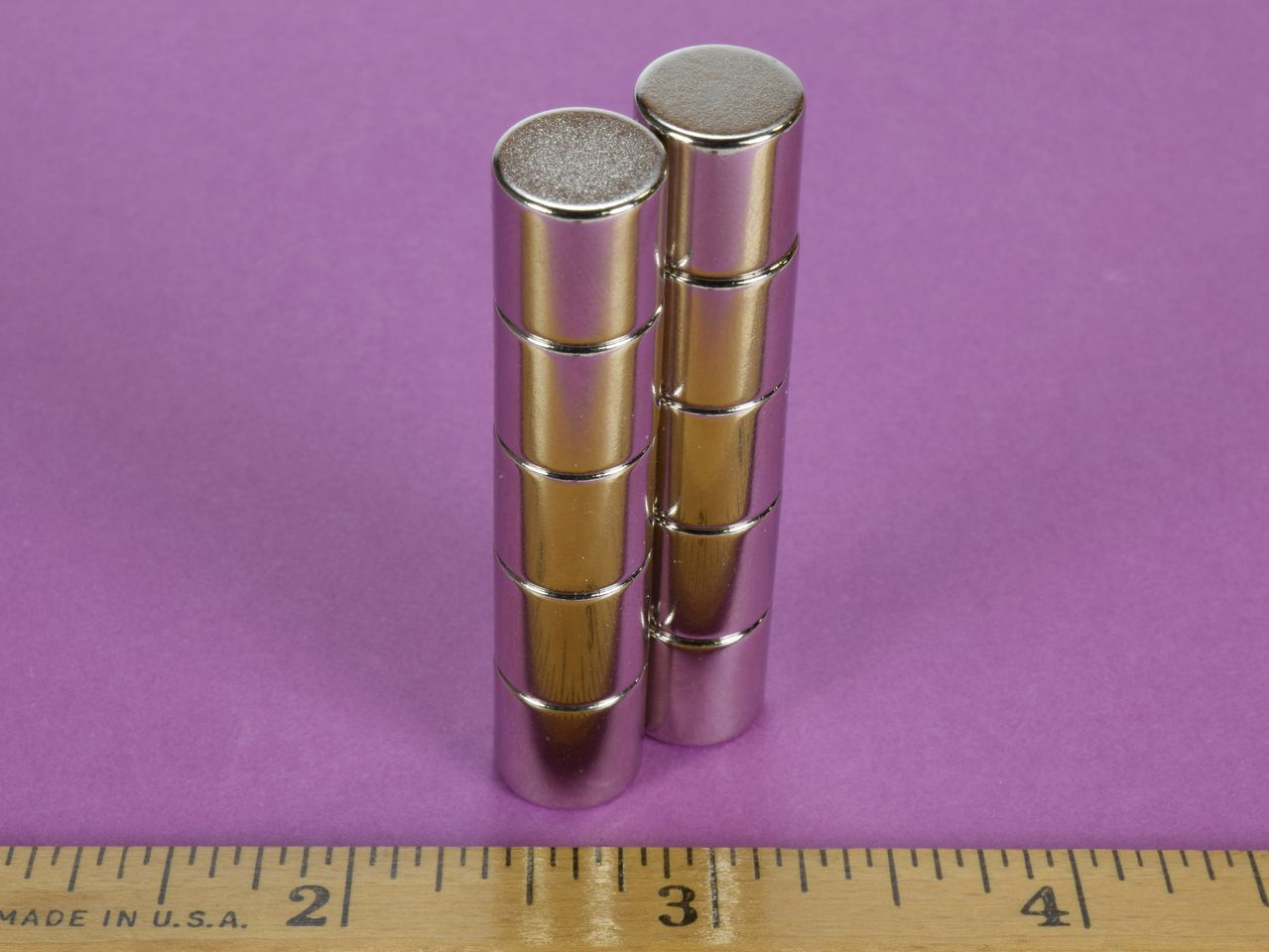

D77-N52 - Neodymium Cylinder Magnet

Description
Technical
Downloads

Dimensions: 7/16" dia. x 7/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.285 oz. (8.08 g)
Pull Force, Case 1: 13.77 lbs
Pull Force, Case 2: 15.75 lbs
Surface Field: 6619 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

These incredibly strong cylinder magnets are useful for a wide range of applications from simple refrigerator magnets to Hall Effect sensor triggers. The D77-N52 magnets are deceptively powerful for their size.

This size also available in Grade N42 as part number D77.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $2.81

Quantity:

Qty:

Price ea.	Qty
$2.81	1-4
$2.75	5-9
$2.69	10-24
$2.62	25-49
$2.56	50-99
$2.50	100-249
$2.44	250-499
$2.37	500-999
$2.31	1000-2499
$2.25	2500-4999
For pricing at higher order quantities, please email us!
