DC6DIA
DC6DIA
  • Description
  • Technical
  • Downloads
  • Video

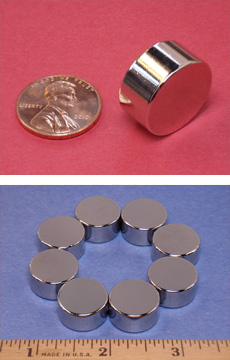

These diametrically magnetized discs are very powerful.  They are magnetized perpendicular to the axis of the cylinder, so they will attract "side-to-side" with great force.  They "feel" stronger and are a bit more difficult to handle than the axially magnetized cylinders of the same size.

This size is also available axially magnetized as part number DC6 and in Grade N52 with a Black Nickel plating as part number DC6B-N52.


Case1 Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
Case2 Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
Case3 Pull Force, Case 3 vs. distance: Magnet to Magnet.
Case4 Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
BH Curves View B-H curves for this magnet.

SpecSheetClick here to download a PDF Specification Sheet.
DrawingClick here to download a PDF drawing of this product.
CertClick here to download a Certificate of Compliance for this product.
RoHSClick here to download a RoHS Statement of Compliance for this product.
MSDSClick here to download a Material Safety Data Sheet (MSDS) for this product.
STEPClick here to download a .STEP file (3D model).
IGSClick here to download an .IGS file (3D model).



   Download the free Adobe Acrobat Reader

 Price: $5.63

Quantity:


Price ea.Qty
$5.63 1
$5.50 2-4
$5.38 5-9
$5.25 10-24
$5.13 25-49
$5.00 50-99
$4.88 100-249
$4.75 250-499
$4.63 500-999
$4.50 1000-2500
For pricing at higher order quantities,
please email us!
