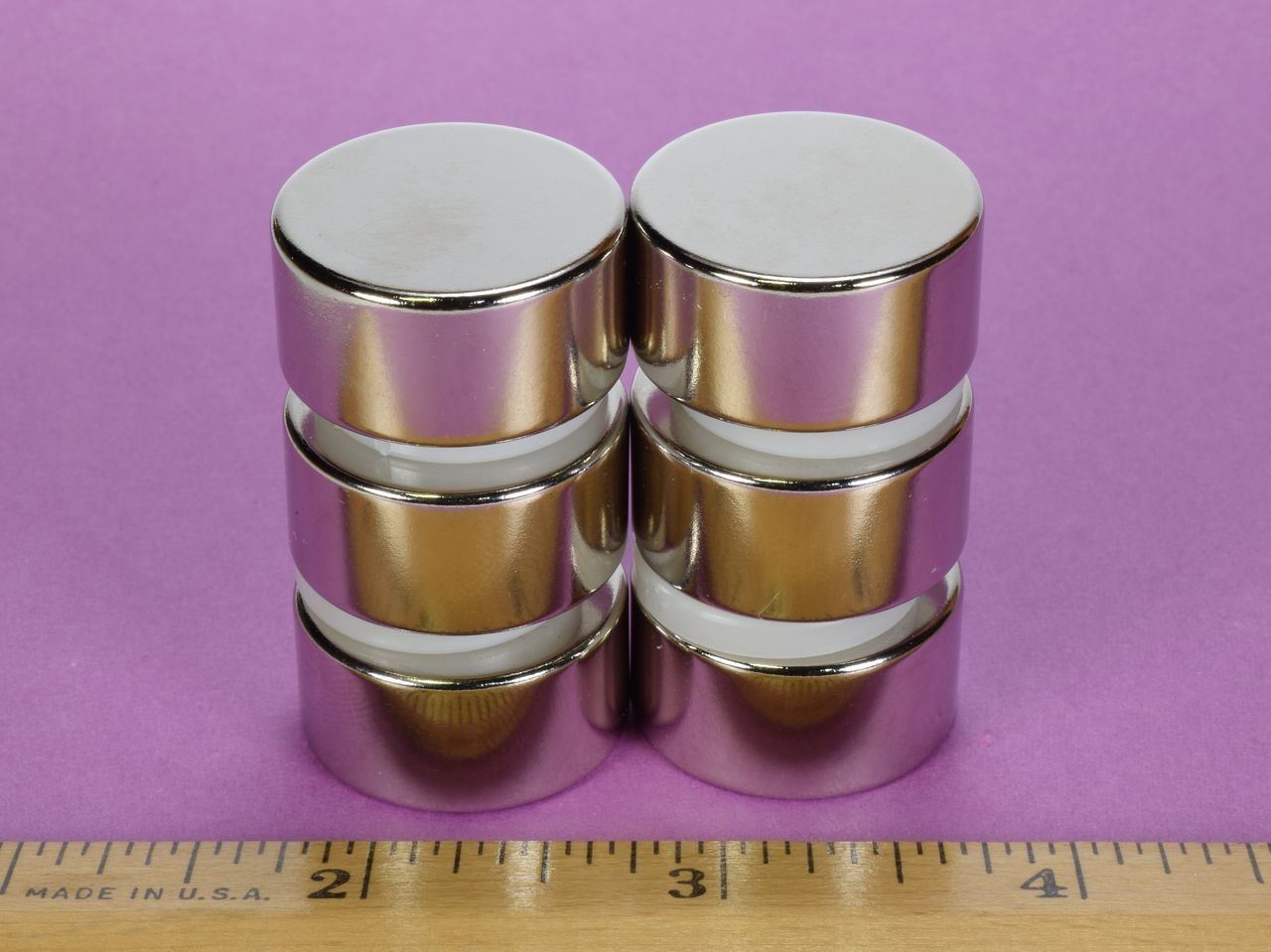

DX08 - Neodymium Disc Magnet

Description
Technical
Downloads
Video

Dimensions: 1" dia. x 1/2" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.70 oz. (48.3 g)
Pull Force, Case 1: 44.00 lbs
Pull Force, Case 2: 60.80 lbs
Surface Field: 4667 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These strong discs are very powerful and will pinch and do harm if they are not handled properly. One magnet is capable of holding over 40 lbs of steel!

This size is also available in grade N52 with Black Nickel plating as part number DX08B-N52 as well as diametrically magnetized as part number DX08DIA.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $10.80

Quantity:

Qty:

Price ea.	Qty
$10.80	1
$10.56	2-4
$10.32	5-9
$10.08	10-24
$9.84	25-49
$9.60	50-99
$9.36	100-249
$9.12	250-499
$8.88	500-999
$8.64	1000-2499
For pricing at higher order quantities, please email us!
