RC22CS-P - Neodymium Ring Magnet

• Dimensions: 3/4" od x 1/8" thick with countersunk hole for #8 screw
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.424 oz. (12.02 g) (per pair)
• Pull Force, Case 1: 8.68 lbs
• Pull Force, Case 2: 29.25 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Note: As of February 2010 the RC22CS-P is now designed to accept #8 screws.

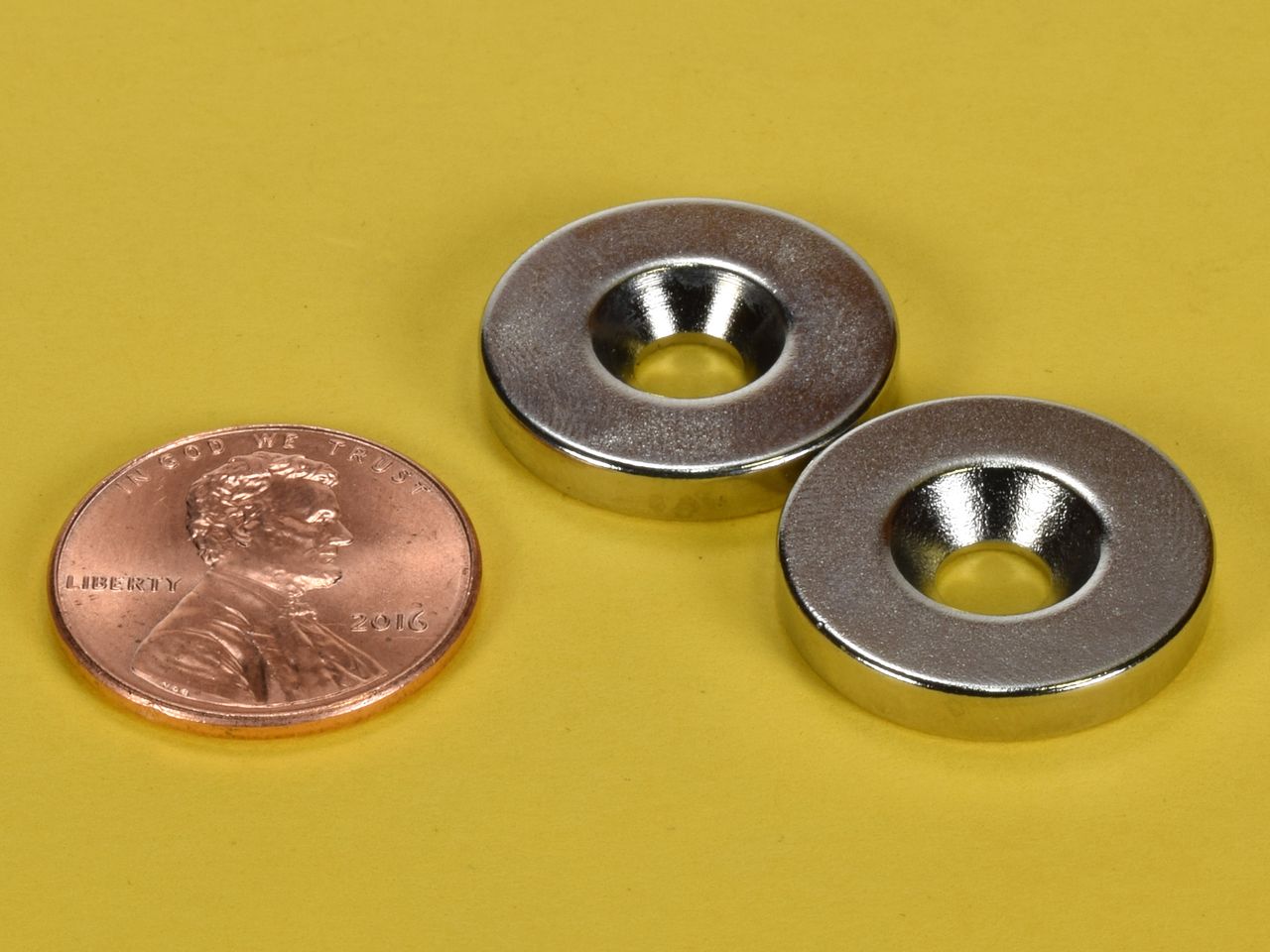

Strong countersunk ring magnets sized specifically for #8 flat-head screws.

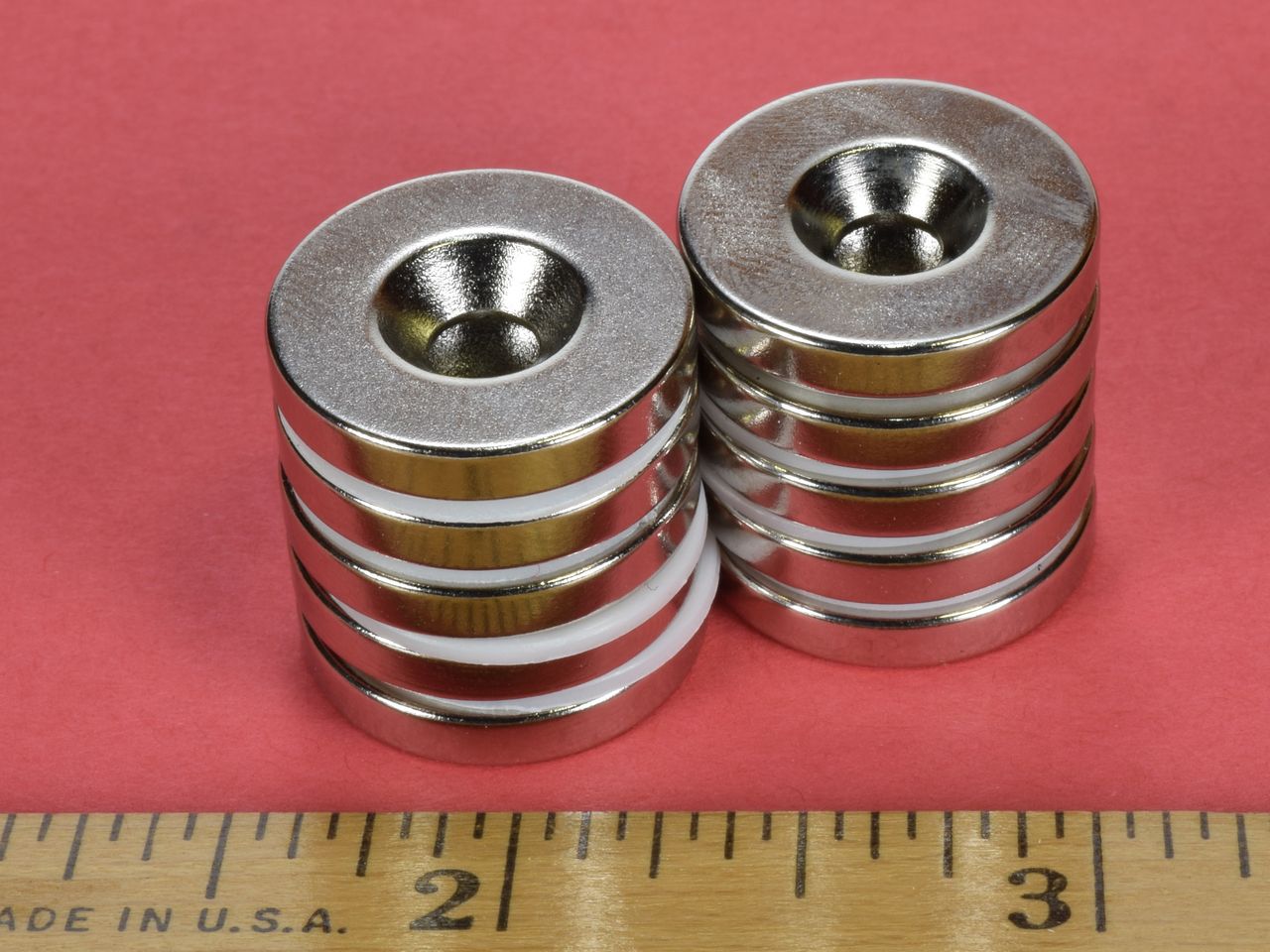

These rings are sold by the pair. One will have the north pole on the side with the large end of the hole and one will have the south pole on that side, so they will attract each other when they are screwed in.

These countersunk rings can be used for a wide range of applications including door closures and tool hangers.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
