• Dimensions: 1 1/2" od x 1/2" id x 1/4" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 1.70 oz. (48.3 g)
• Pull Force, Case 1: 32.97 lbs
• Pull Force, Case 2: 109.1 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

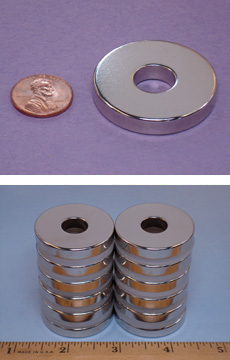

The RX884 is uniquely sized and very strong! The 1/4" thickness and the wide inner diameter of this magnet make for a powerful ring that is perfectly suited for use in many specialized scientific, industrial and medical applications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.
