• Dimensions: 1/4" diameter
• Tolerances: ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: NiCuNi (Nickel)
• Weight: 0.035 oz (1.01 g)
• Pull Force, Case 1: 1.63 lbs
• Pull Force, Case 2: 1.96 lbs
• Surface Field: 8815 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

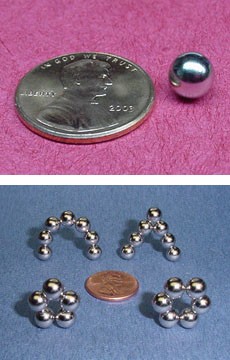

These 1/4" spheres are one of our favorite magnets. If you"ve never experienced a magnet shaped like a sphere, you could be in for a treat. They can be combined with other magnets to form sculptures or magnetic jewelry. Kids love to play with these things. The spheres behave in strange ways around other magnets. They are some of the best fun you can have with neodymium magnets.



	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
