Home » SURPLUS NEODYMIUM MAGNETS » ZD3

Description

Dimensions: 12.6mm dia. x 5mm thick
Tolerances: ±0.05mm x ±0.04mm
Material: NdFeB, Grade N35
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.164 oz. (4.64 g)
Pull Force, Case 1: 7.74 lbs
Pull Force, Case 2: 13.25 lbs
Surface Field: 3761 Gauss
Brmax: 12,100 Gauss
BHmax: 35 MGOe

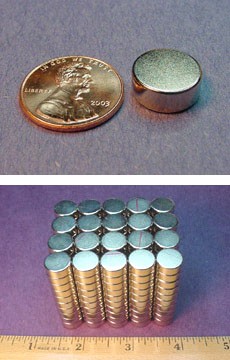

Approximately 1/2" dia. x 3/16" thick. Strong mid-sized magnets at a surplus price. Notice in the lower picture on the left that the South pole is marked with a red stripe on each magnet.

ZD3:
Quantity:
