BC82CS-N - Neodymium Block Magnet

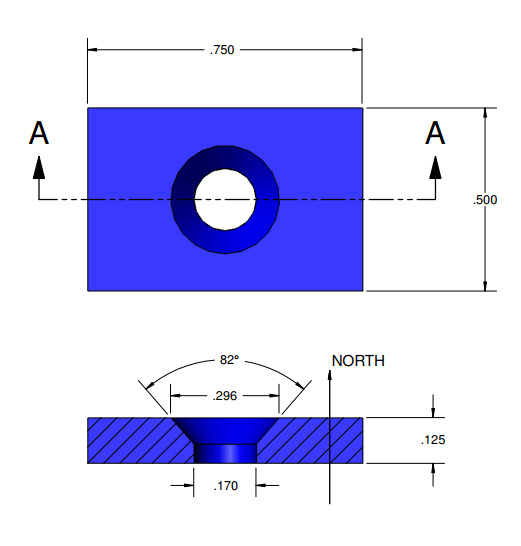

• Dimensions: 3/4" x 1/2" x 1/8" thick with countersunk hole for #6 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.184 oz. (5.23 g)
• Pull Force, Case 1: 7.36 lbs
• Pull Force, Case 2: 25.61 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

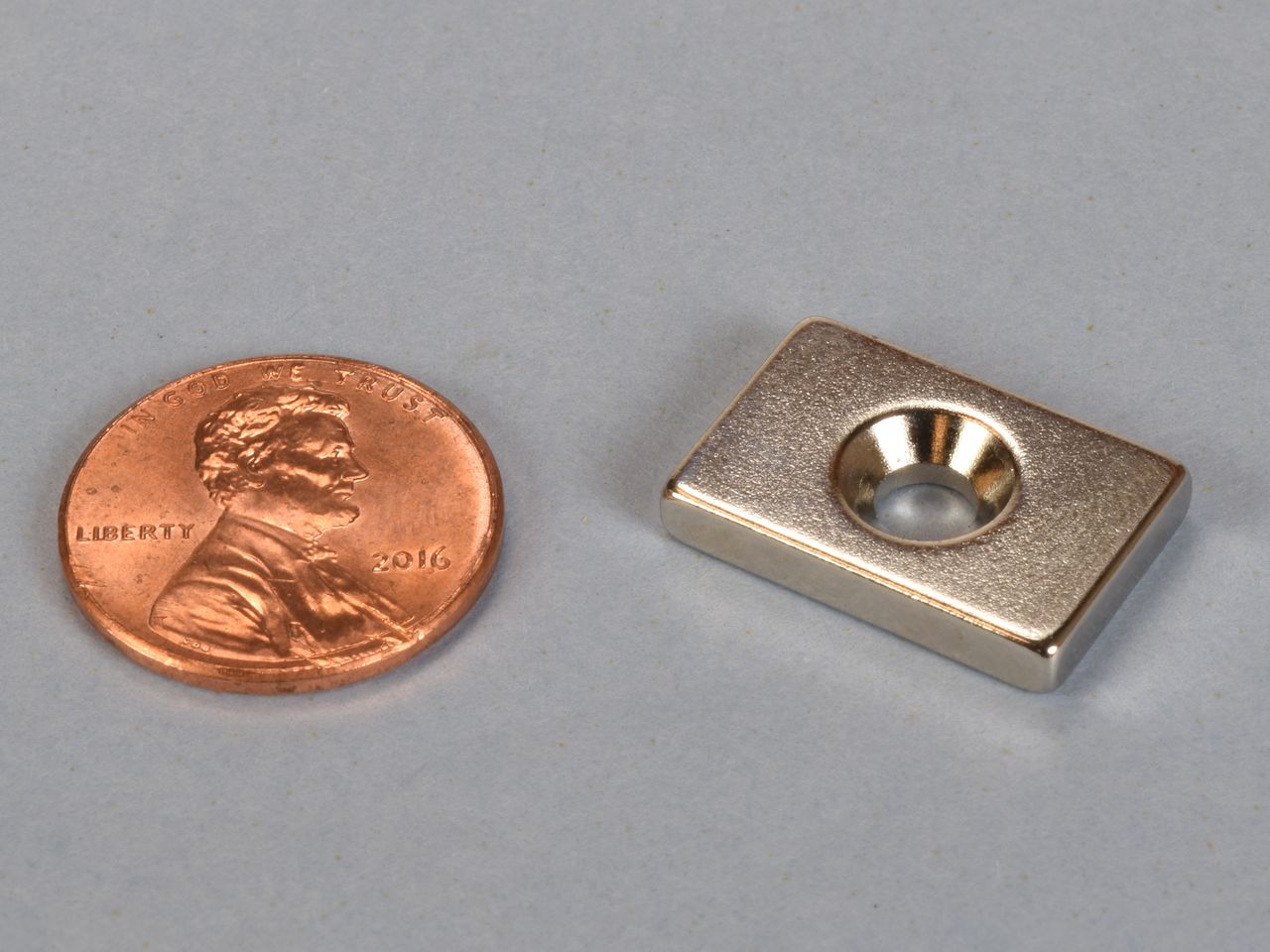

Here we offer a 3/4" x 1/2" in 1/8" thick, rectangular block magnet with a hole for a #6 flathead screw to allow for easy fastening. The BC82CS-N is magnetized with the north pole on the countersunk side.

These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers.
