BX042SH

Description
Technical
Downloads

Dimensions: 1" x 1/4" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42SH
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.136 oz. (3.84 g)
Pull Force, Case 1: 7.34 lbs
Pull Force, Case 2: 21.24 lbs
Surface Field: 3424 Gauss
Max Operating Temp: 302ºF (150ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

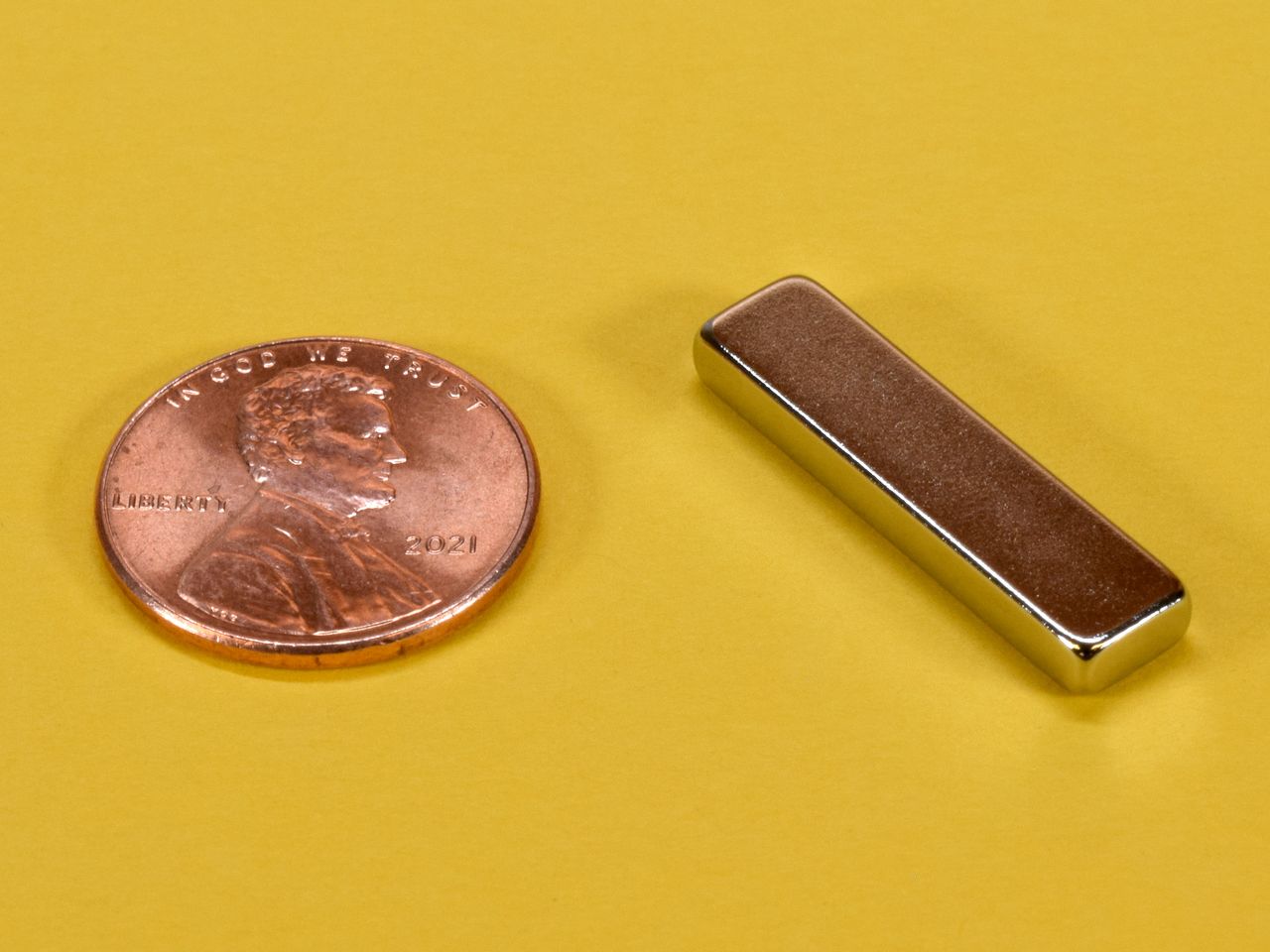

One of our most popular sizes, now available in the SH high temp grade. They can be used for a wide range of applications. Poles are located on the larger, rectangular surfaces.

Available in grade N42, P/N BX042, and grade N52, P/N BX042-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $1.87

Quantity:

Qty:

Price ea.	Qty
$1.87	1-9
$1.83	10-24
$1.79	25-49
$1.74	50-99
$1.70	100-249
$1.66	250-499
$1.62	500-999
$1.57	1000-2499
$1.53	2500-4999
$1.49	5000-9999
For pricing at higher order quantities, please email us!
