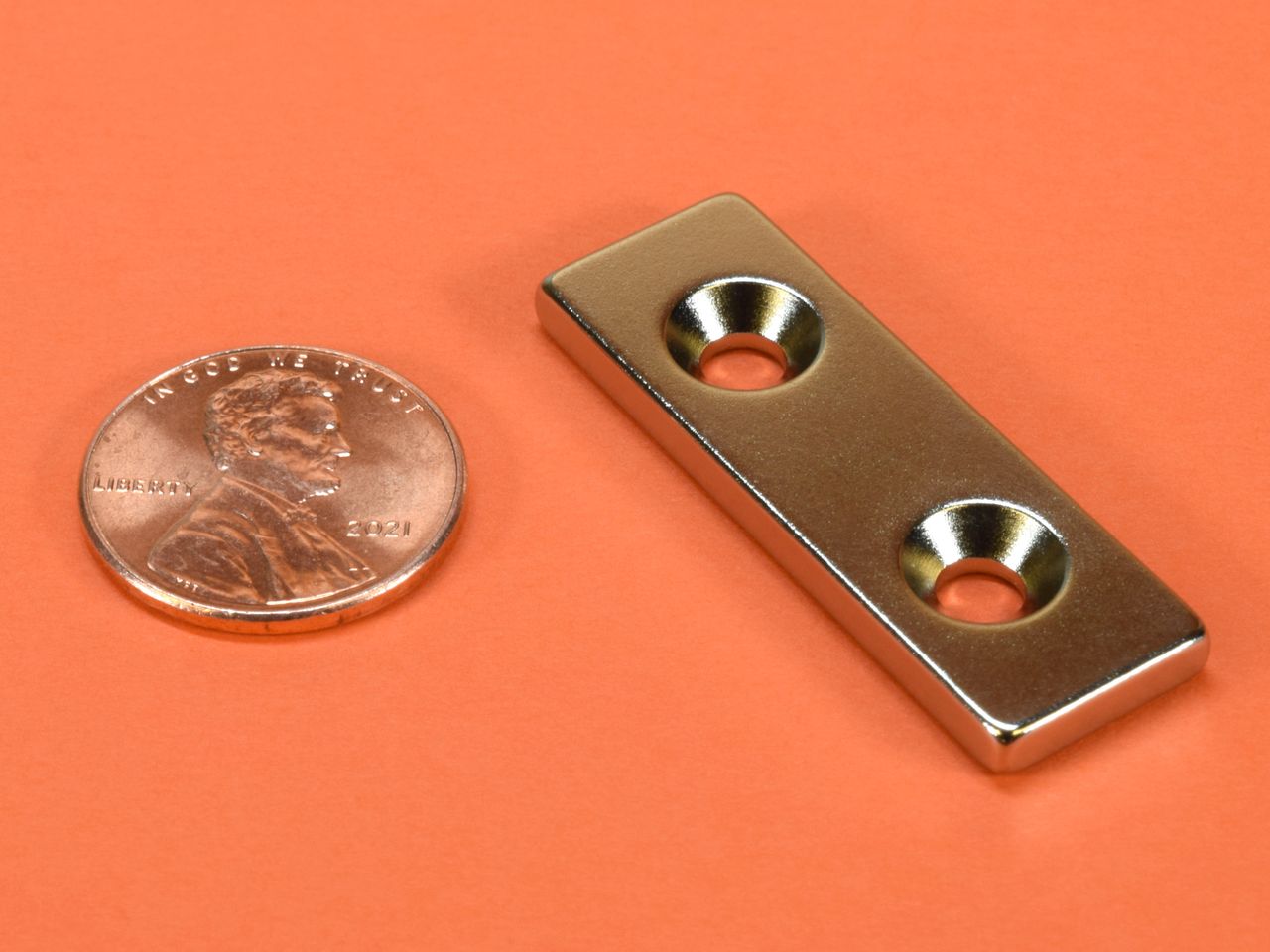

BX882CS-S - Neodymium Block Magnet

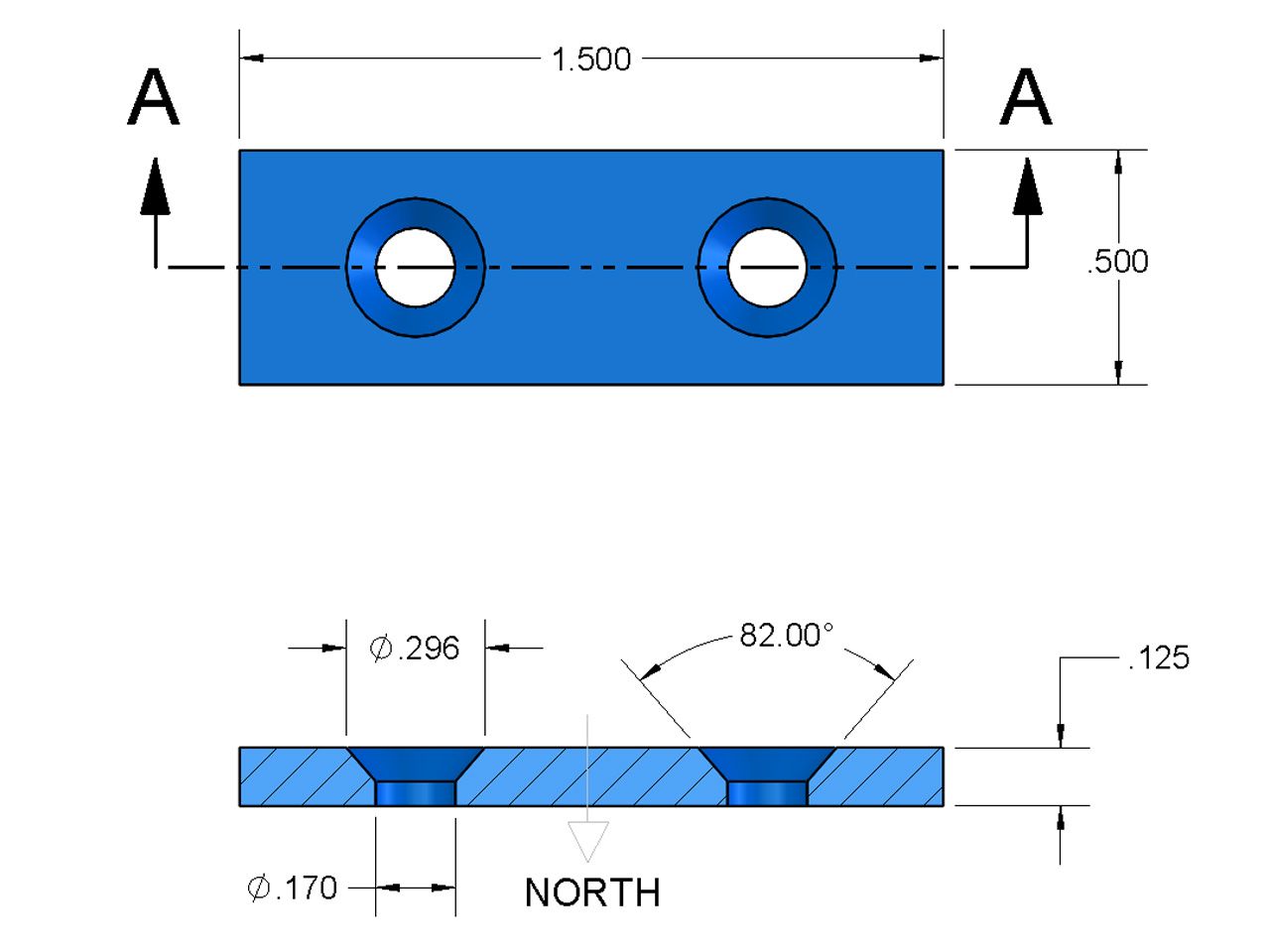

• Dimensions: 1 1/2" x 1/2" x 1/8" thick w/ holes to accept a #6 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.346 oz. (9.81 g)
• Pull Force, Case 1: 11.03 lbs
• Pull Force, Case 2: 49.16 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Here we offer the popular size of 1 1/2" x 1/2" x 1/8" thickness with holes for two #6 flathead screws to allow for easy fastening. The BX882CS-S is magnetized with the south pole on the countersink side.

These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers. This size is available without the countersunk holes in grade N42, BX882 and grade N52, BX882-N52.
