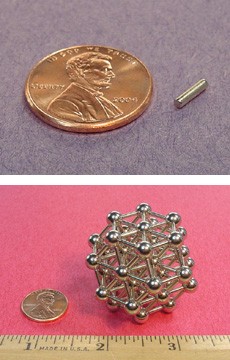

D14 - Neodymium Cylinder Magnet

• Dimensions: 1/16" dia. x 1/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.00333 oz. (0.0943 g)
• Pull Force, Case 1: 0.15 lbs
• Pull Force, Case 2: 0.16 lbs
• Surface Field: 6549 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

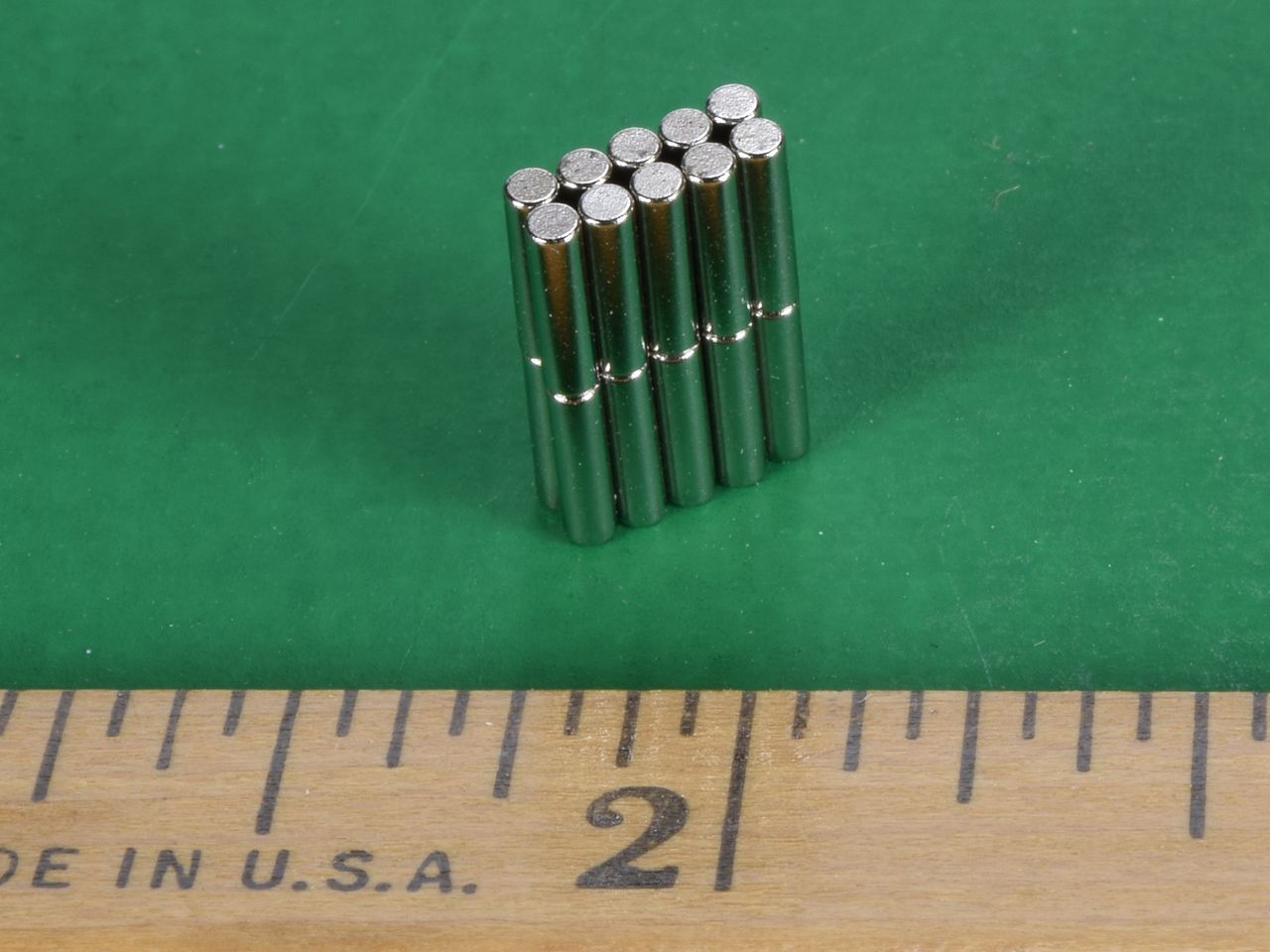

Tiny, tiny cylinders. These small cylinders are interesting to use with larger magnets. These small rods will align themselves with the magnetic field lines of larger magnets.

This size is also available in grade N52 as part number D14-N52.

These magnets are sold in packs of 10.  Order a quantity of 1 and get 10 magnets.  Order a quantity of 2 and get 20 magnets.  Order a quantity of 3 and get 30...

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.
