D21SH
D21SH

D21SH
  • Description
  • Technical
  • Downloads

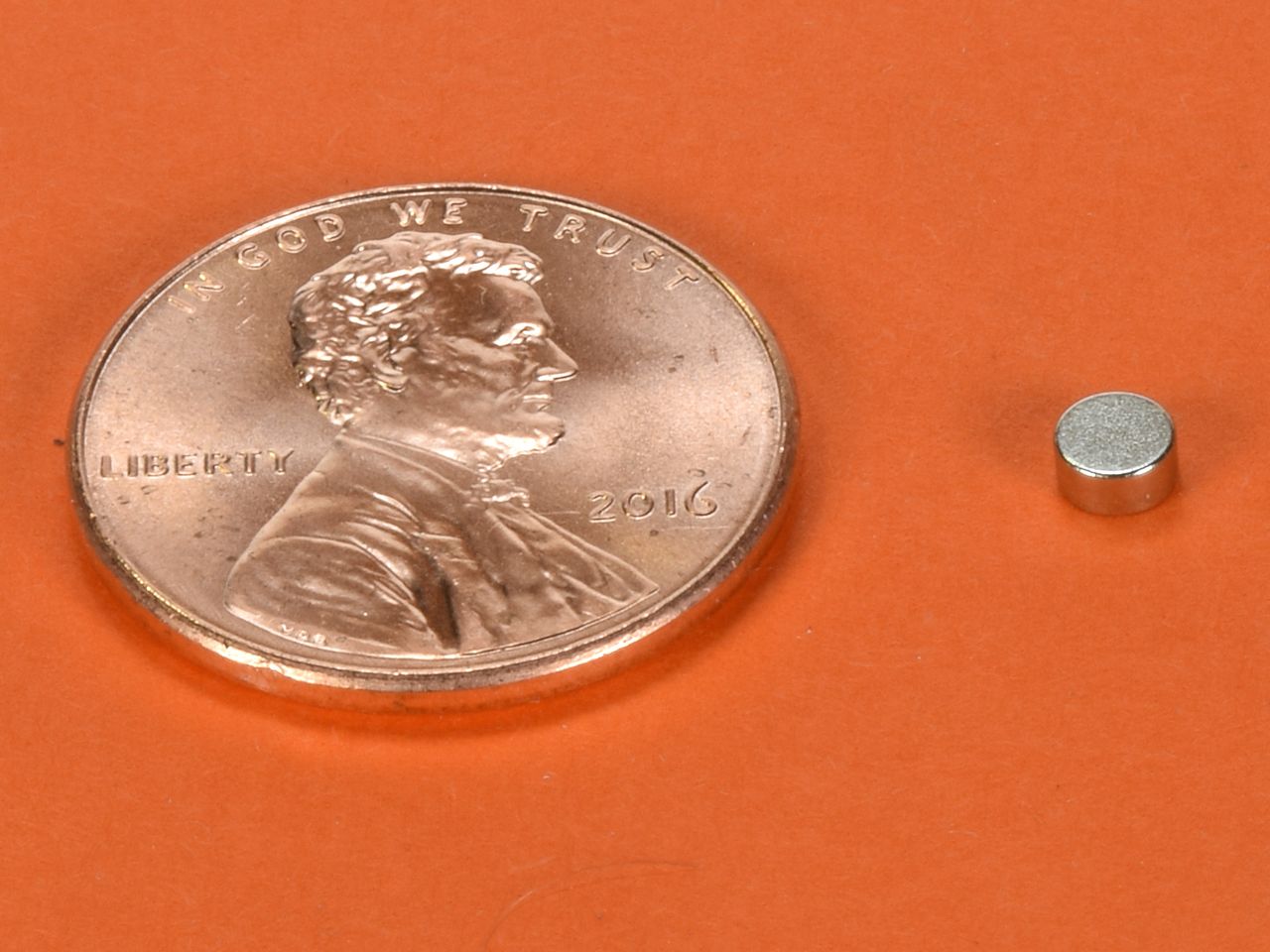

Here we offer our very popular 1/8" diameter x 1/16" disc magnets in grade N42SH.  The SH grades have a maximum operating temperature of 302ºF (150ºC), as compared to standard N grades that have a maximum operating temperature of 176ºF (80ºC).  These are great for applications where you need to place a small magnet in a high temperature environment.

This size is also available in grade N52 with black nickel plating as part number D21B-N52 and in grade N42 with silver nickel plating as part number D21.

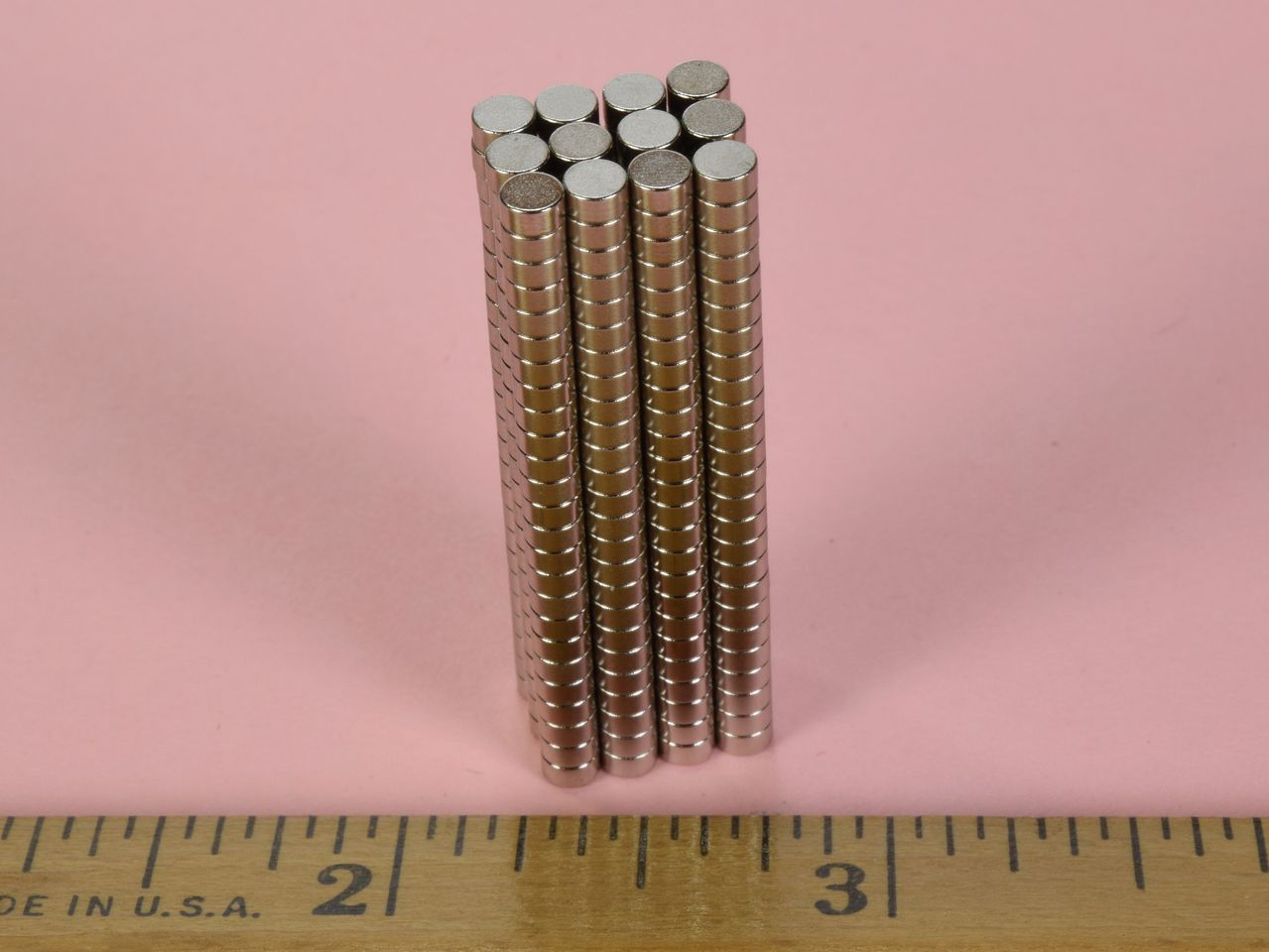

These magnets are sold in packs of 10.  Order a quantity of 1 and get 10 magnets.  Order a quantity of 2 and get 20 magnets.  Order a quantity of 3 and get 30...


Case1 Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
Case2 Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
Case3 Pull Force, Case 3 vs. distance: Magnet to Magnet.
Case4 Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
Magnetic Field Click here for a depiction of the magnetic field.
BH Curves View B-H curves for this magnet.

SpecSheet Click here to download a PDF Specification Sheet.
Drawing Click here to download a PDF drawing of this product.
Cert Click here to download a Certificate of Compliance for this product.
RoHS Click here to download a RoHS Statement of Compliance for this product.
MSDS Click here to download a Material Safety Data Sheet (MSDS) for this product.
CMRTClick here to download a Conflict Minerals Reporting Template (CMRT).
OriginClick here to download a Certificate of Origin for this product.
REACHClick here for a REACH compliance statement.
STEP Click here to download a .STEP file (3D model).
IGS Click here to download an .IGS file (3D model).



   Download the free Adobe Acrobat Reader
 Price: $1.40


Quantity:
Qty:
 Add to cart

Price ea.Qty
$1.40 1-24
$1.30 25-249
$1.20 250-2499
$1.10 2500-4999
For pricing at higher order quantities,
please email us!
