D84PC-AST - Plastic Coated Magnet

• Dimensions: 1/2" dia. x 1/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni-Plastic
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.198 oz. (5.61 g)
• Pull Force, Case 1: 3.45 lbs
• Pull Force, Case 2: 5.57 lbs
• Surface Field: 3775 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These great magnets are coated with a durable layer of plastic. The 1/2" x 1/4" dimensions are the finished dimensions of the plastic coating. These discs can be slammed together many times without damage. They won't mark or scratch surfaces they come in contact with. They are also completely weatherproof. Please note: Slight color variation may occur from order to order.

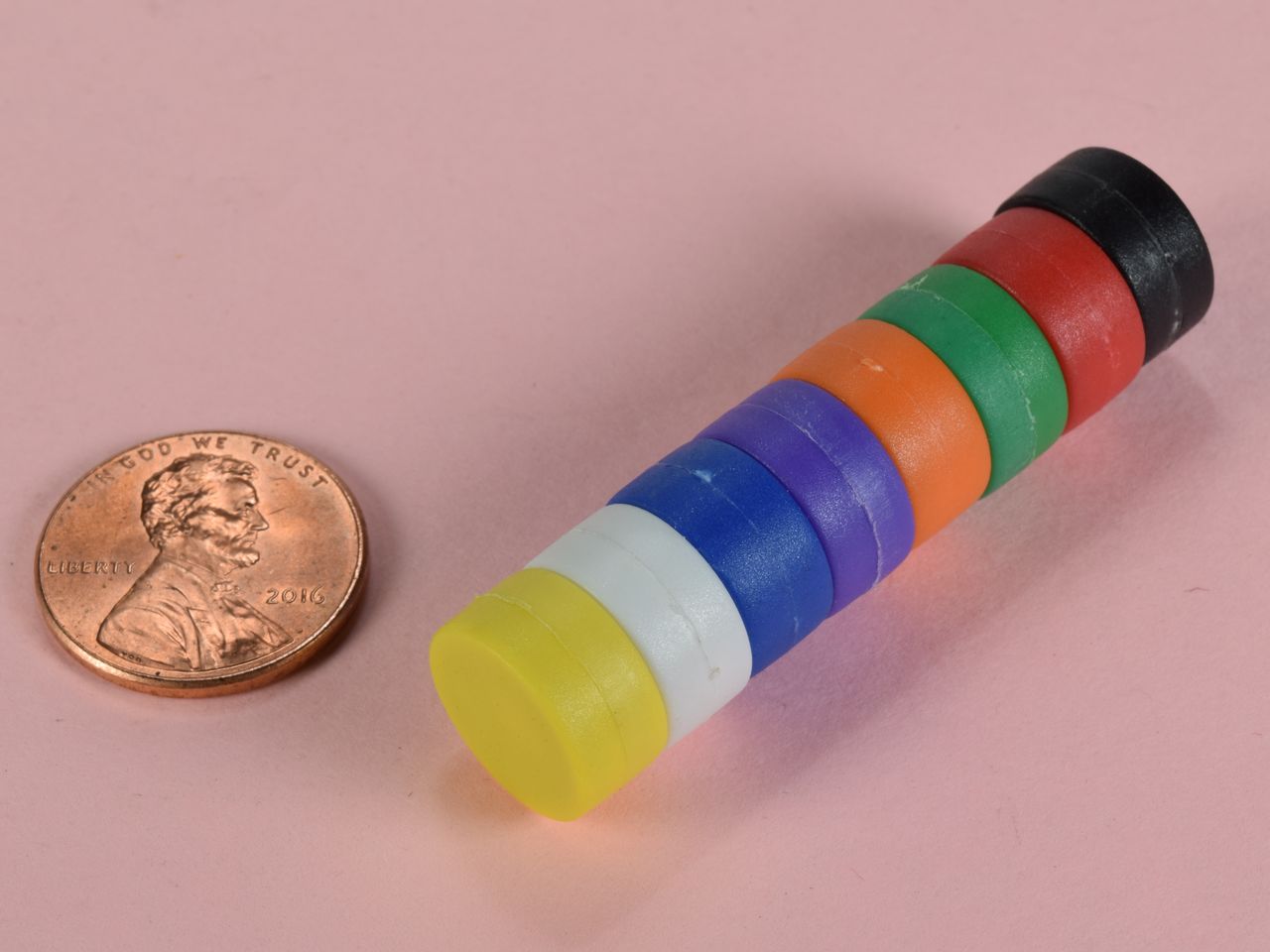

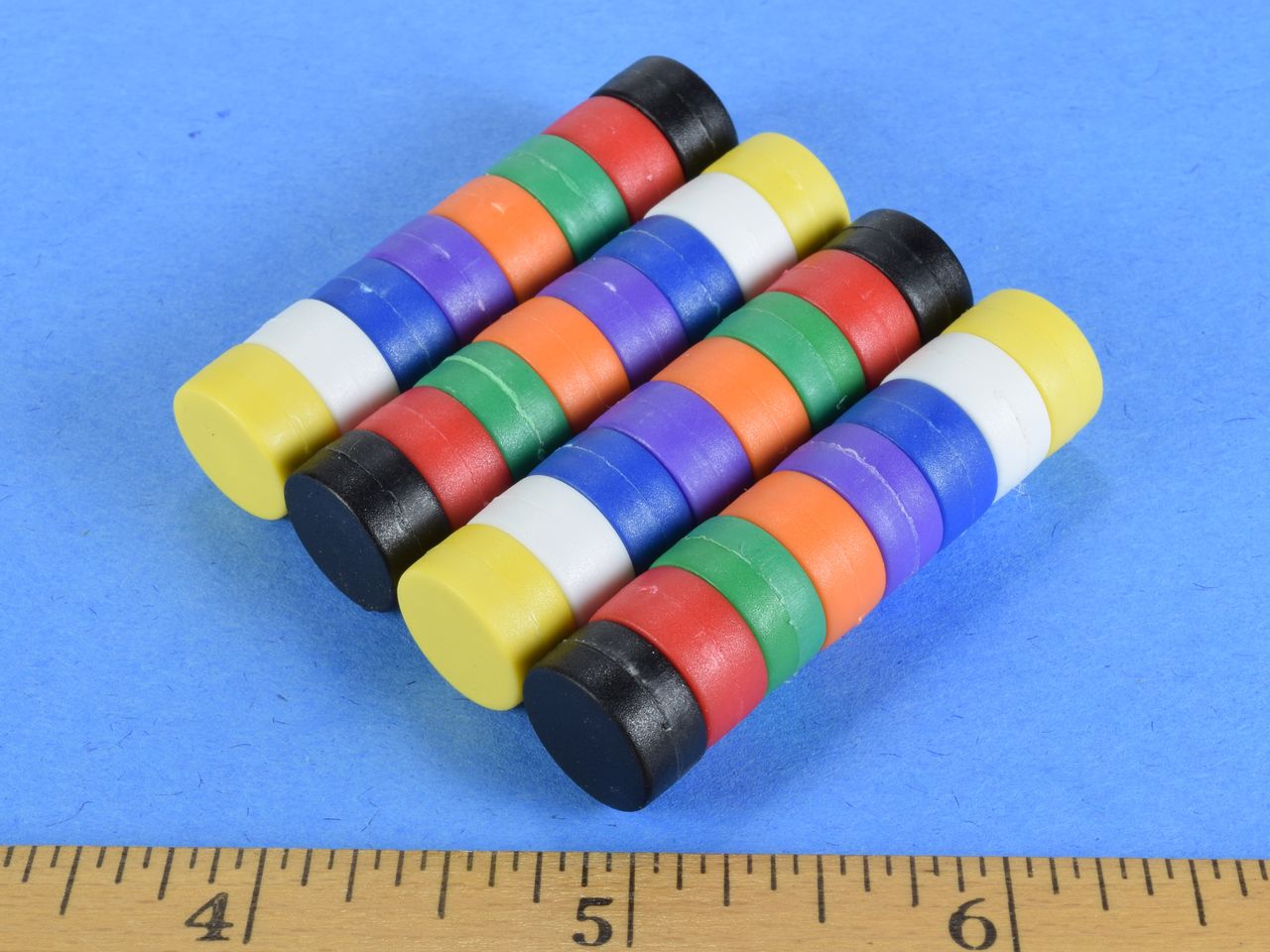

The assortment will contain each of the 8 colors of these discs that we currently stock.

These magnets are sold in packs of 8.  Order a quantity of 1 and get 8 magnets.  Order a quantity of 2 and get 16 magnets.  Order a quantity of 3 and get 24...

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
