• Dimensions: 3/4" dia. x 3/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni-Plastic
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.718 oz. (20.4 g)
• Pull Force, Case 1: 10.86 lbs
• Pull Force, Case 2: 17.77 lbs
• Surface Field: 4095 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

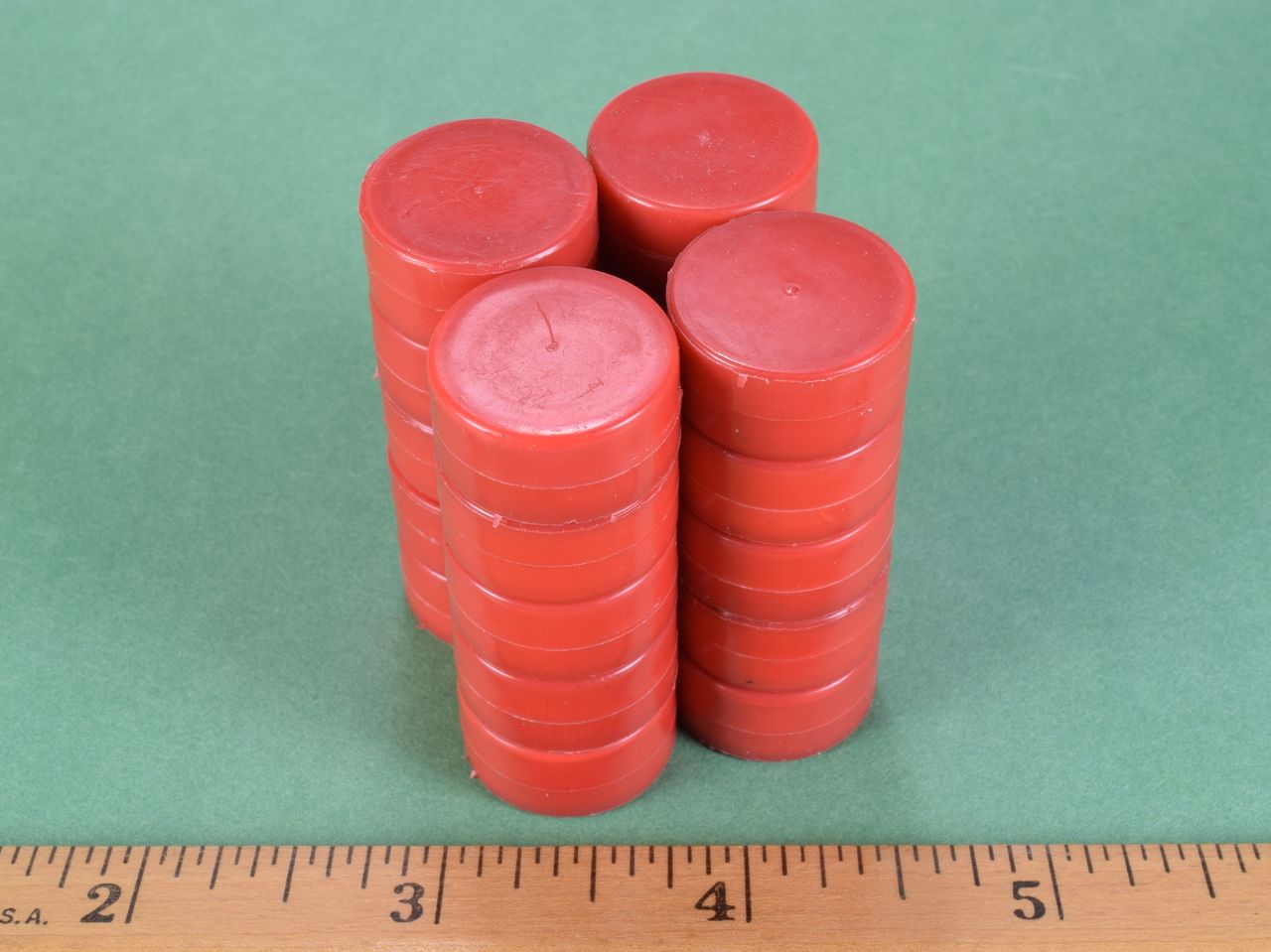

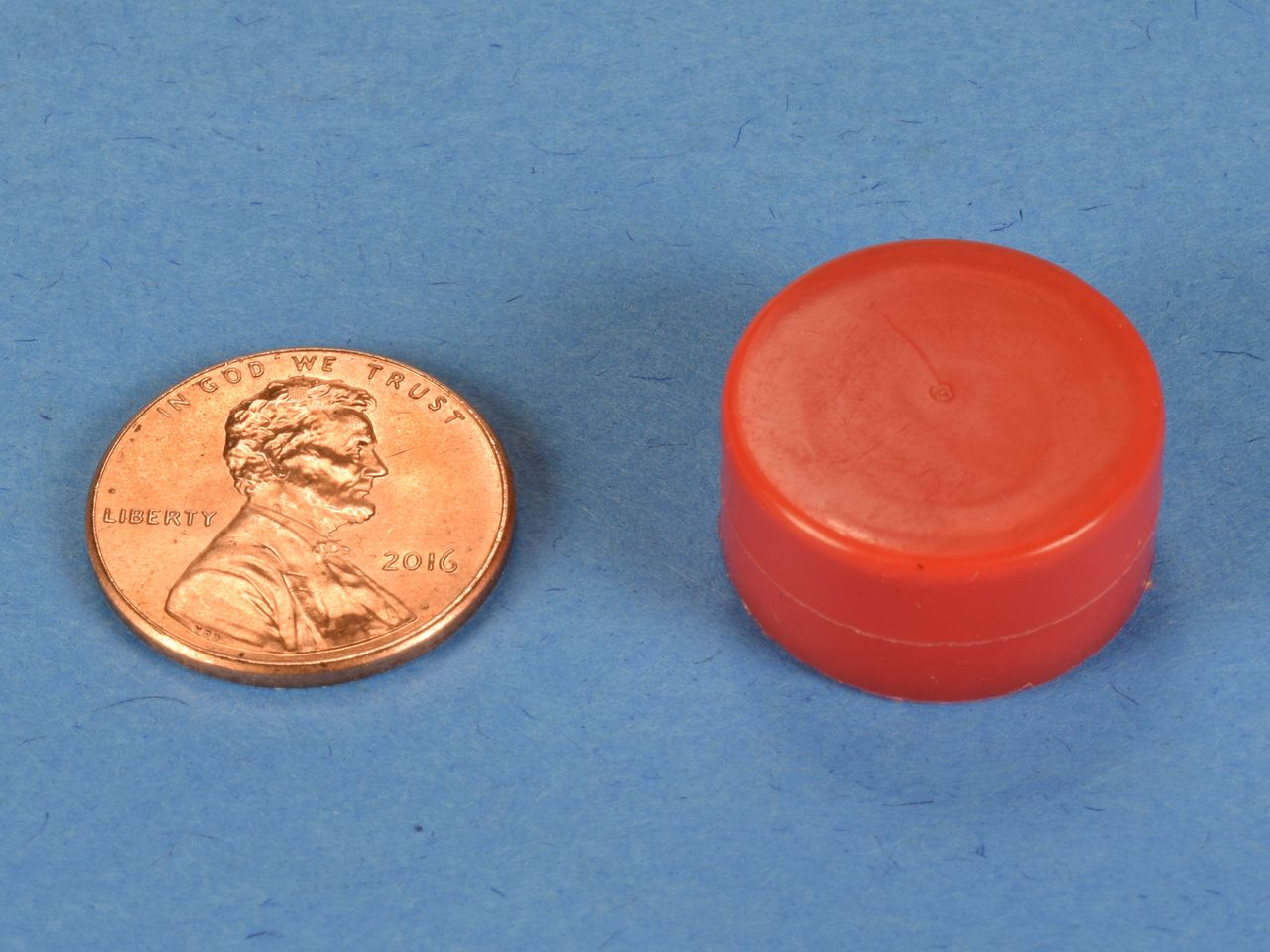

These great magnets are coated with a durable layer of plastic. The 3/4" x 3/8" dimensions are the finished dimensions of the plastic coating. These discs can be slammed together many times without damage. They won"t mark or scratch surfaces they come in contact with. They are also completely waterproof and weatherproof. Please note: Slight color variation may occur from order to order.
