RX034DCSPC-BLK - Plastic Coated Magnet

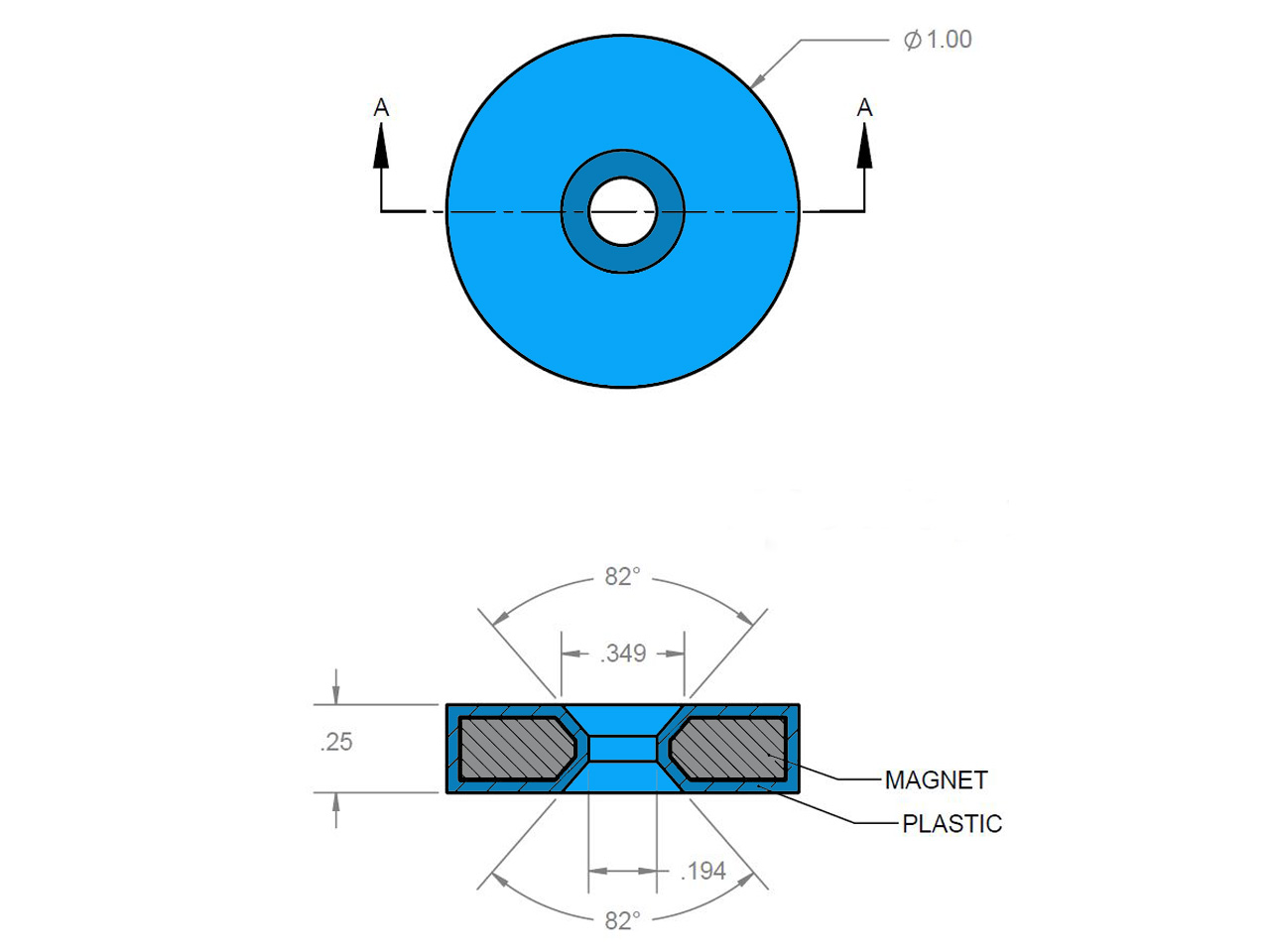

• Dimensions: 1" od x 0.194" id x 0.349" id x 1/4" thick w/ hole to accept #6 screws
• Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni Black Plastic
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.515 oz. (14.61 g)
• Pull Force, Case 1: 9.56 lbs
• Pull Force, Case 2: 21.95 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

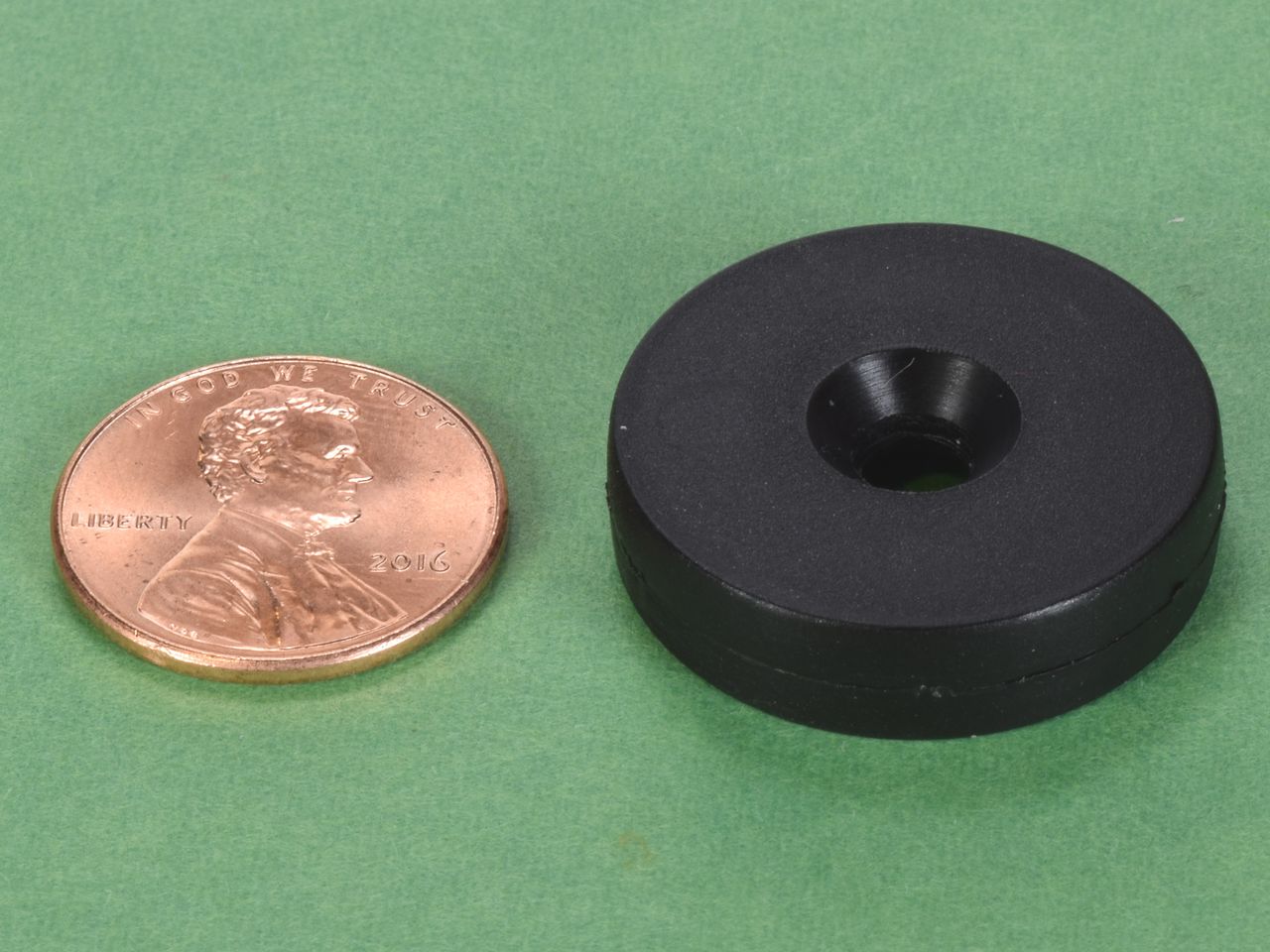

The RX034DCSPC combines the qualities of some of our most popular magnets and rolls them up into one neat little package! All the versatility of a countersunk ring wrapped in a rugged plastic coating. And since it's double countersunk, it's also reversible. Perfect for attaching objects to painted surfaces, crafts, signage, displays and more.

See our full line of Countersunk Magnets.


	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
