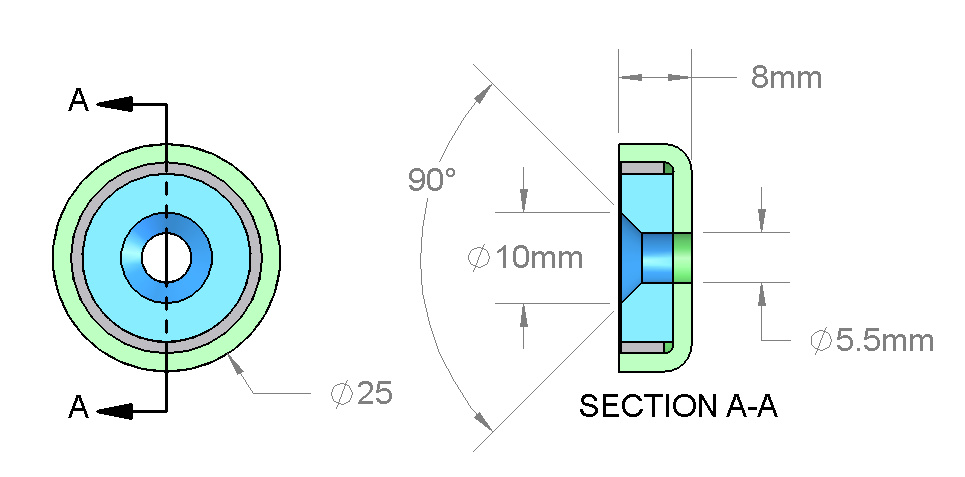

- Dimensions:
D=25mm (0.98")
d1=5.5mm (0.22") (Sized for M5 screw)
d2=10mm (0.39") (Tapered countersunk hole)
h=8mm (0.32") - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.85 oz. (24.1 g)
- Pull Force: 31.00 lbs
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe
Click this link for a depiction of the magnetic field. | |
View B-H curves for this magnet. |
Click this link to download a PDF Specification Sheet. | |
Click this link to download a PDF drawing of this product. | |
Click this link to download a Certificate of Compliance for this product. | |
Click this link to download a RoHS Statement of Compliance for this product. | |
Click this link to download a Material Safety Data Sheet (MSDS) for this product. | |
Click this link to download a Conflict Minerals Reporting Template (CMRT). | |
Click this link to download a Certificate of Origin for this product. | |
Click this link for a REACH compliance statement. | |
Click this link to download a .STEP file (3D model). | |
Click this link to download an .IGS file (3D model). |
