NSC82 - Steel Cup for Magnets

nsc82-steel-cup-for-magnets--thumbnail-1nsc82-steel-cup-for-magnets--thumbnail-2
$0.70
-
+
Buy more, Save more!

Quantity based discounts

Price ea.QtyDiscount
$0.70 1-9
$0.6410-249%
$0.6025-4914%
$0.5650-9920%
$0.54100-24923%
$0.52250-49926%
$0.48500-99931%
$0.451000-249936%
$0.422500-499940%
Email us for even bigger discounts on higher order quantities
  • product description icon   Description
  • product download icon   Downloads
Nickel-plated Steel Cup
Holds 1/2" x 1/8" Disc Magnet
5/8" o.d. x 0.219" thick overall

These steel cups are perfect for wood and metal projects. They can be recessed to provide a flush magnet mount for latches. The corresponding steel washers can be used to create a clean, modern latch assembly for doors and hatches. The cup is countersunk to accept a wood or metal screw that will be covered by the magnet.

These parts are not magnets. Magnets and mounting screws not included with this part. Magnets can be purchased separately. This size cup is designed for use with our D82 disc magnet.  Our R822CS-N and R822CS-S countersunk ring magnets can also be used with this steel cup.

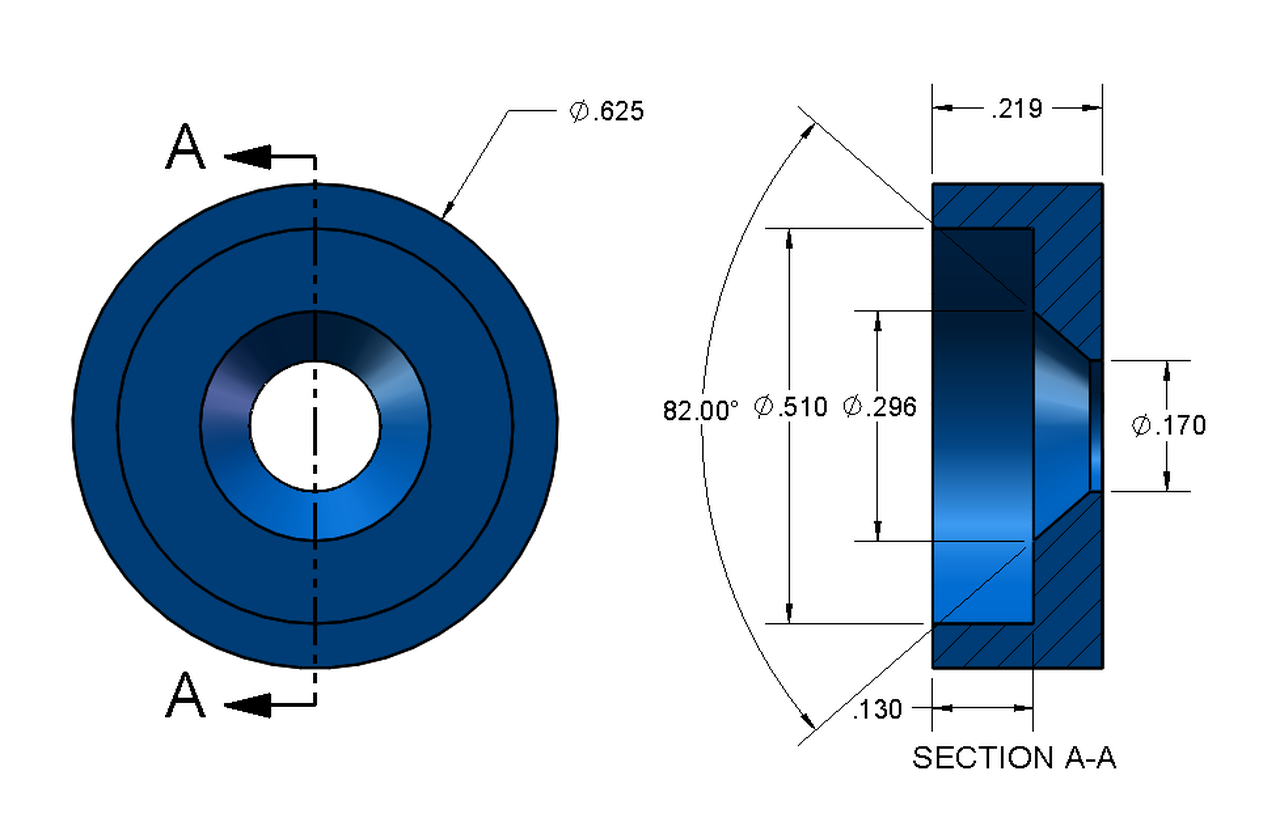

DrawingClick this link to download a PDF drawing of this product.
CertClick this link to download a Certificate of Compliance for this product.
RoHSClick this link to download a RoHS Statement of Compliance for this product.
CMRTClick this link to download a Conflict Minerals Reporting Template (CMRT).
OriginClick this link to download a Certificate of Origin for this product.
REACHClick this link for a REACH compliance statement.
STEPClick this link to download a .STEP file (3D model).
IGSClick this link to download an .IGS file (3D model).
