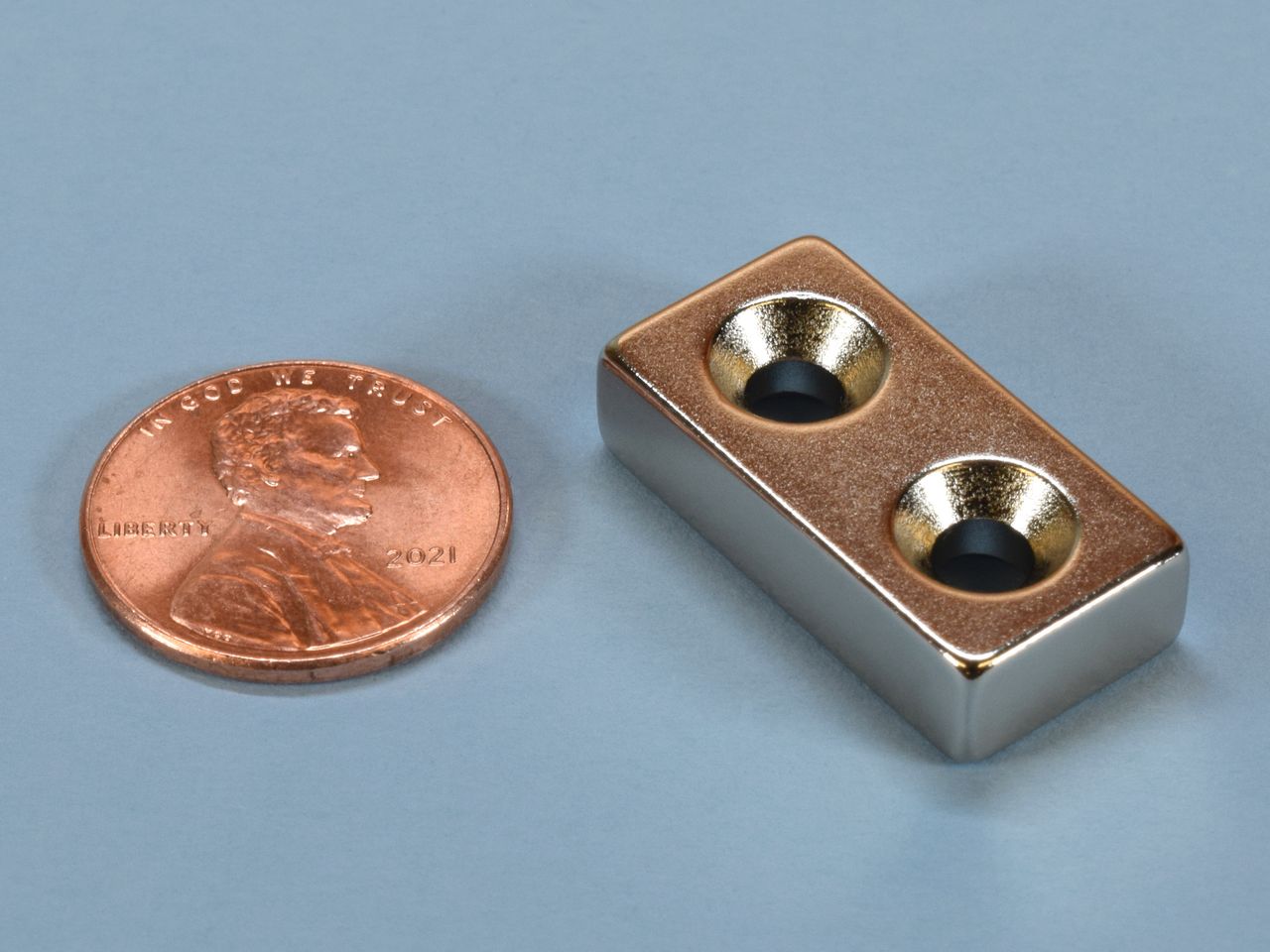

BX084DCS - Neodymium Block Magnet

• Dimensions: 1" x 1/2" x 1/4" thick w/ holes to accept a #6 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.521 oz. (14.8 g)
• Pull Force, Case 1: 18.2 lbs
• Pull Force, Case 2: 35.83 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The BX084DCS is one another magnet in our unique line of countersunk magnets. This rectangular block is countersunk on both sides, making it reversible. The double countersunk holes allows for fastening to surfaces where magnets just won't stick! Great for woodworking, art projects, manufacturing and many other custom applications.

See our full line of Countersunk Magnets.

This size is also available without the countersunk hole as part number BX084.
