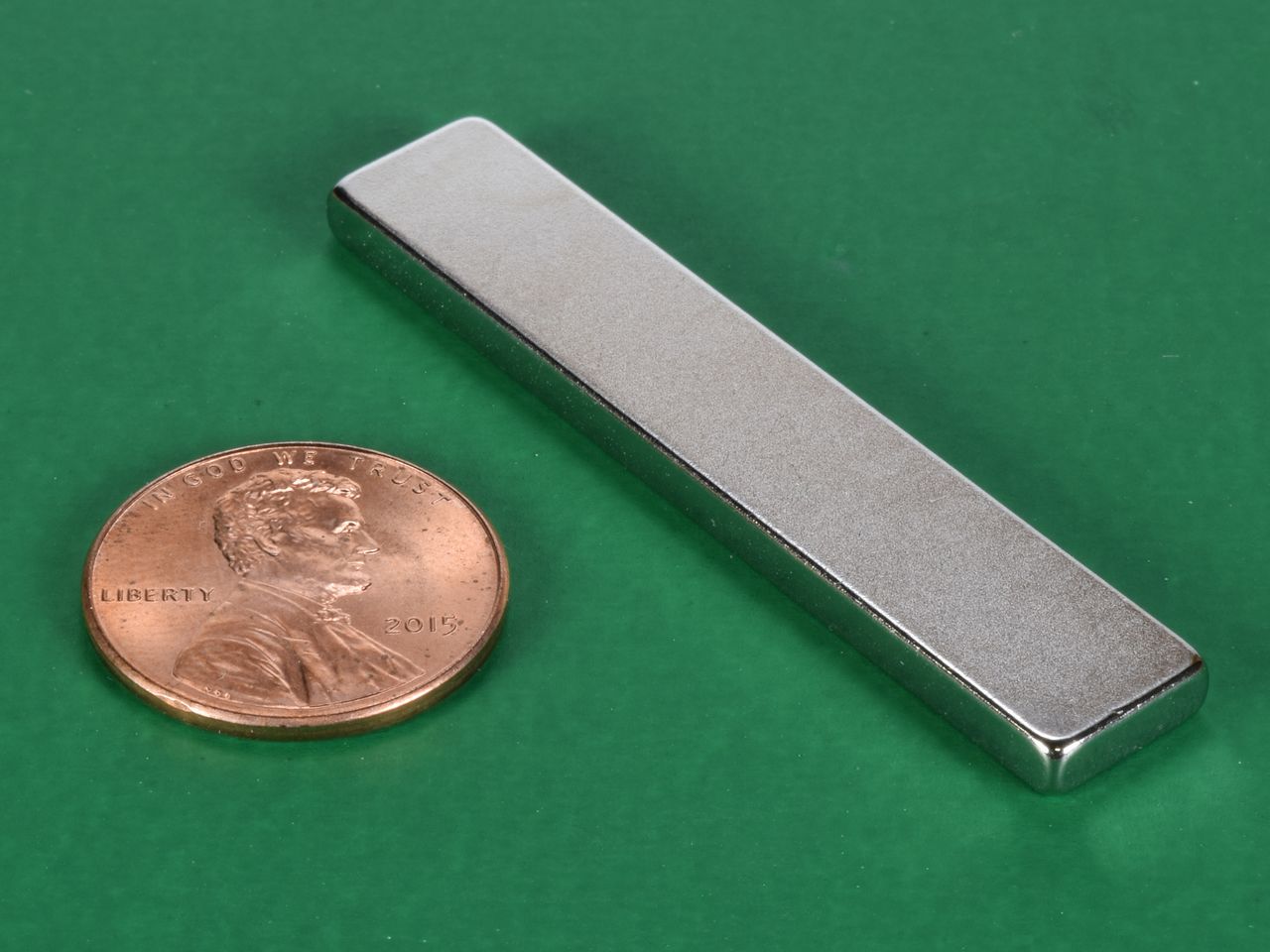

BY062 - Neodymium Block Magnet

by062-neodymium-block-magnet--thumbnail-2

$3.26

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$3.26	1-4
$3.19	5-9	2%
$3.12	10-24	4%
$3.04	25-49	7%
$2.97	50-99	9%
$2.90	100-249	11%
$2.83	250-499	13%
$2.75	500-999	16%
$2.68	1000-2499	18%
$2.61	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 2" x 3/8" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.407 oz. (11.52 g)
Pull Force, Case 1: 12.36 lbs
Pull Force, Case 2: 55.10 lbs
Surface Field: 2519 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

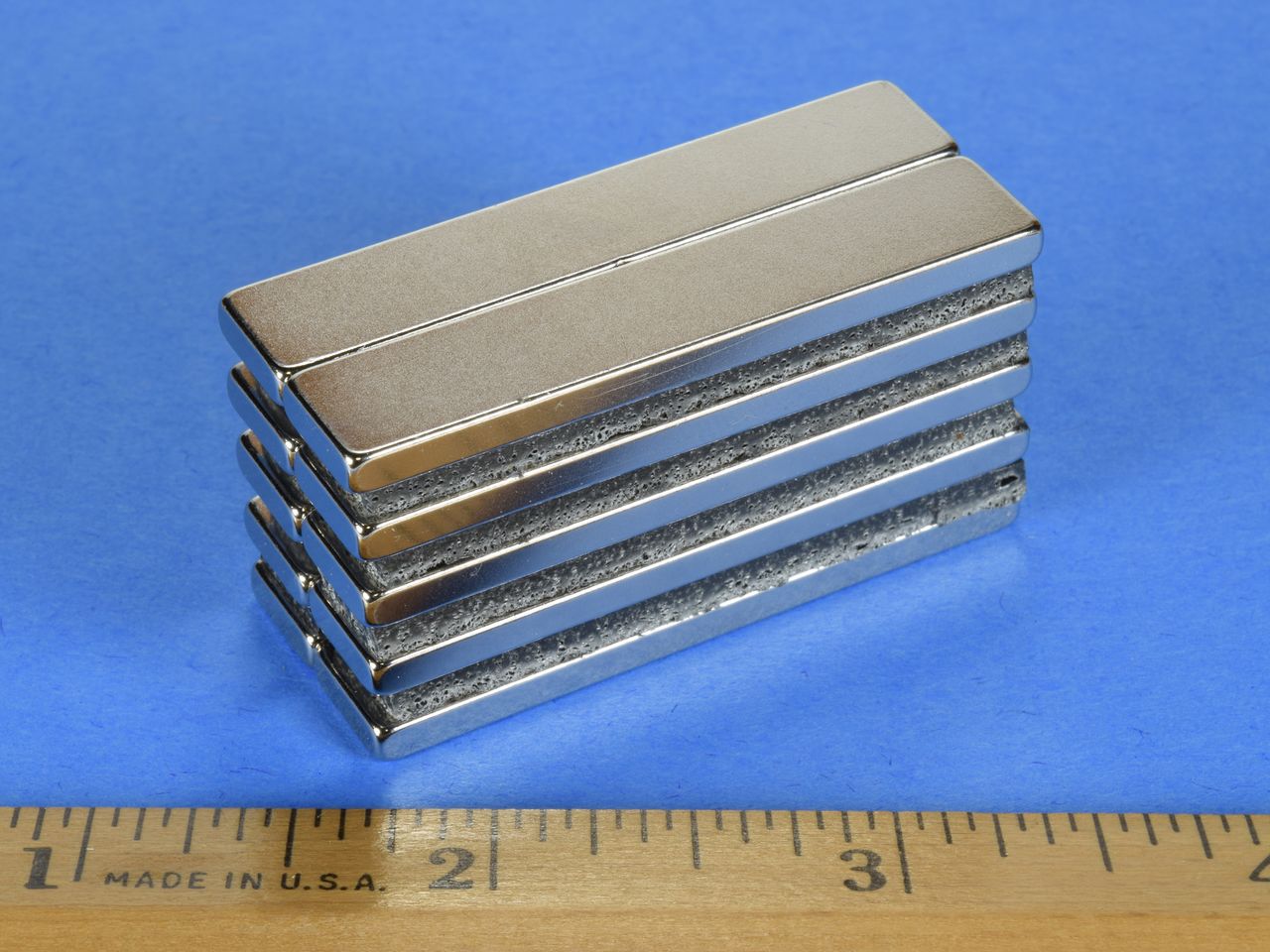

These 2" long blocks are thin and strong, making them great for a wide variety of applications. The BY062 is a powerful block magnet and should be handled with care. It's best to slide these magnets when taking them apart or placing them onto another surface, in order to avoid breaking them or even getting pinched.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
