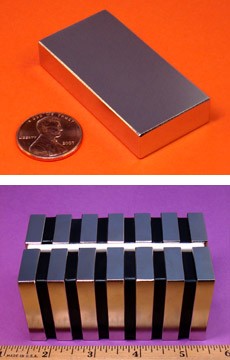

Home » NEODYMIUM BLOCK MAGNETS » BY0X06-N52

Description
Technical
Downloads

Dimensions: 2" x 1" x 3/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 3.25 oz. (92.2 g)
Pull Force, Case 1: 76.52 lbs
Pull Force, Case 2: 169.0 lbs
Surface Field: 3411 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

These grade N52 blocks are incredibly powerful. They will pinch if mishandled, so beware! They are definitely "adult-sized" blocks.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
