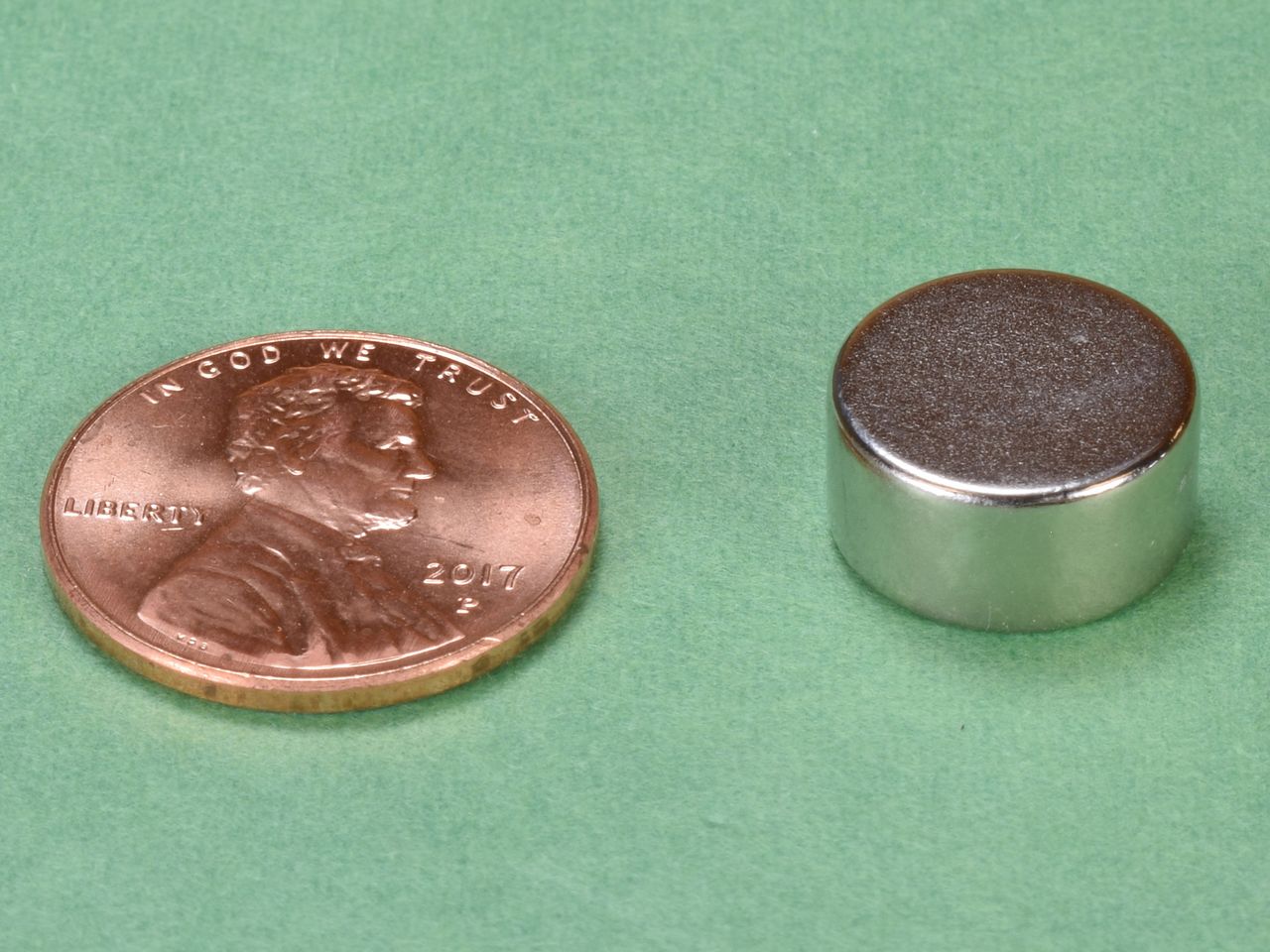

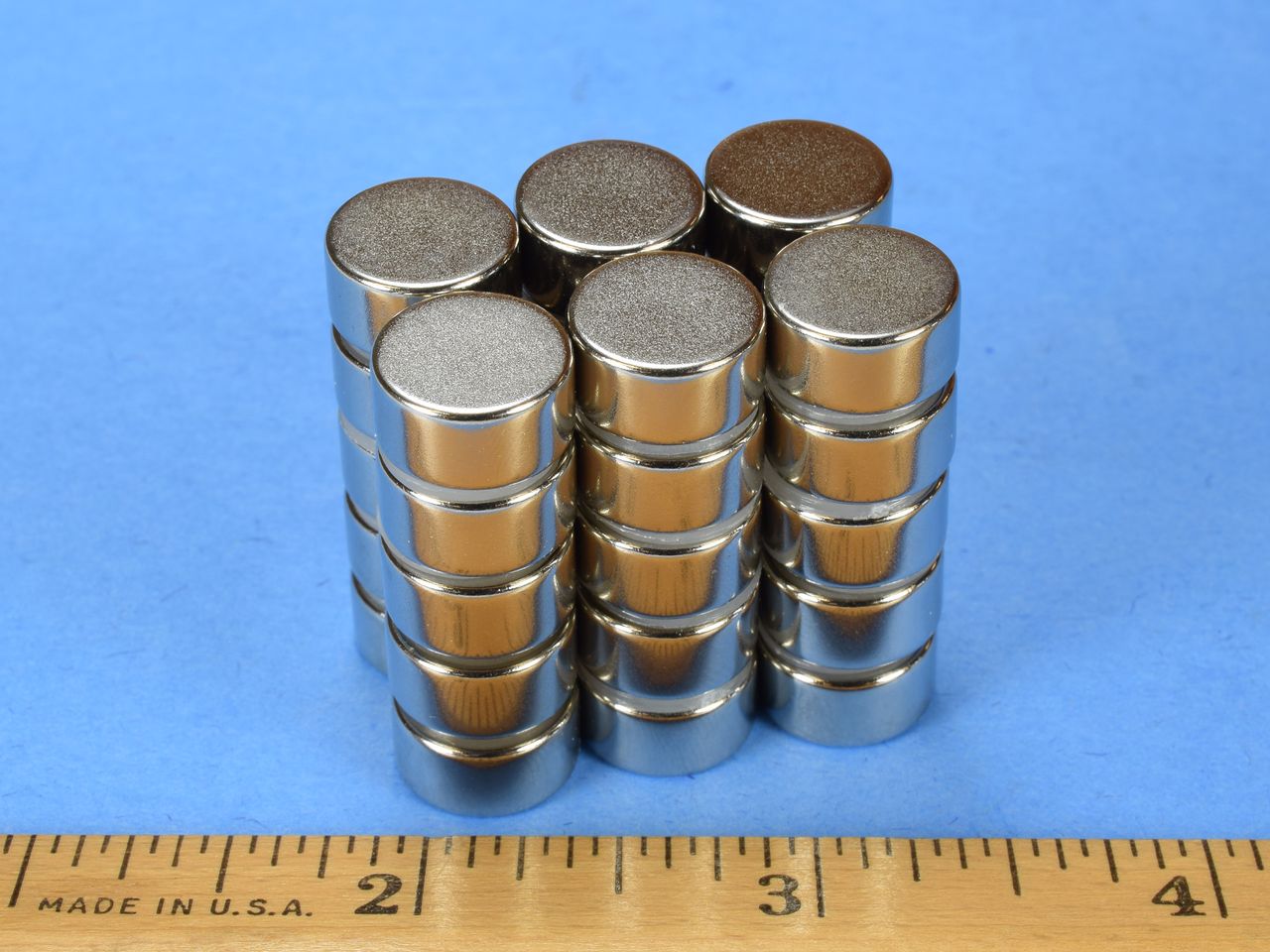

D84AH - Neodymium Disc Magnet

Description
Technical
Downloads

Dimensions: 1/2" dia. x 1/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N35AH
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.213 oz. (6.03 g)
Pull Force, Case 1: 9.07 lbs
Pull Force, Case 2: 13.50 lbs
Surface Field: 4278 Gauss
Max Operating Temp: 428ºF (220ºC)
Brmax: 12,100 Gauss
BHmax: 35 MGOe

This is one of our most popular sizes now available in the high temperature AH grade.

The AH grades have a maximum operating temperature of 428ºF (220ºC), as compared to standard N grades that have a maximum operating temperature of 176ºF (80ºC).

This size is also available in grade N42 as part number D84 and in grade N52 with a black nickel plating as part number D84B-N52 .

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $4.59

Quantity:

Qty:

Price ea.	Qty
$4.59	1-4
$4.49	5-9
$4.39	10-24
$4.28	25-49
$4.18	50-99
$4.08	100-249
$3.98	250-499
$3.87	500-999
$3.77	1000-2499
$3.67	2500-4999
For pricing at higher order quantities, please email us!
