MM-D-75 - Neodymium Female Stud Mounting Magnet

mm-d-75-neodymium-female-stud-mounting-magnet

mm-d-75-neodymium-female-stud-mounting-magnet--thumbnail-1

mm-d-75-neodymium-female-stud-mounting-magnet--thumbnail-2

$87.55

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$87.55	1
$85.60	2	2%
$83.66	3-4	4%
$81.71	5-9	7%
$79.77	10-14	9%
$77.82	15-19	11%
$75.88	20-24	13%
$73.93	25-49	16%
$71.99	50-99	18%
$70.04	100-249	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

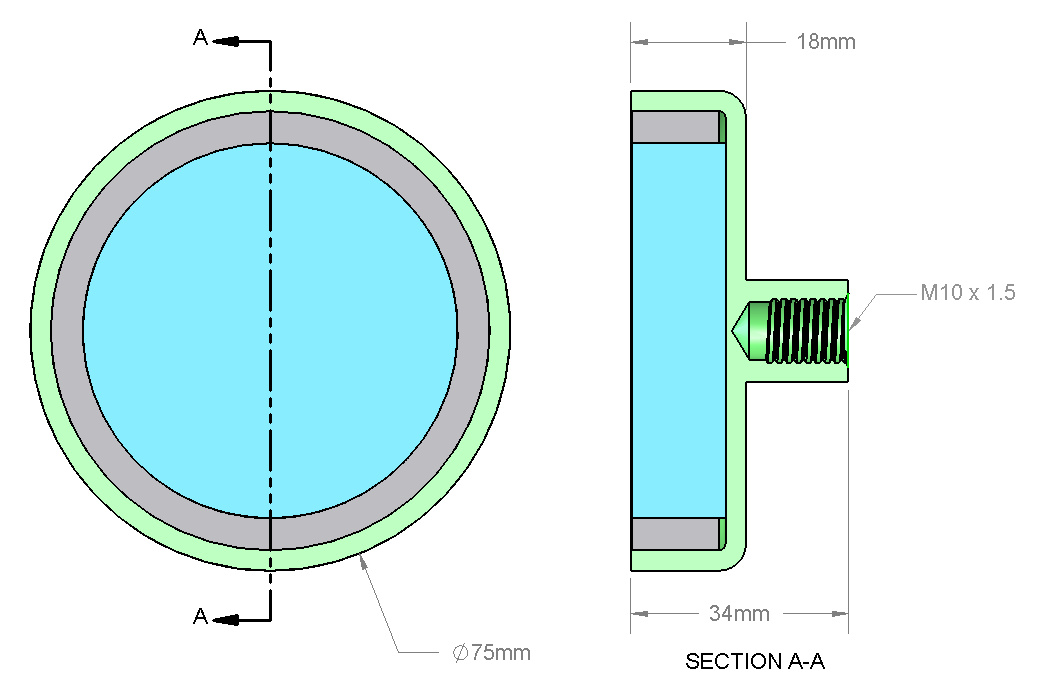

Dimensions:
    D=75mm (2.95")
    d=10mm (0.39") (M10 Coarse Female threaded stud)
    H=34mm (1.34")
    h=18mm (0.71")
    M=16mm (0.63")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 19.47 oz. (552 g)
Pull Force: 361.6 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

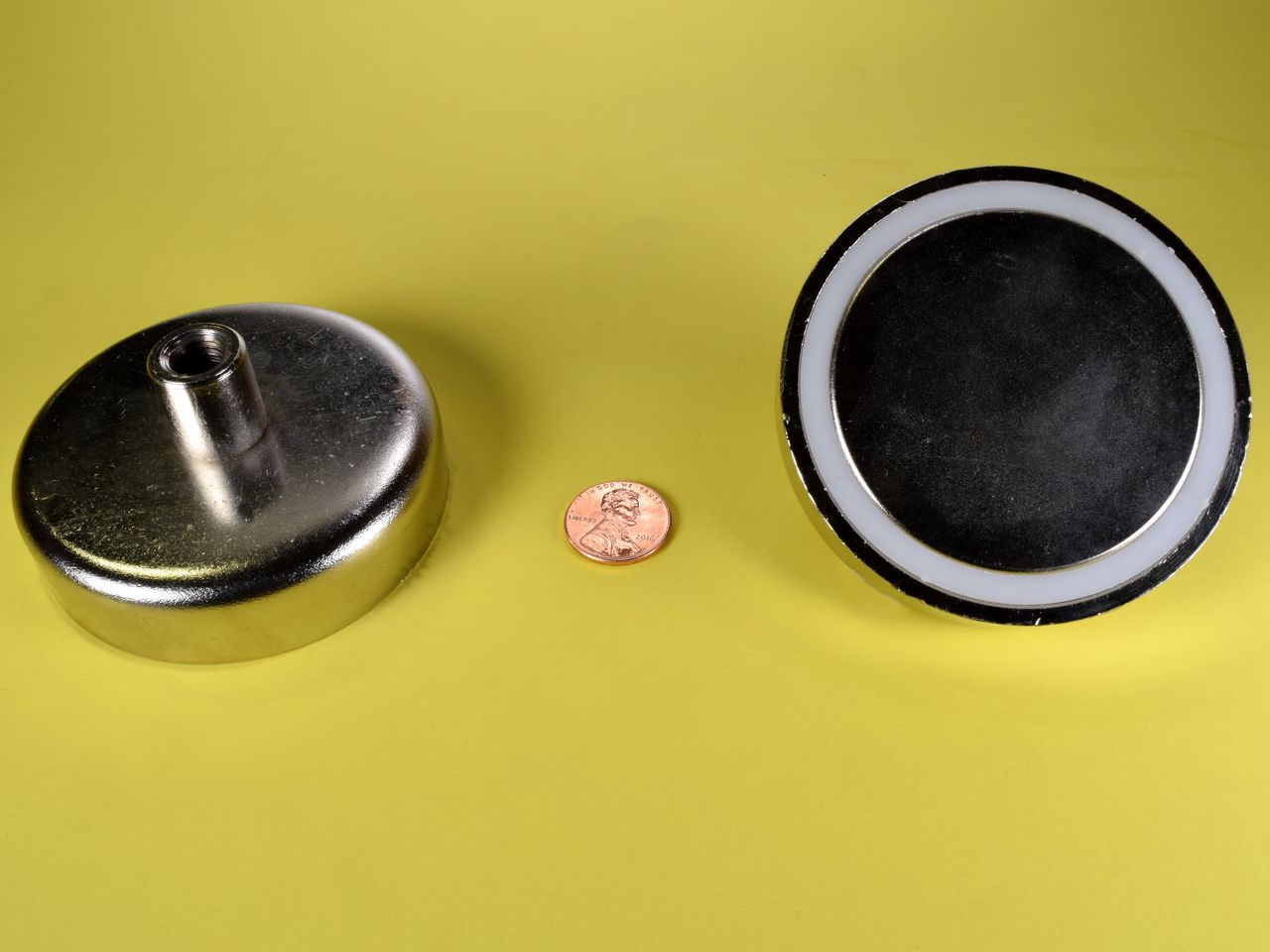

The MM-D style is a flat mounting magnet with a female threaded shaft permanently attached. If you need a magnet to attach to something threaded, this is what you need.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
