RA24DCS - Neodymium Ring Magnet

Description
Technical
Downloads

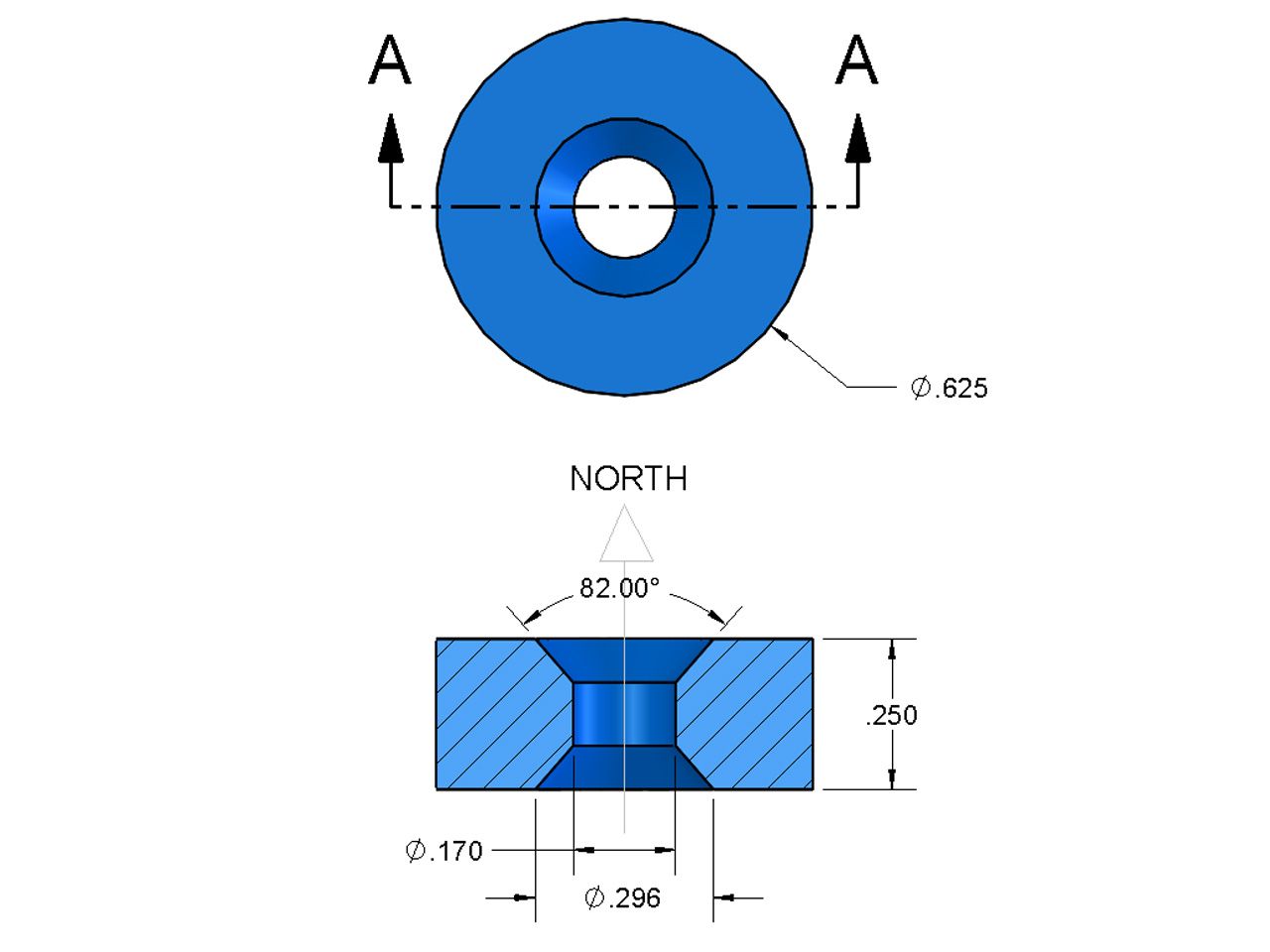

Dimensions: 5/8" od x 1/4" thick w/ holes to accept #6 screw
Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.286 oz. (8.11 g)
Pull Force, Case 1: 12.66 lbs
Pull Force, Case 2: 20.32 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

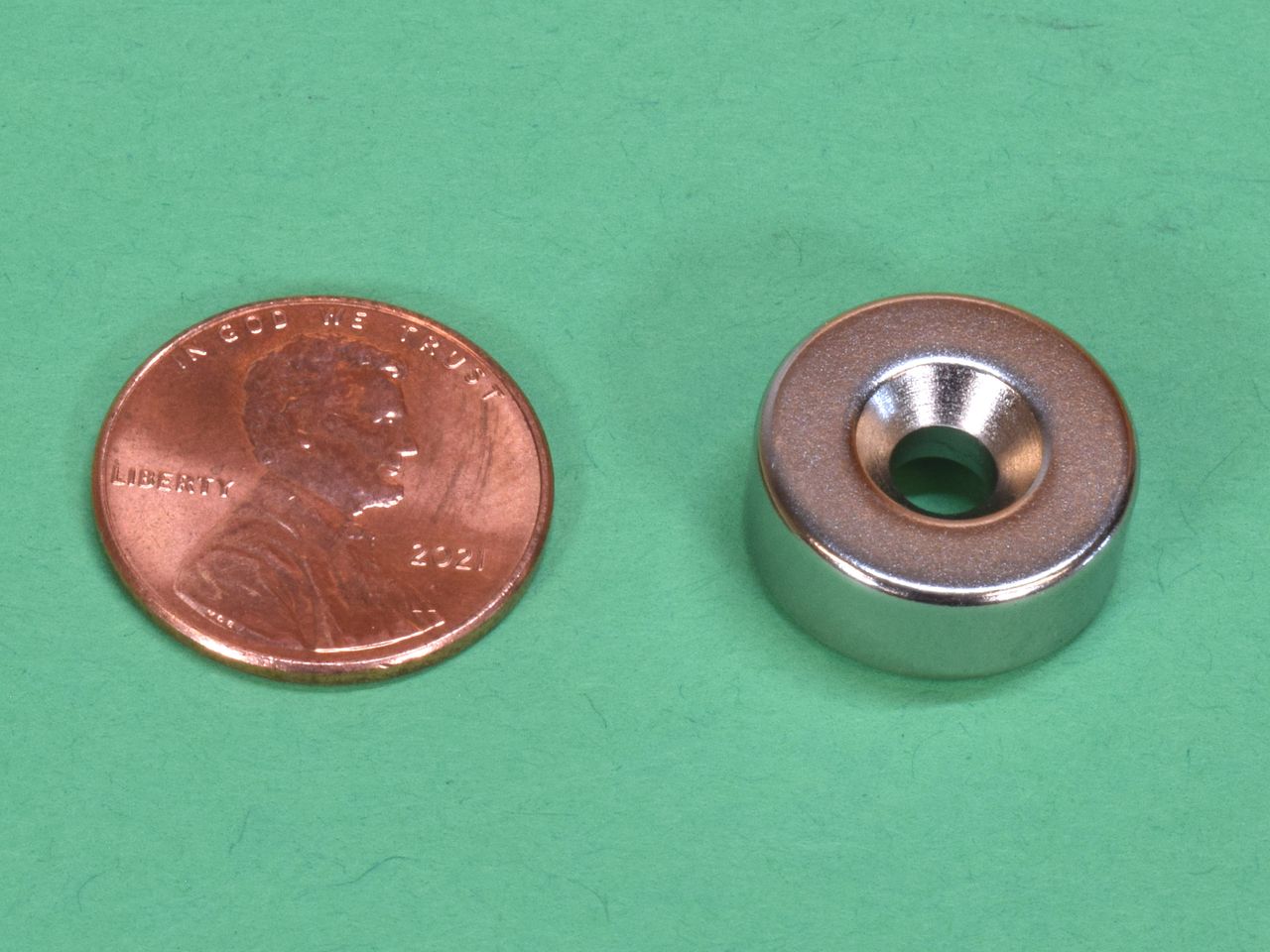

The RA24DCS is similar to the thinner RA22CS-N and RA22CS-S countersunk ring magnets, but in a thicker, double-countersunk shape. Since it's double countersunk, it's also reversible. Perfect for attaching objects to painted surfaces, crafts, signage, displays and more.

See our full line of Countersunk Magnets.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $2.45

Quantity:

Qty:

Price ea.	Qty
$2.45	1-4
$2.40	5-9
$2.34	10-24
$2.29	25-49
$2.23	50-99
$2.18	100-249
$2.12	250-499
$2.07	500-999
$2.01	1000-2499
$1.96	2500-4999
For pricing at higher order quantities, please email us!
