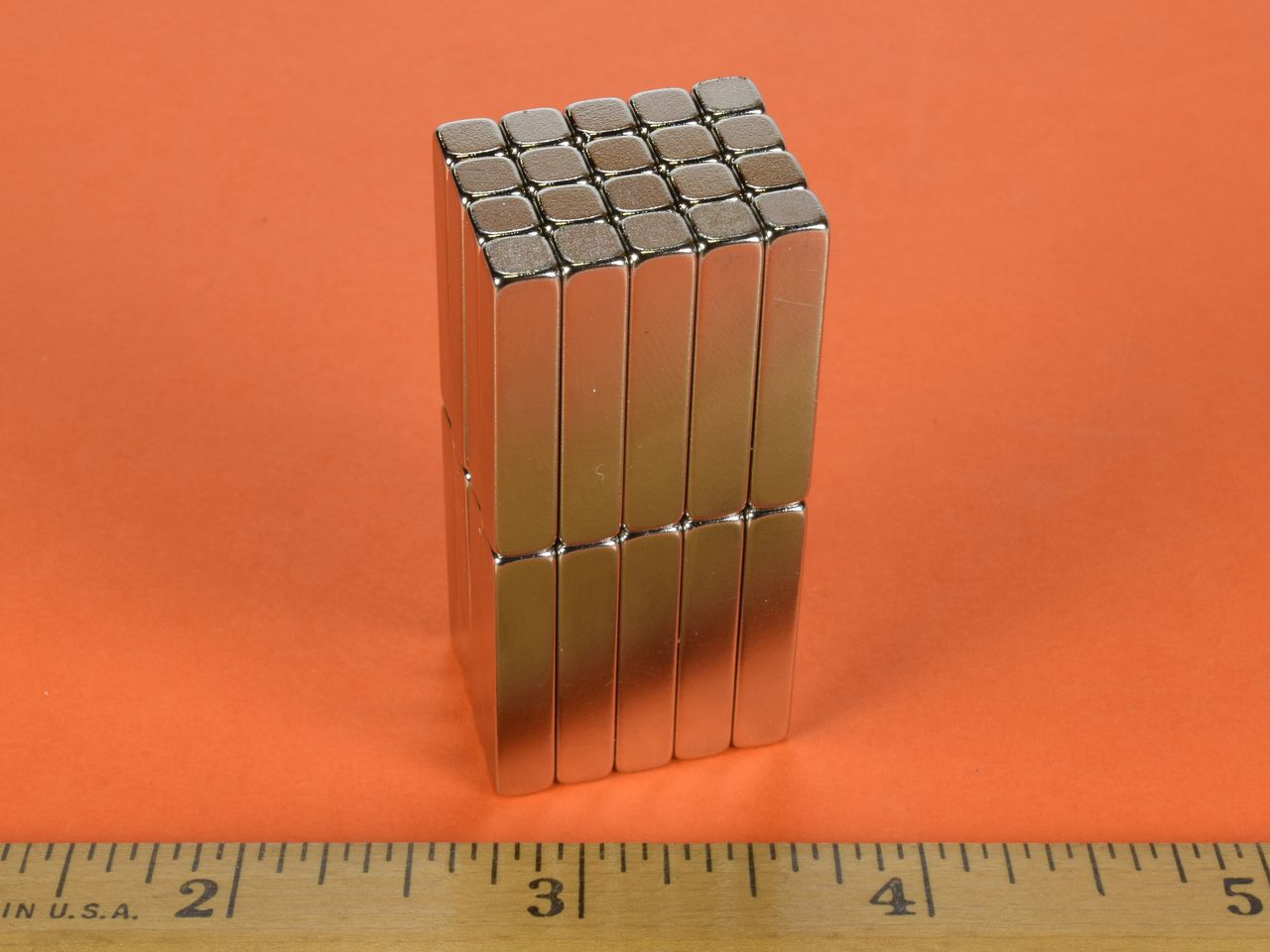

B33X0 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 3/16" x 3/16" x 1" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.152 oz. (4.31 g)
Pull Force, Case 1: 2.96 lbs
Pull Force, Case 2: 2.96 lbs
Surface Field: 6563 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

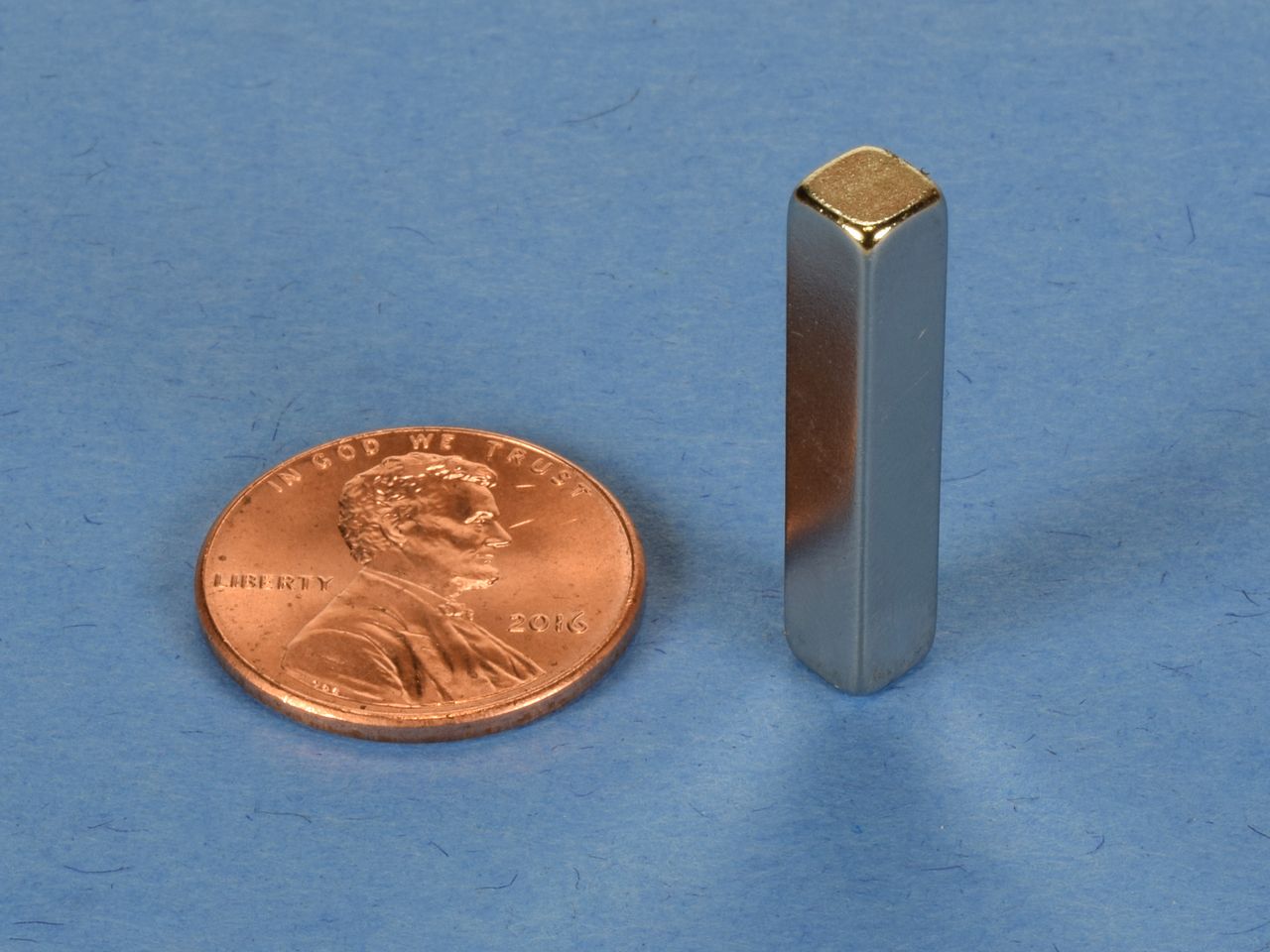

These blocks are magnetized through the 1" thickness so the poles are on the smaller 3/16" x 3/16" ends. Sort of a "square peg". Great for magnetic whiteboards and the fridge as well as art projects and crafts.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $1.55

Quantity:

Qty:

Price ea.	Qty
$1.55	1-9
$1.52	10-24
$1.48	25-49
$1.45	50-99
$1.41	100-249
$1.38	250-499
$1.34	500-999
$1.31	1000-2499
$1.27	2500-4999
$1.24	5000-9999
For pricing at higher order quantities, please email us!
