• Dimensions: 1/2" x 1/4" x 1/2" thick w/ hole to accept a #6 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.24 oz. (6.8 g)
• Pull Force, Case 1: 8.94 lbs
• Pull Force, Case 2: 10.49 lbs
• Surface Field: 5787 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

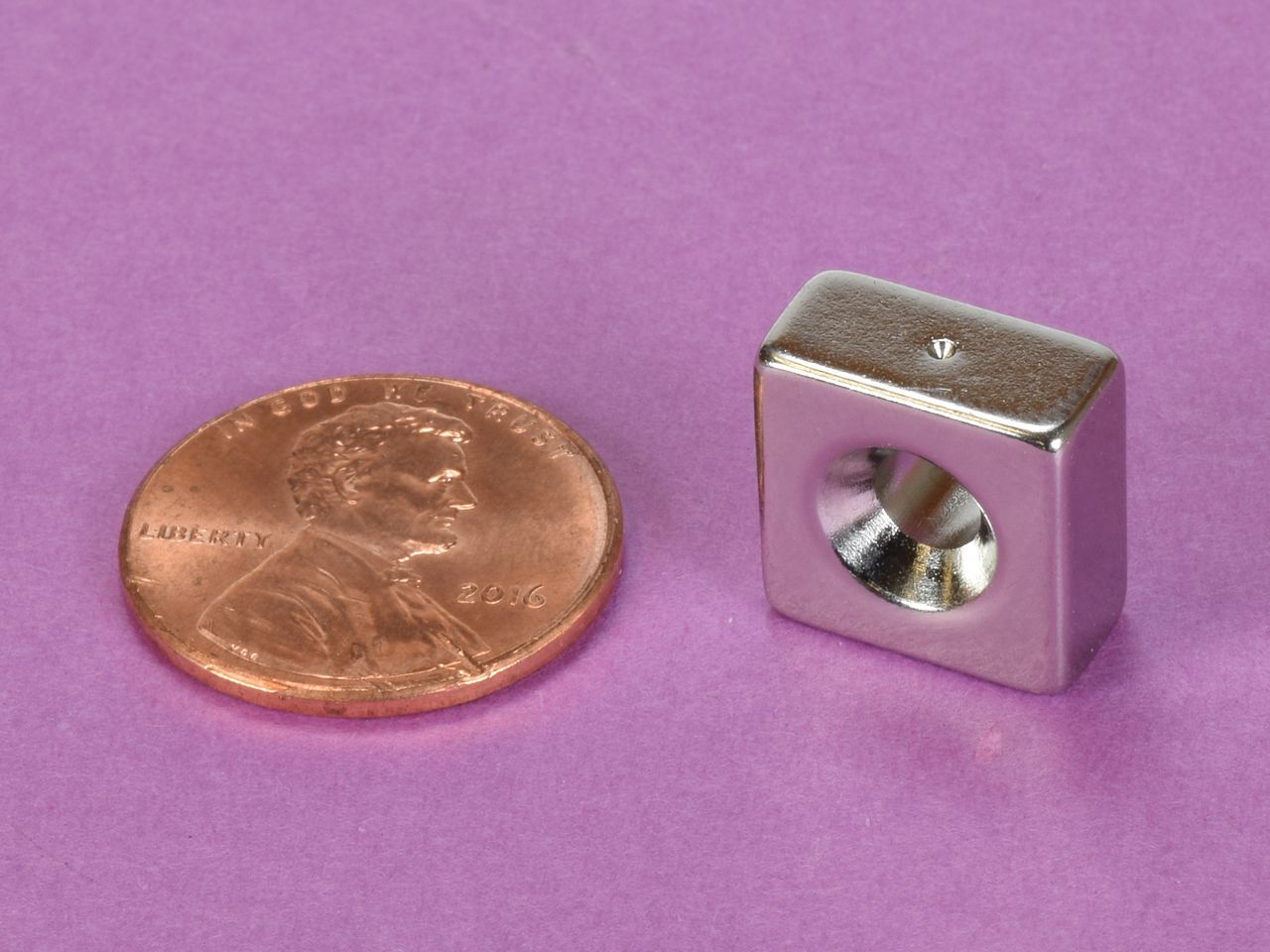

The B848CS is magnetized through one of the 1/2" directions, so it will have the highest attraction on its smaller sides versus its larger sides. The unique magnitization of this block makes it easy to grab and handle.

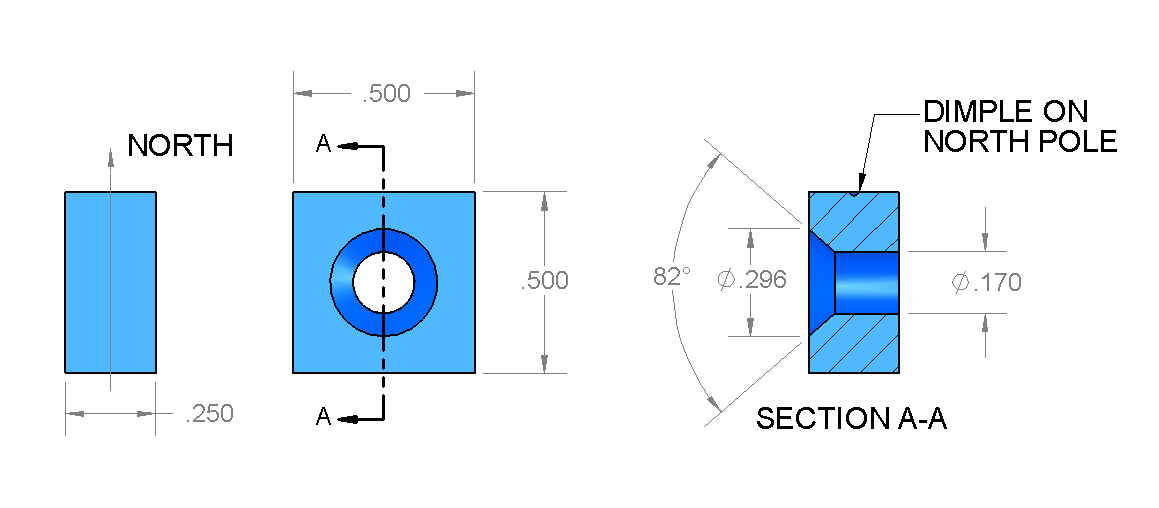

Unlike most of our Countersunk Magnets, the hole on this one is not parallel to the magnetization direction.  The hole is, "through the side."  The north and south poles of this magnet are not on the faces with the hole.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
