- Dimensions: 1 1/4" x 1/2" x 1/4" thick
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Thru Thickness
- Weight: 0.678 oz. (9.61 g)
- Pull Force, Case 1: 23.46 lbs
- Pull Force, Case 2: 48.47 lbs
- Surface Field: 3591 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

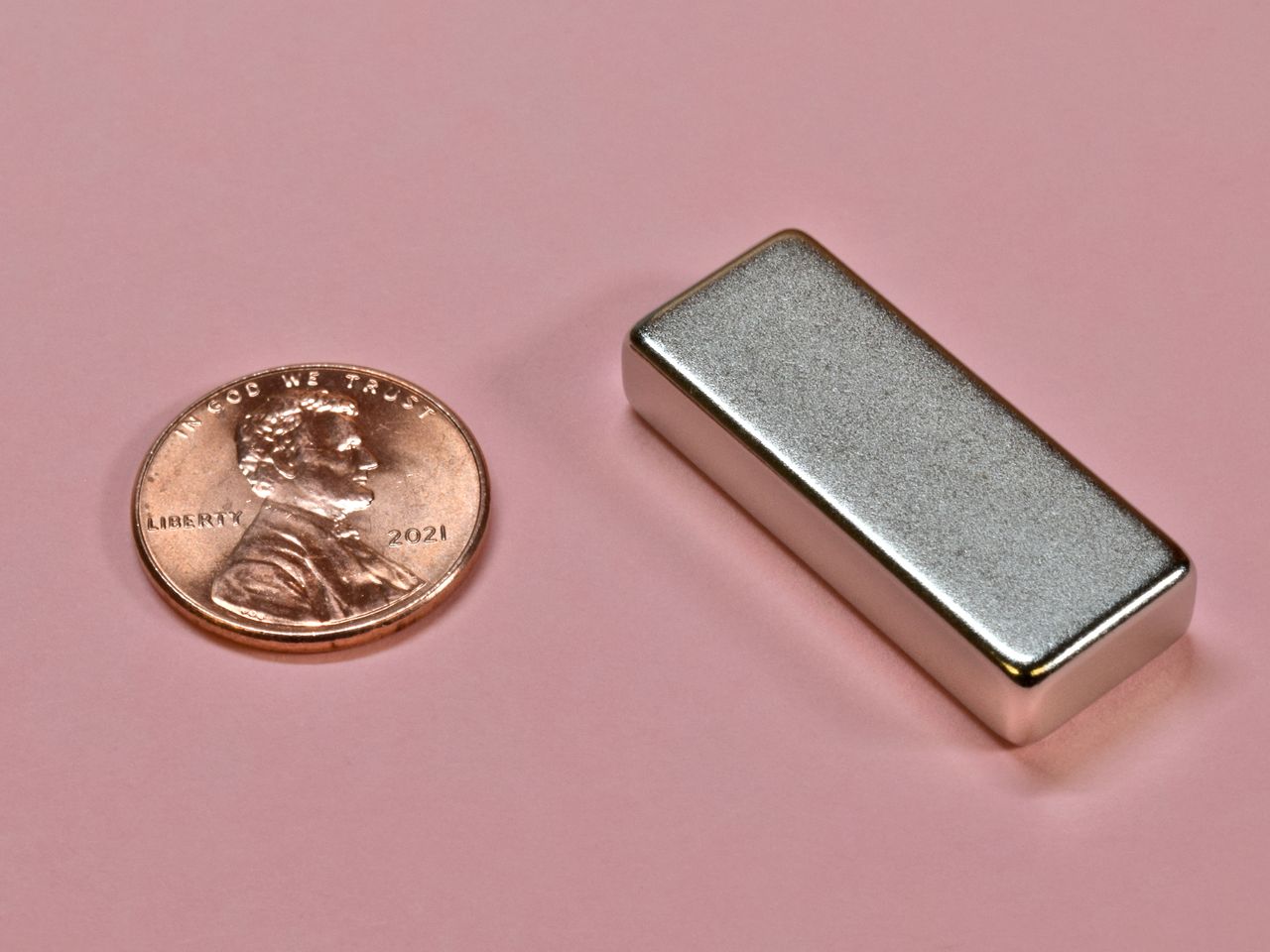

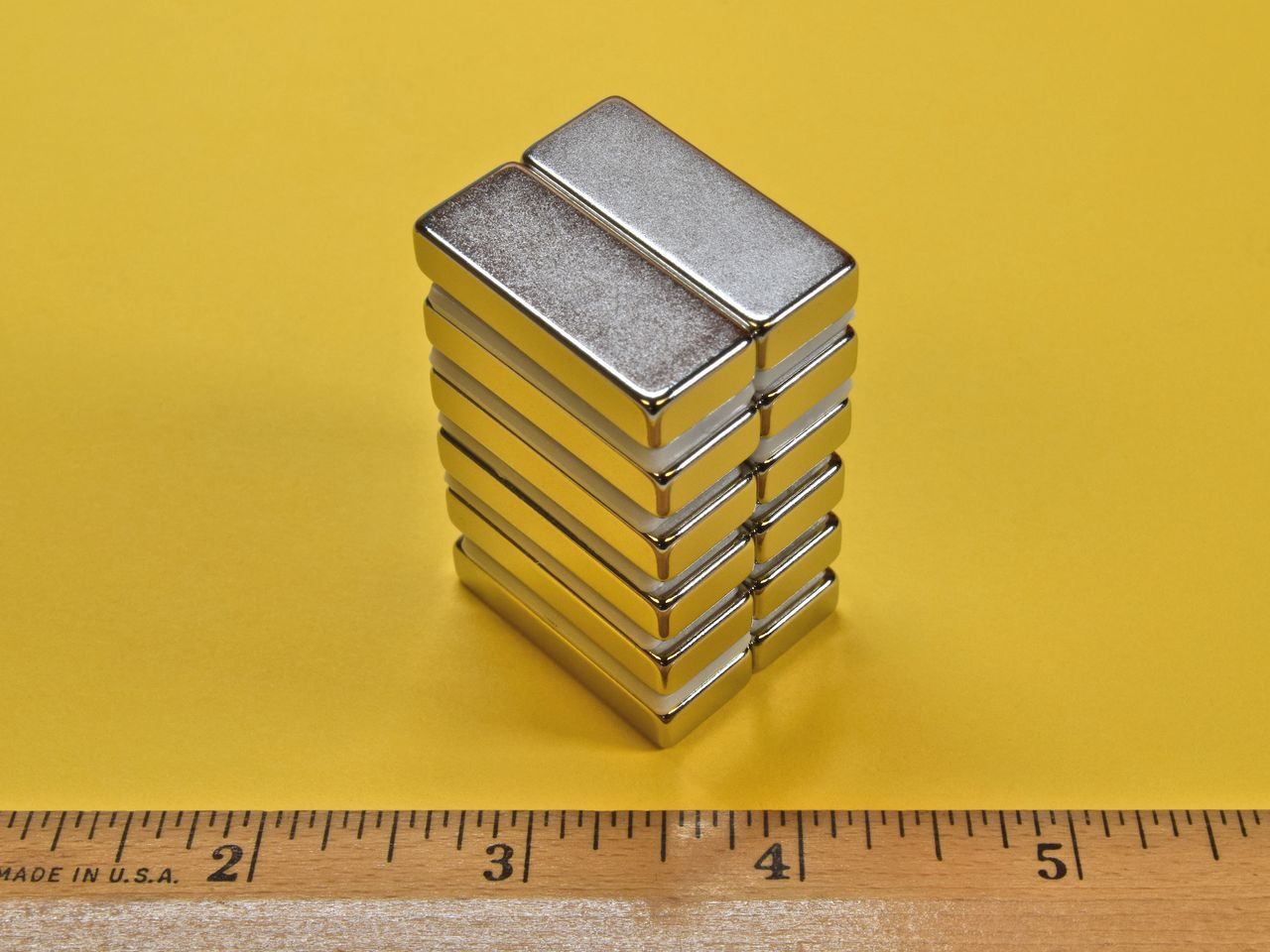

These blocks are a 1 1/4" long, in the popular 1/2" width and 1/4" thickness. They're very strong for their size! This unique size can be used for many different applications.
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. | |
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. | |
Pull Force, Case 3 vs. distance: Magnet to Magnet. | |
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. | |
Click this link for a depiction of the magnetic field. | |
View B-H curves for this magnet. |
