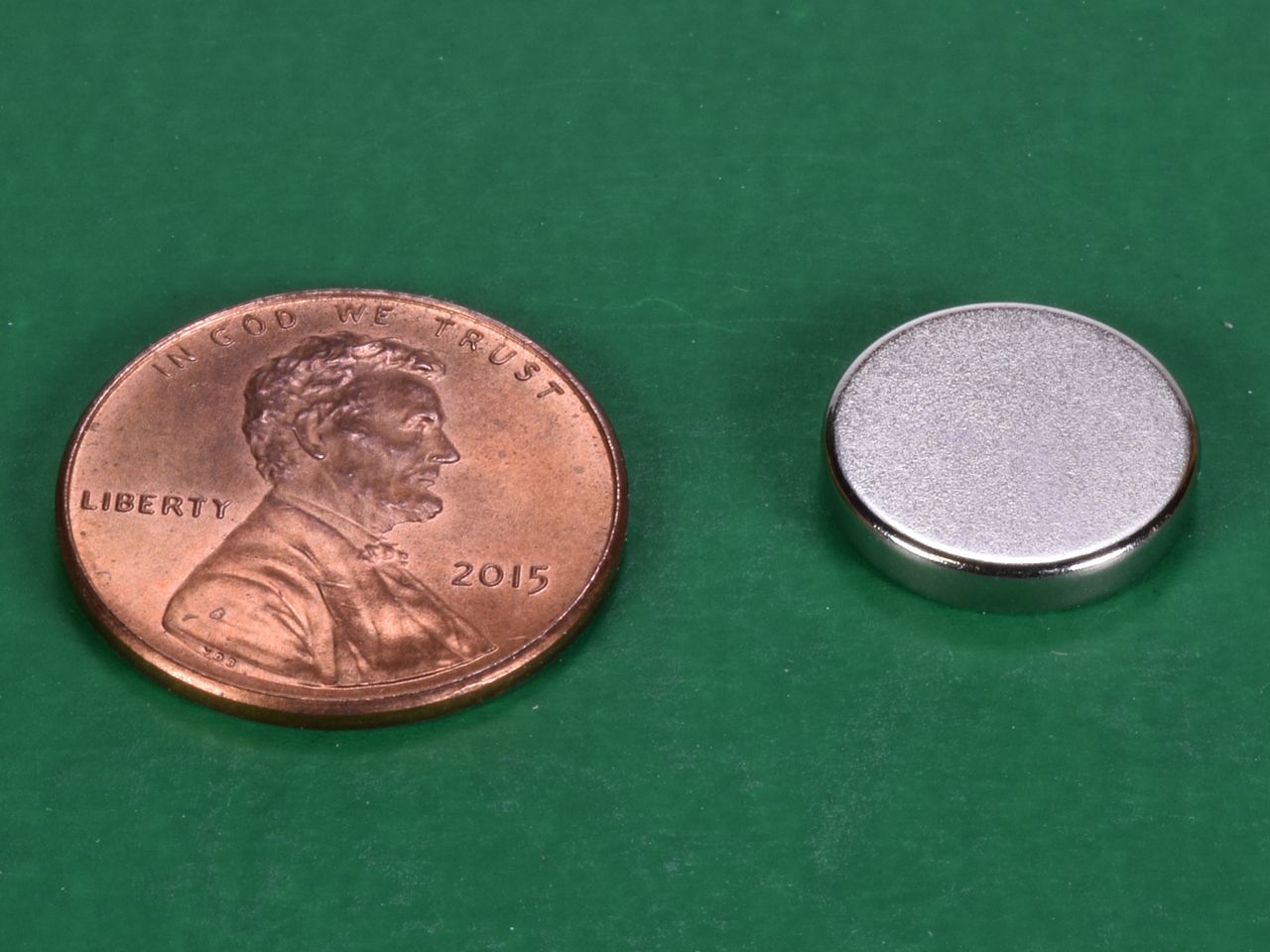

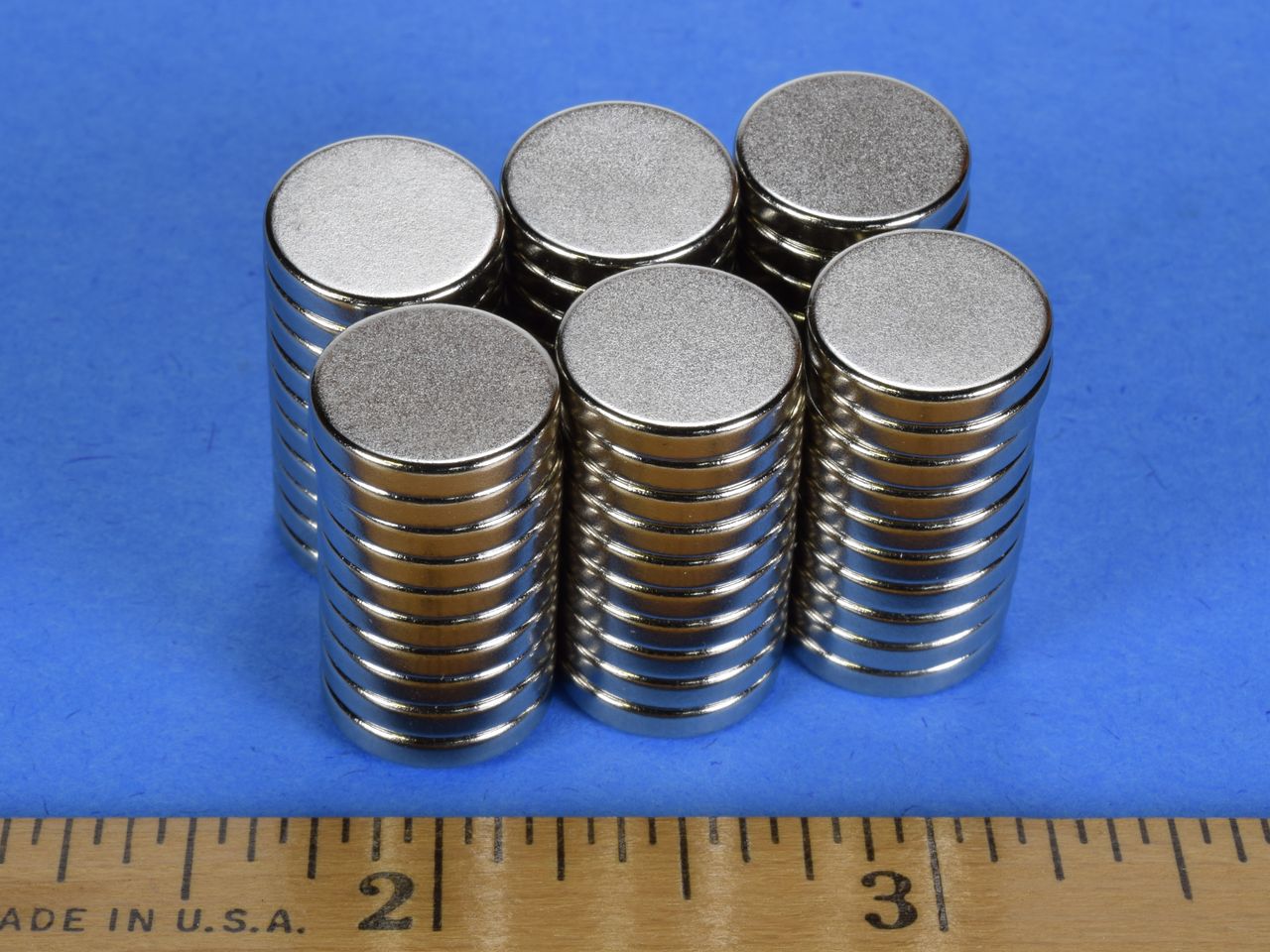

D803 - Neodymium Disc Magnet

• Dimensions: 1/2" dia. x 3/32" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0798 oz. (2.26 g)
• Pull Force, Case 1: 4.16 lbs
• Pull Force, Case 2: 15.00 lbs
• Surface Field: 2317 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe
