MMS-D-Y0

Description
Technical
Downloads

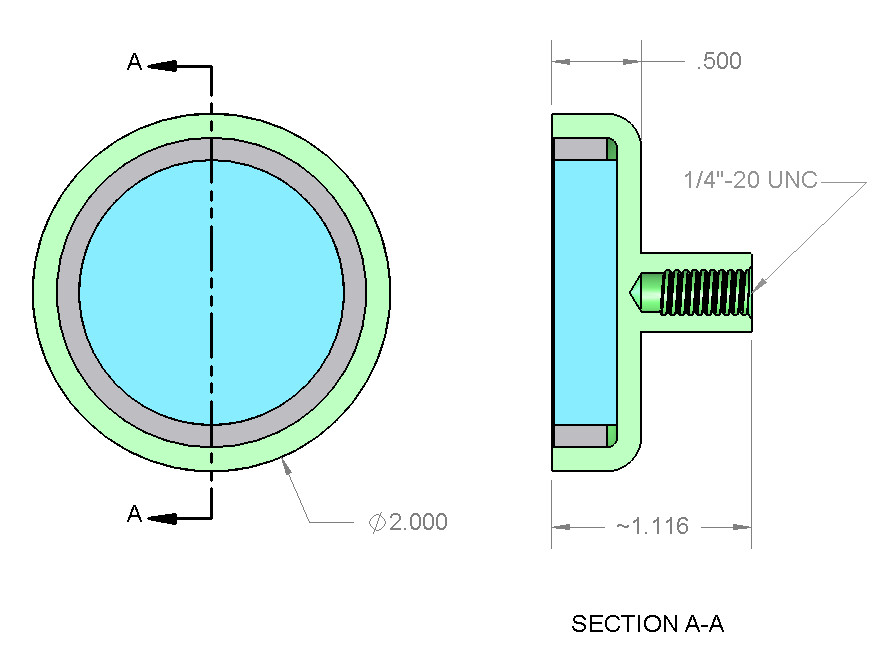

Dimensions:
    Diameter = 2" (2.00")
    Threaded Female Stud = 1/4"-20 UNC 2B
    Height = 1/2" (0.50")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 6.37 oz. (180.64 g)
Pull Force: 173.0 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

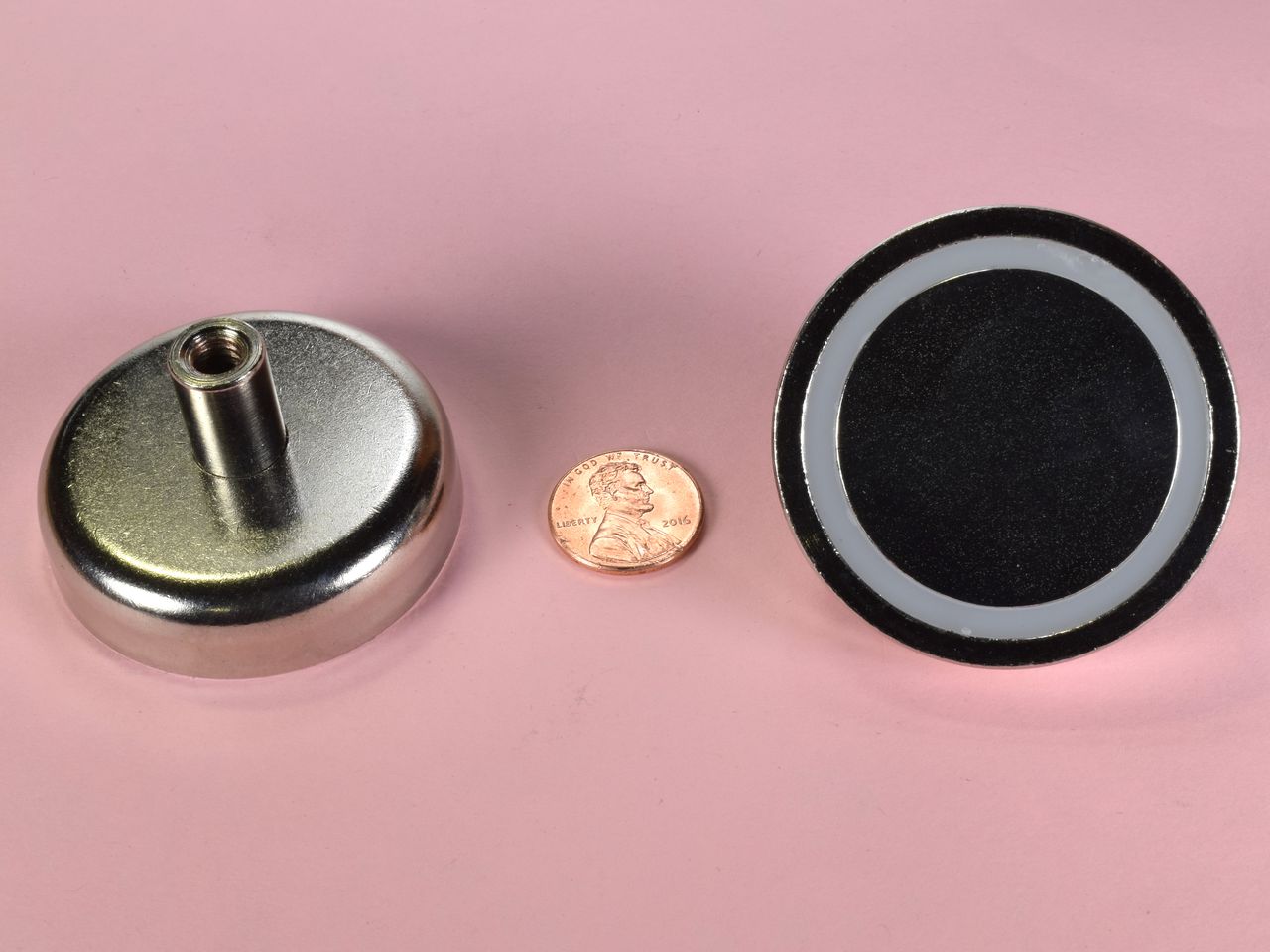

The MMS-D style is a flat mounting magnet with a female threaded shaft permanently attached. If you need a magnet to attach to something threaded, this is what you need.

We like this magnet, paired with a MMS-C-Y0, for the popular hobby of magnet fishing.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $19.91

Quantity:

Qty:

Price ea.	Qty
$19.91	1
$19.47	2
$19.03	3-4
$18.58	5-9
$18.14	10-24
$17.70	25-49
$17.26	50-99
$16.81	100-249
$16.37	250-499
$15.93	500-999
For pricing at higher order quantities, please email us!
