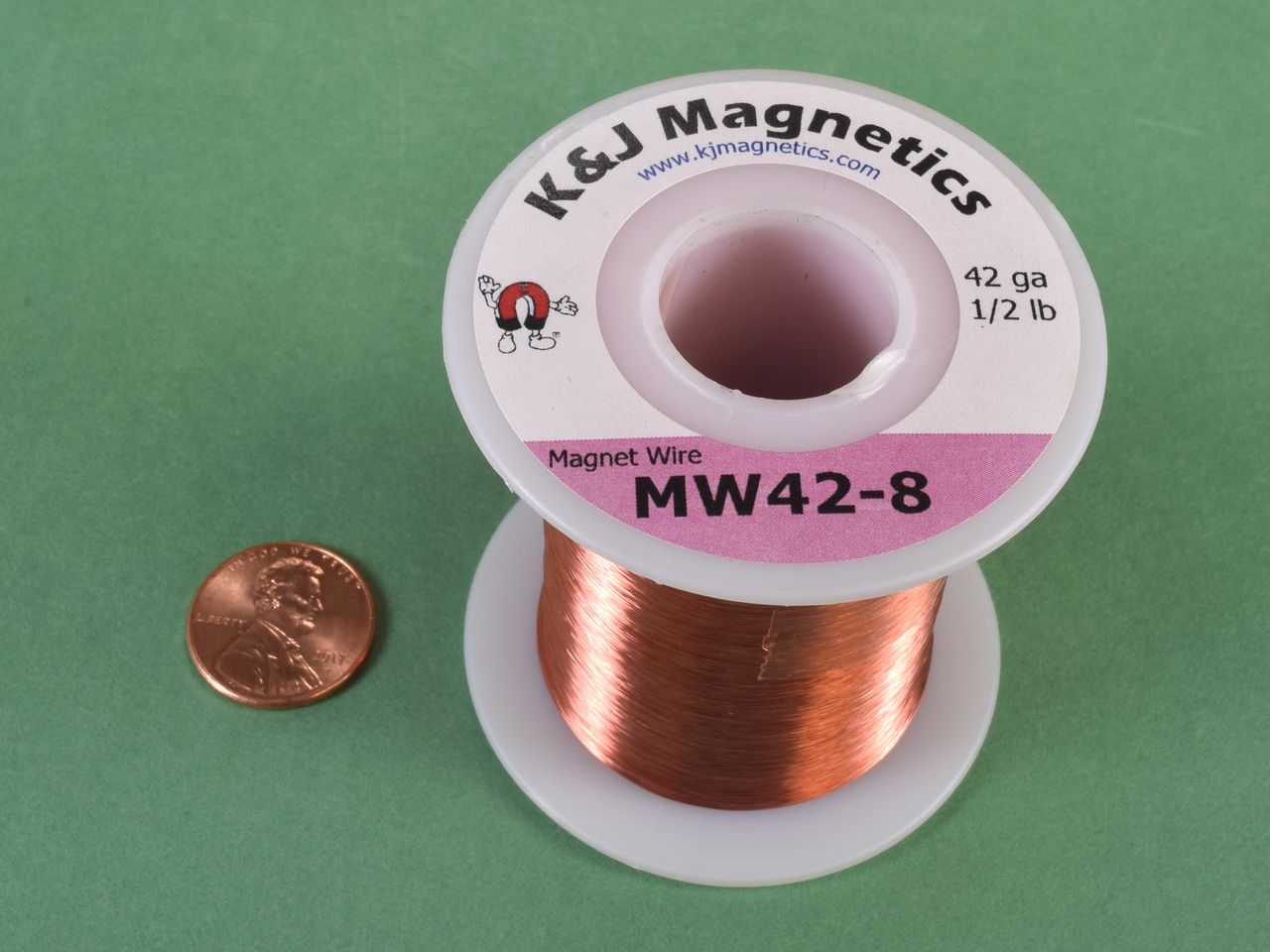

MW42-8 - Magnet Wire

MW42-8MW42-8
$21.95
-
+
  • product description icon   Description
42 Gauge Magnet Wire - 1/2 lb (~2560ft)

  • Solid copper conductor
  • Plain Enamel Insulation - Polyurethane / Polyamide (Nylon)

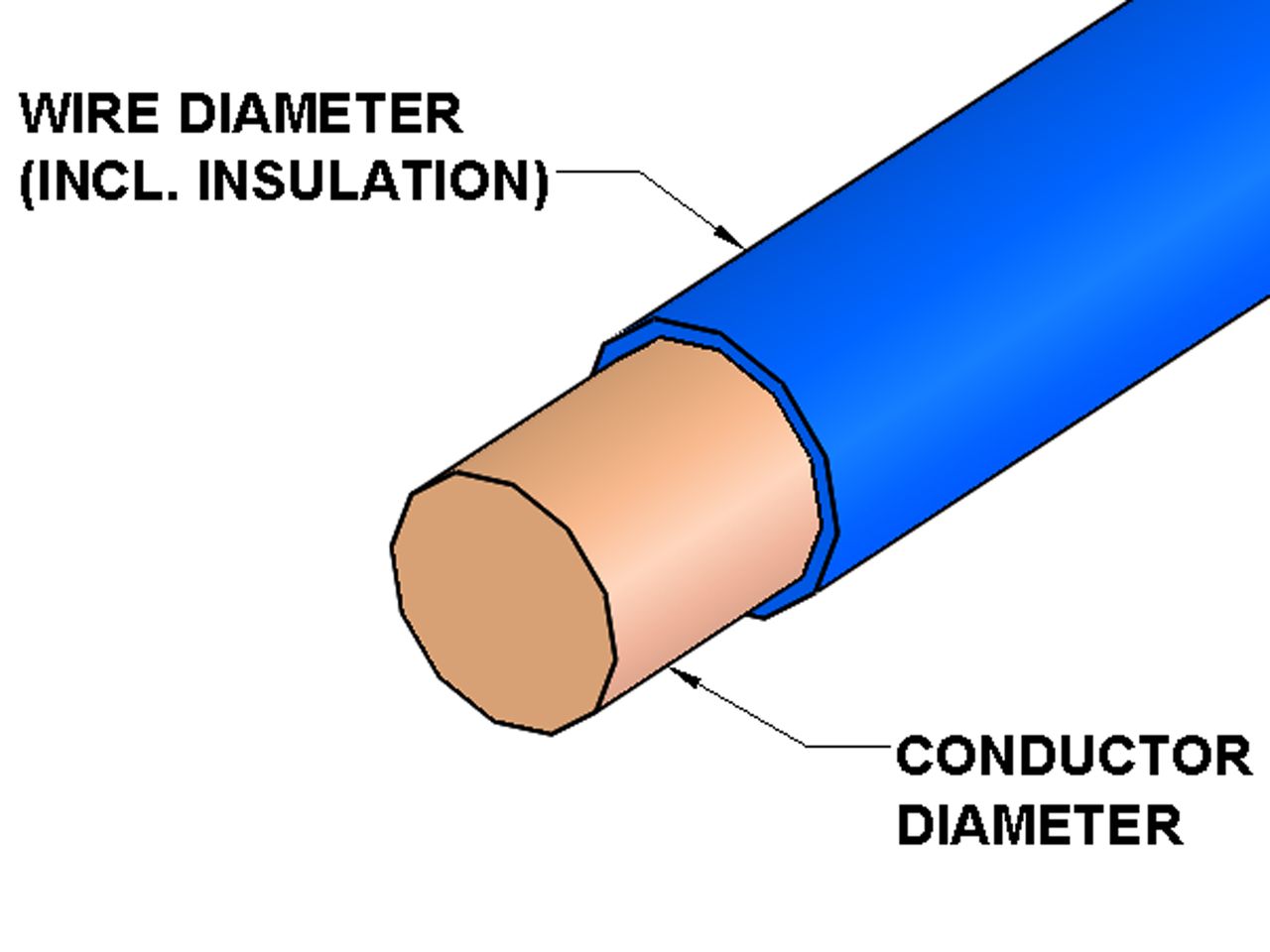

  • Wire Diameter: 0.003 in (0.076mm)
  • Temperature Range: -22ºF (-30ºC) to 311ºF (155ºC)
  • Solderable: 680°F (360°C)
  • MIL JW-1177/42, MW 80-C, Class 155
  • RoHS Compliant
Magnet wire is copper wire coated with a very thin layer of insulation (it is not a magnet). It is used for various applications but is mostly used for constructing windings in transformers, inductors, motors, speakers, electromagnets, and much more! This is also available in a 1/4 lb spool, MW42-4.
