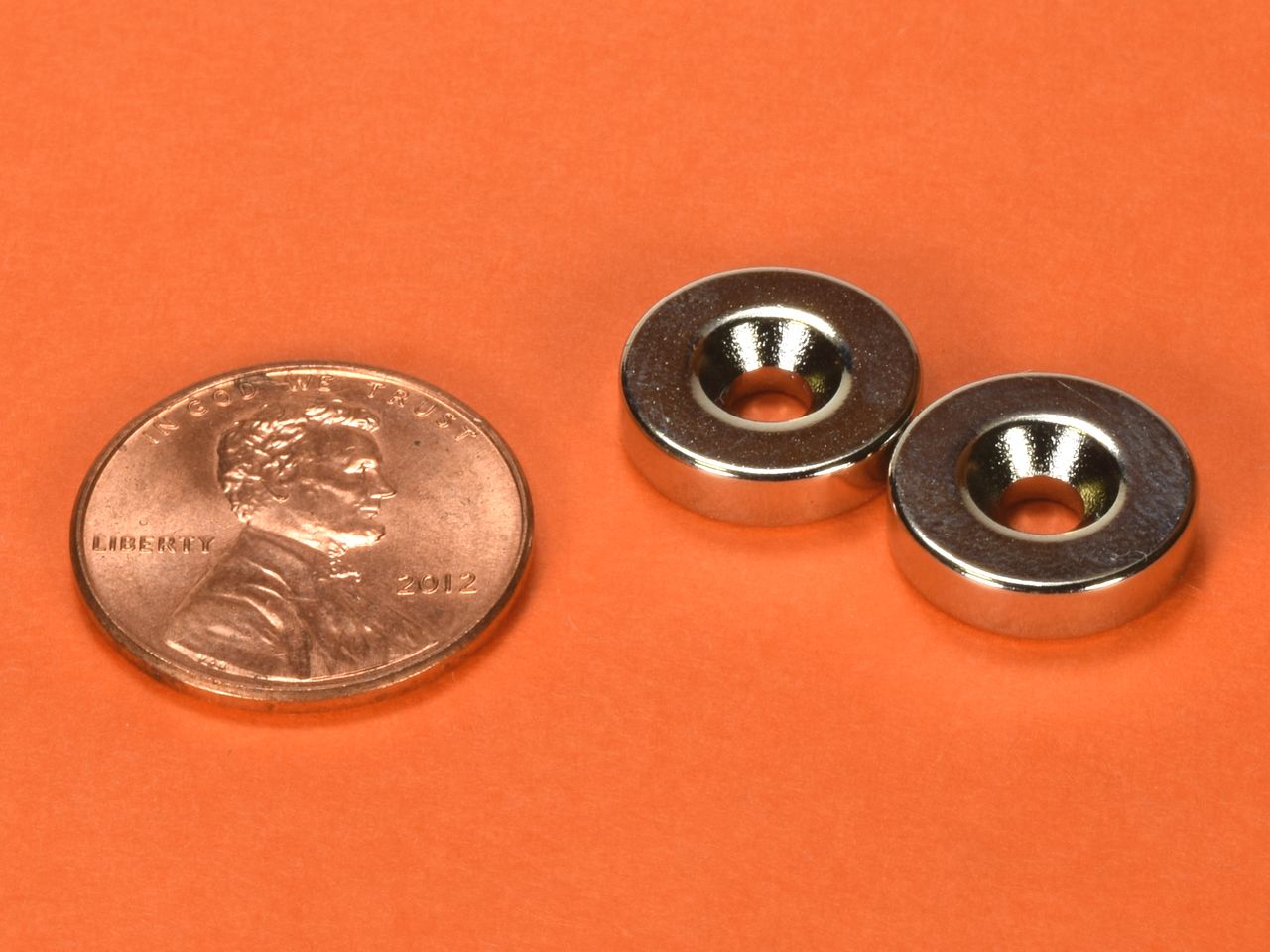

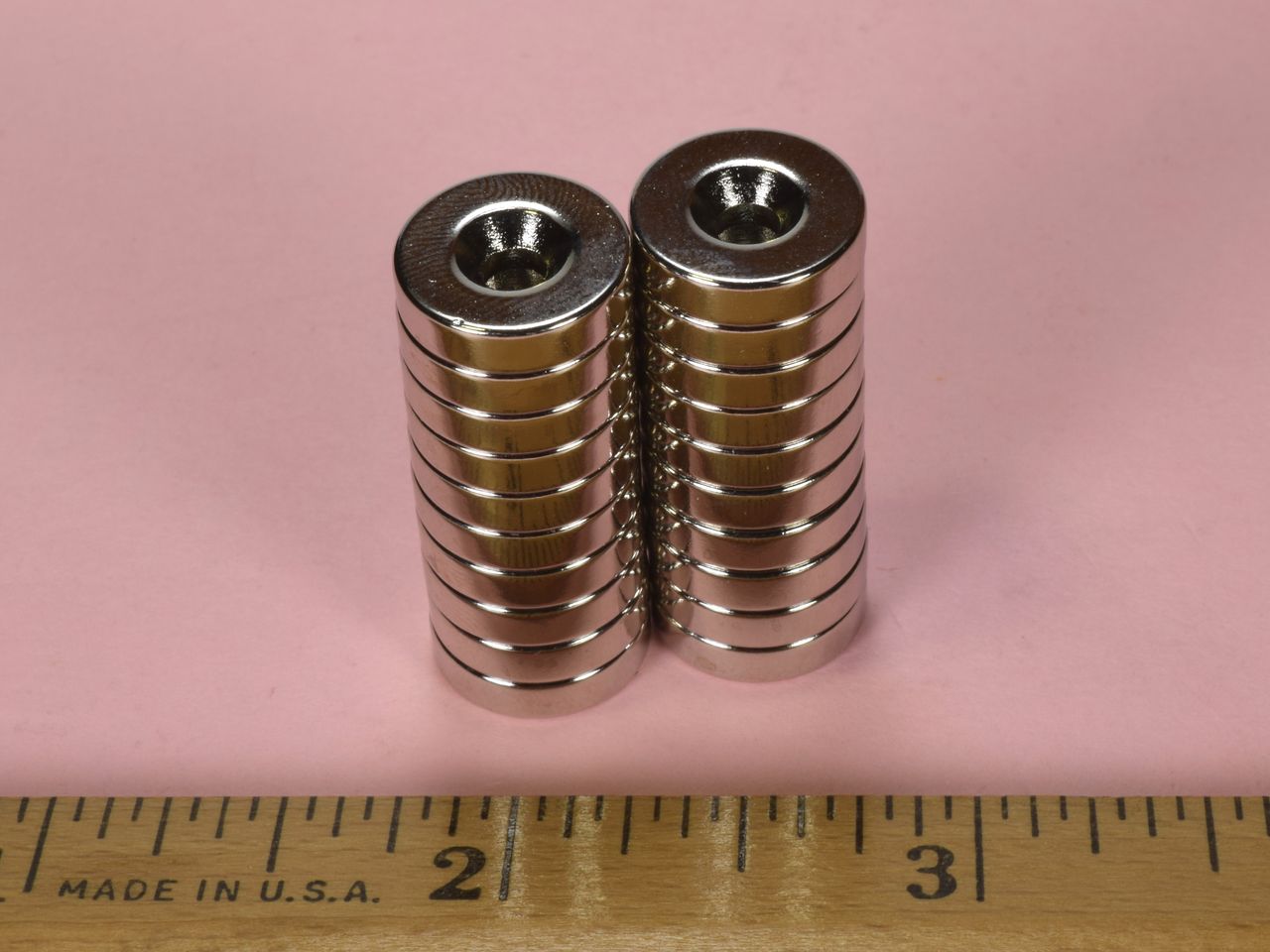

R822CS-P-N52 - Neodymium Countersunk Ring Magnet

r822cs-p-n52-neodymium-countersunk-ring-magnet--thumbnail-1r822cs-p-n52-neodymium-countersunk-ring-magnet--thumbnail-2
$2.39
-
+
Buy more, Save more!

Quantity based discounts

Price ea.QtyDiscount
$2.39 1-4
$2.345-92%
$2.2810-245%
$2.2325-497%
$2.1850-999%
$2.12100-24911%
$2.07250-49913%
$2.02500-99915%
$1.961000-249918%
$1.912500-499920%
Email us for even bigger discounts on higher order quantities
  • product description icon   Description
  • product technical icon   Technical
  • product download icon   Downloads

Strong countersunk ring magnets sized specifically for #4 flat-head screws.

These rings are sold by the pair. One will have the north pole on the side with the large end of the hole and one will have the south pole on that side, so they will attract each other when they are screwed in.

These countersunk rings can be used for a wide range of applications including door closures and tool hangers.

Case1Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
Case2Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
Case3Pull Force, Case 3 vs. distance: Magnet to Magnet.
Case4Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
BH CurvesView B-H curves for this magnet.



SpecSheetClick this link to download a PDF Specification Sheet.
DrawingClick this link to download a PDF drawing of this product.
CertClick this link to download a Certificate of Compliance for this product.
RoHSClick this link to download a RoHS Statement of Compliance for this product.
MSDSClick this link to download a Material Safety Data Sheet (MSDS) for this product.
CMRTClick this link to download a Conflict Minerals Reporting Template (CMRT).
OriginClick this link to download a Certificate of Origin for this product.
REACHClick this link for a REACH compliance statement.
STEPClick this link to download a .STEP file (3D model).
IGSClick this link to download an .IGS file (3D model).
