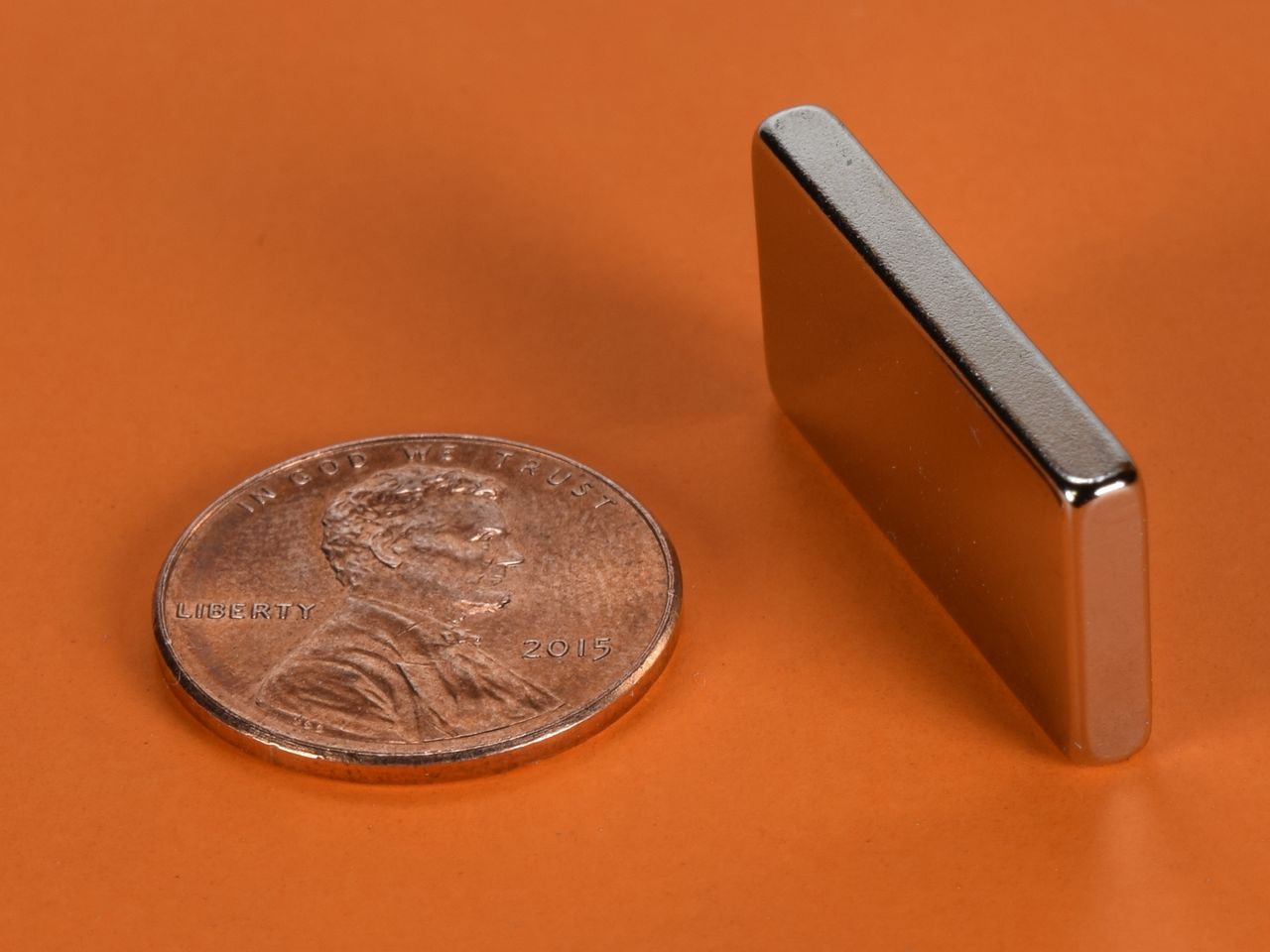

BX028 - Neodymium Block Magnet

• Dimensions: 1" x 1/8" x 1/2" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.271 oz. (7.68 g)
• Pull Force, Case 1: 9.67 lbs
• Pull Force, Case 2: 10.50 lbs
• Surface Field: 6231 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

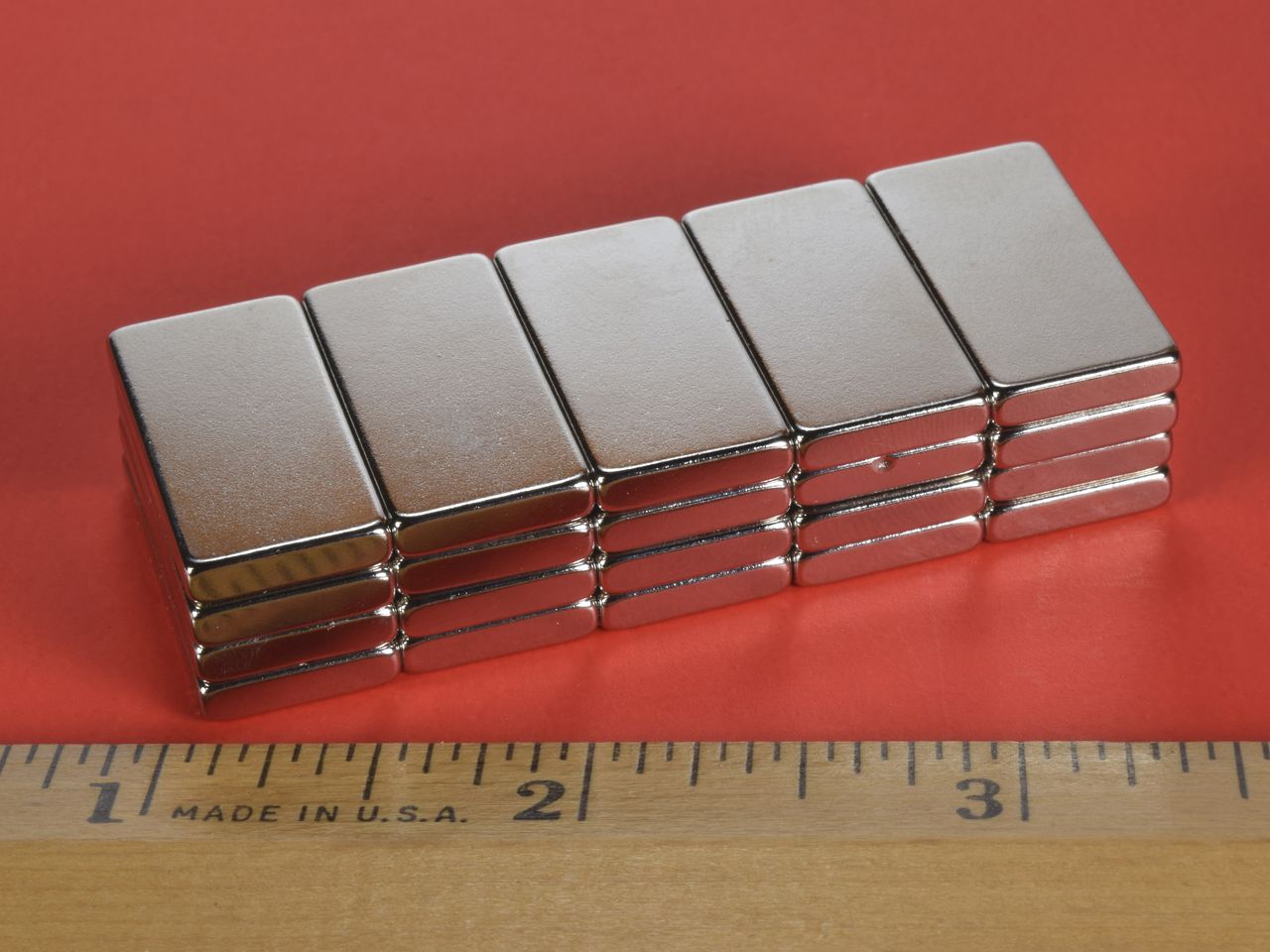

These small blocks are an interesting size. They are what is sometimes referred to as a "tall block" because of the magnetization through the thickness, 1/2" in this case. This causes them to "stack" less like pancakes and more like a sidewalk. Great for magnetic boards due to their ability to be grabbed easily.
