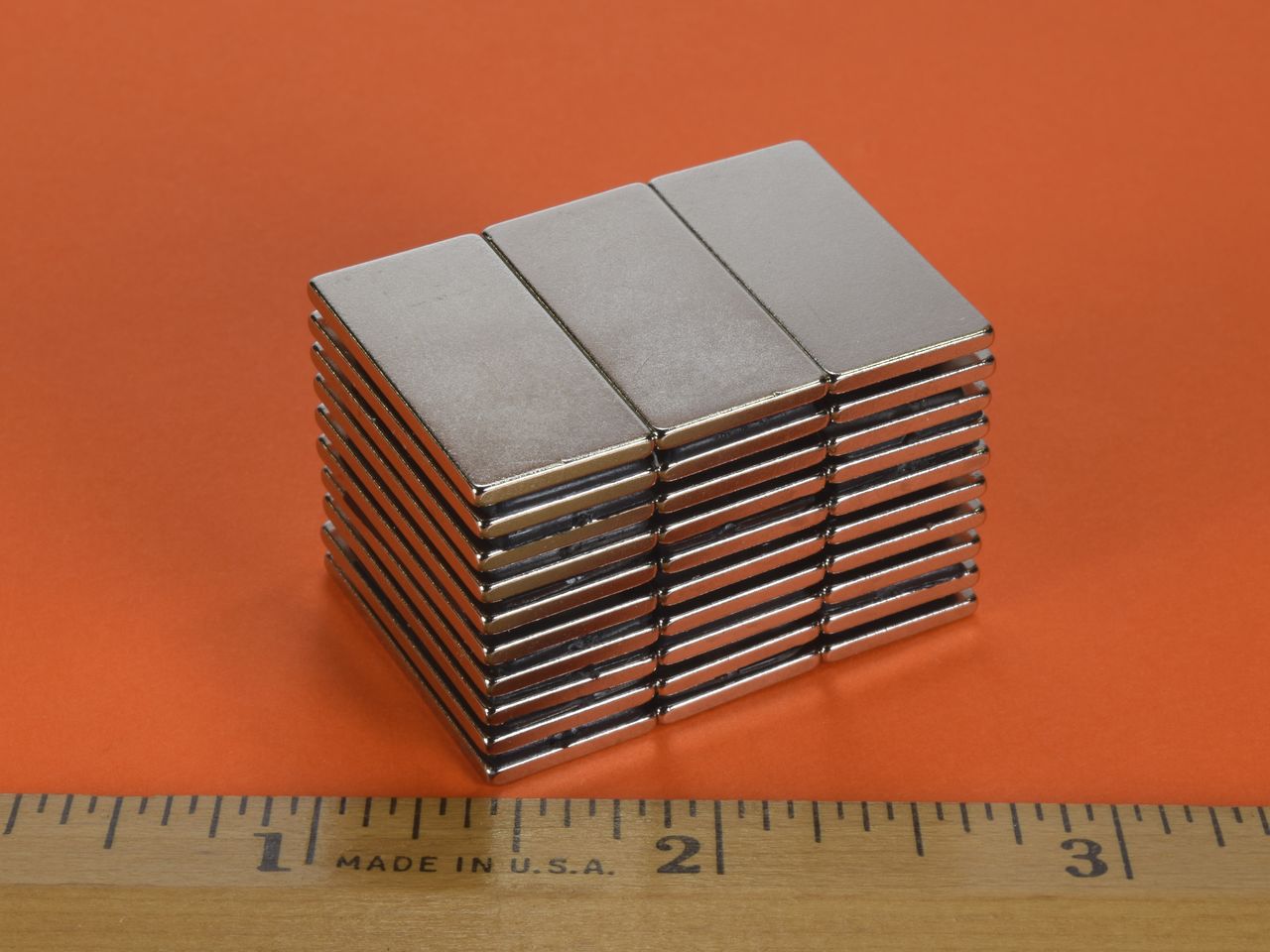

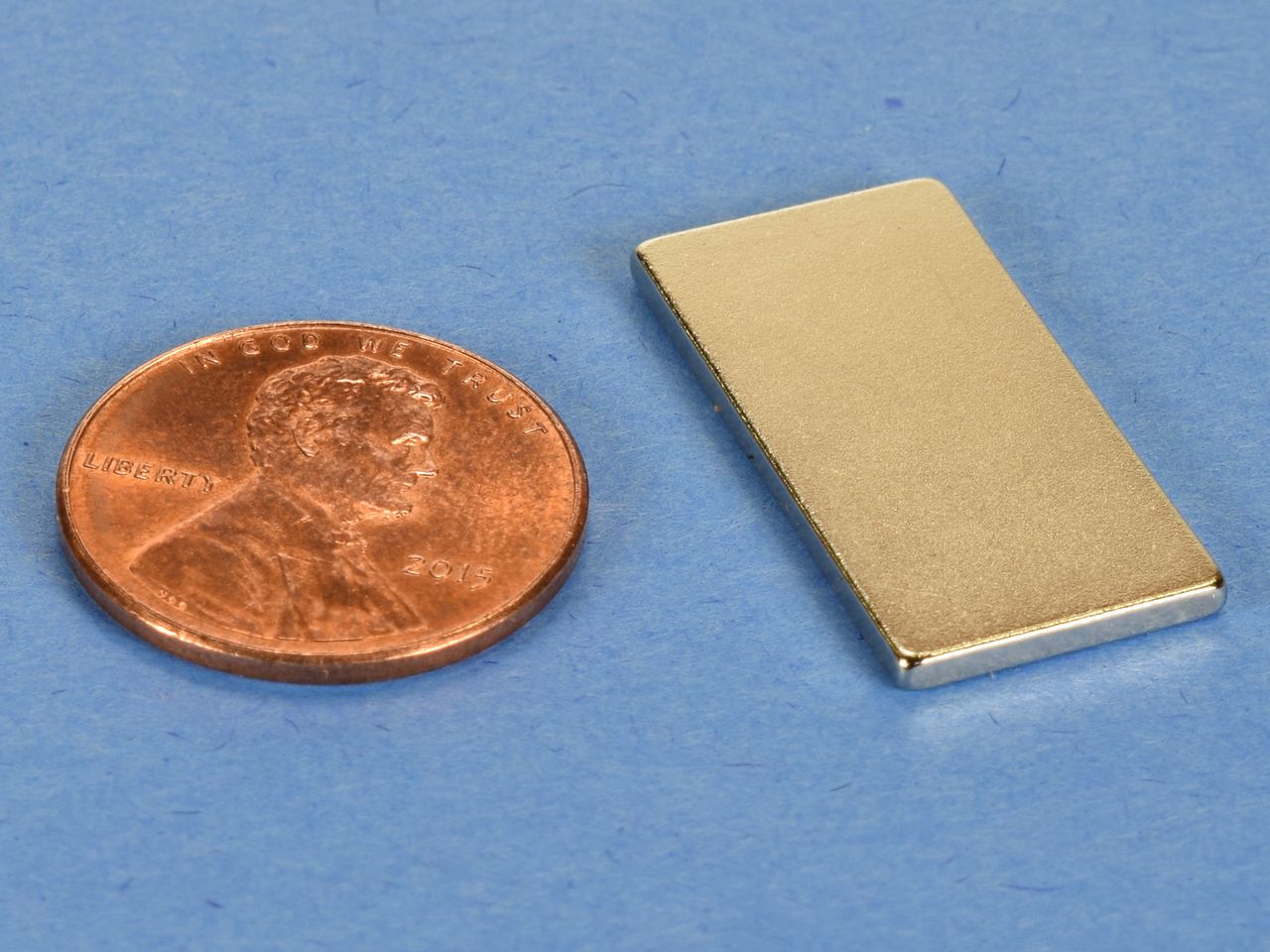

BX081

BX081

BX081

Description
Technical
Downloads

Dimensions: 1" x 1/2" x 1/16" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.136 oz. (3.84 g)
Pull Force, Case 1: 5.16 lbs
Pull Force, Case 2: 37.64 lbs
Surface Field: 1152 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Here we offer the popular size of 1" x 1/2" in 1/16" thickness. These thin blocks are extremely powerful for their size.

This size is also available in grade N52 as part number BX081-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $1.40

Out of Stock

Email me when available

Price ea.	Qty
$1.40	1-9
$1.37	10-24
$1.34	25-49
$1.31	50-99
$1.28	100-249
$1.24	250-499
$1.21	500-999
$1.18	1000-2499
$1.15	2500-4999
$1.12	5000-9999
For pricing at higher order quantities, please email us!
