BY08Y0 - Neodymium Block Magnet | K&J Magnetics

Description
Technical
Downloads

Dimensions: 2" x 1/2" x 2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 8.67 oz. (245.8 g)
Pull Force, Case 1: 90.62 lbs
Pull Force, Case 2: 90.62 lbs
Surface Field: 6367 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

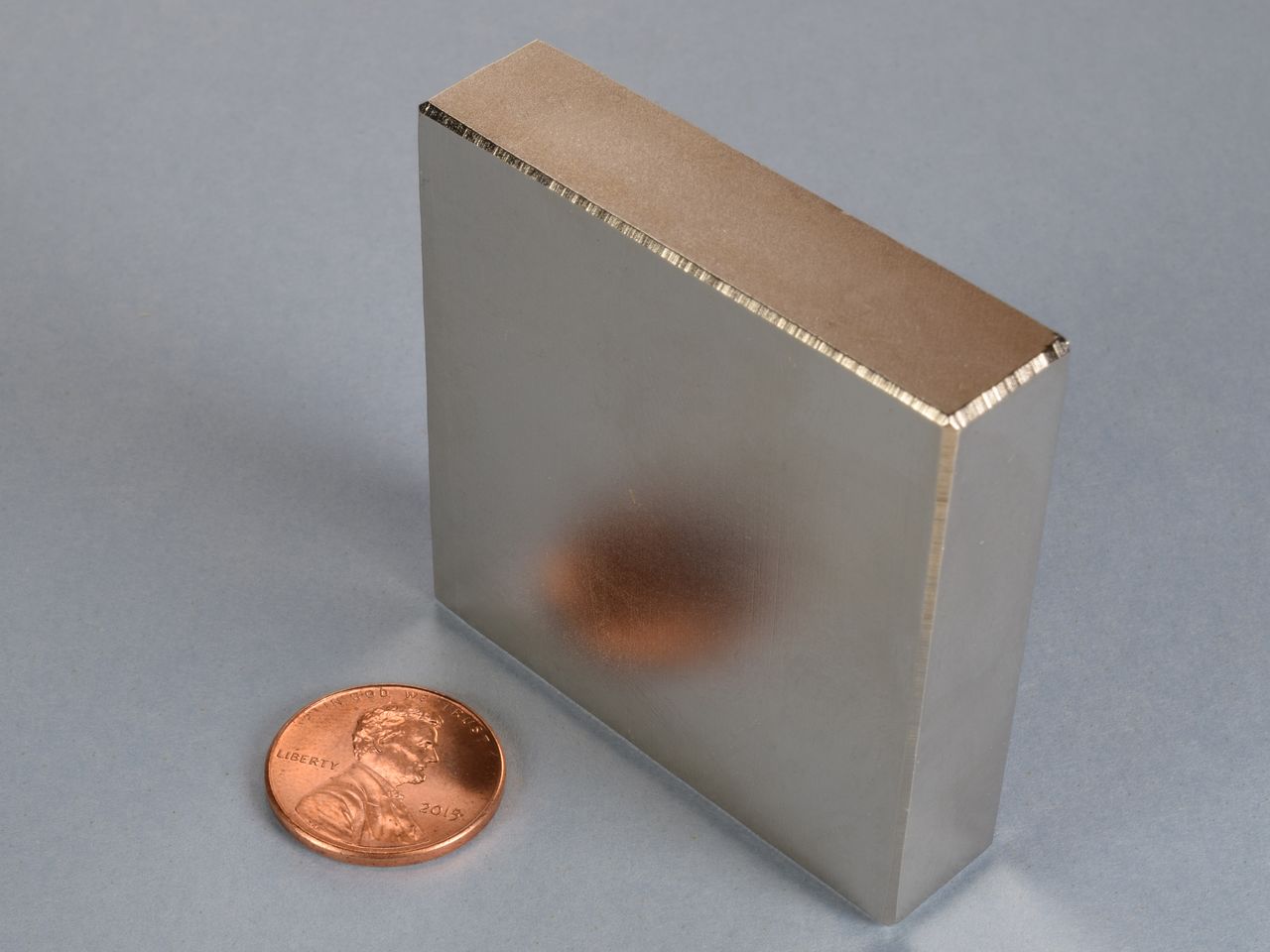

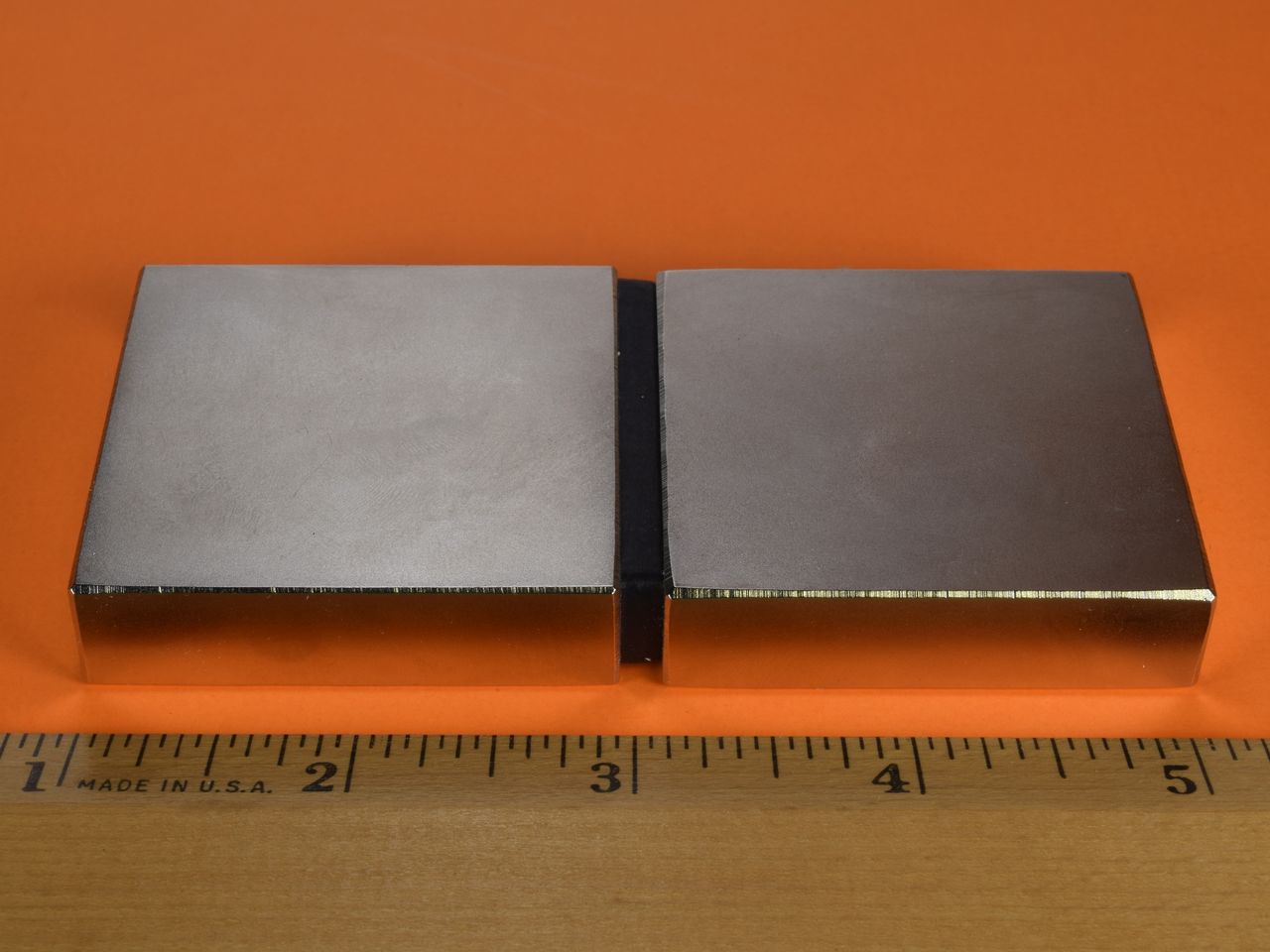

The BY08Y0 is a very strong and sturdy block magnet. These blocks are magnetized through the 2" dimension, with the poles located on the small ends, similar to the alnico bar magnets you remember from school, but much stronger.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.
