BY0Y01

Description
Technical
Downloads
Video

Dimensions: 2" x 2" x 1/16" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 1.08 oz. (30.73 g)
Pull Force, Case 1: 8.93 lbs
Pull Force, Case 2: 206.5 lbs
Surface Field: 374 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

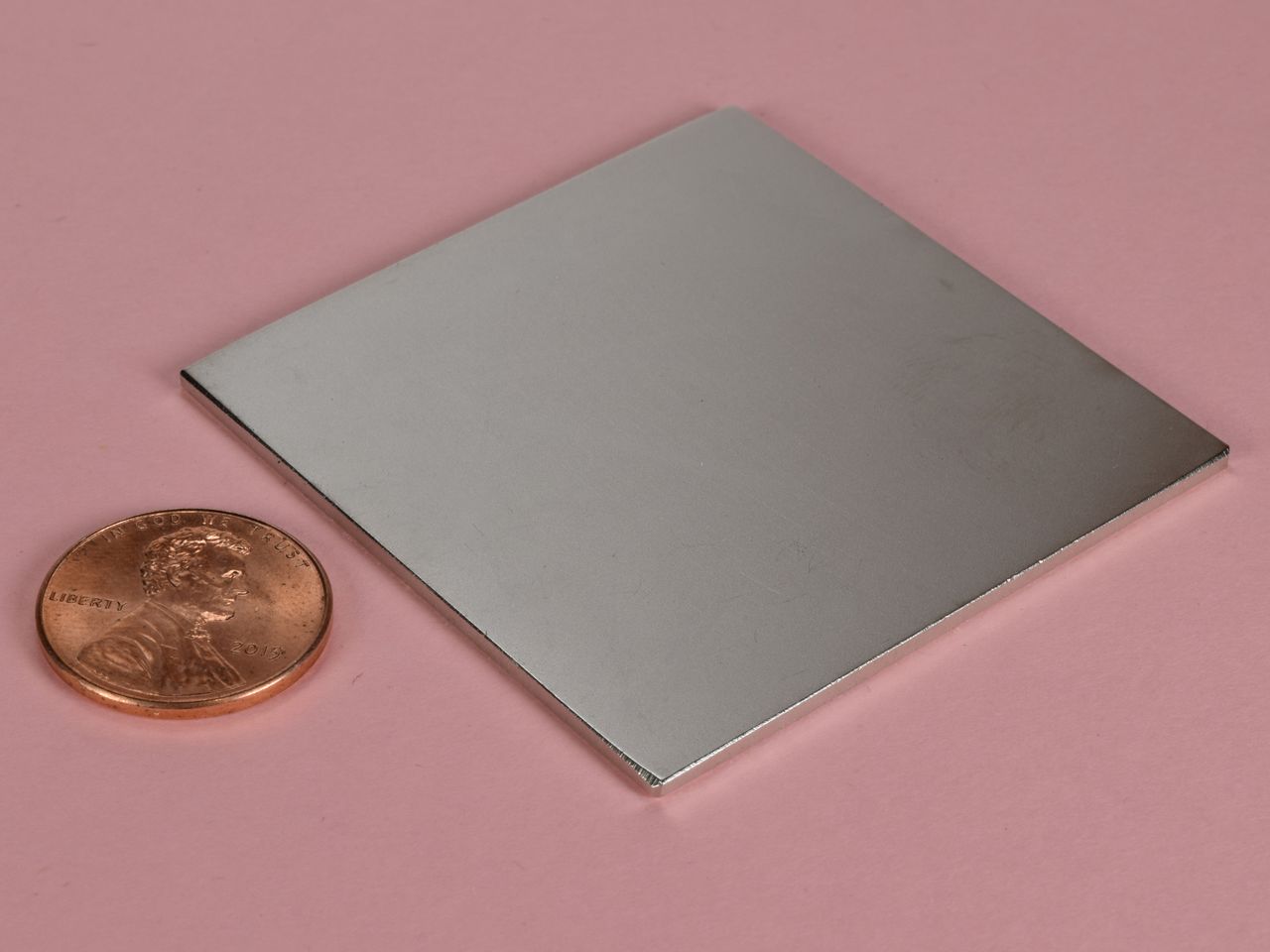

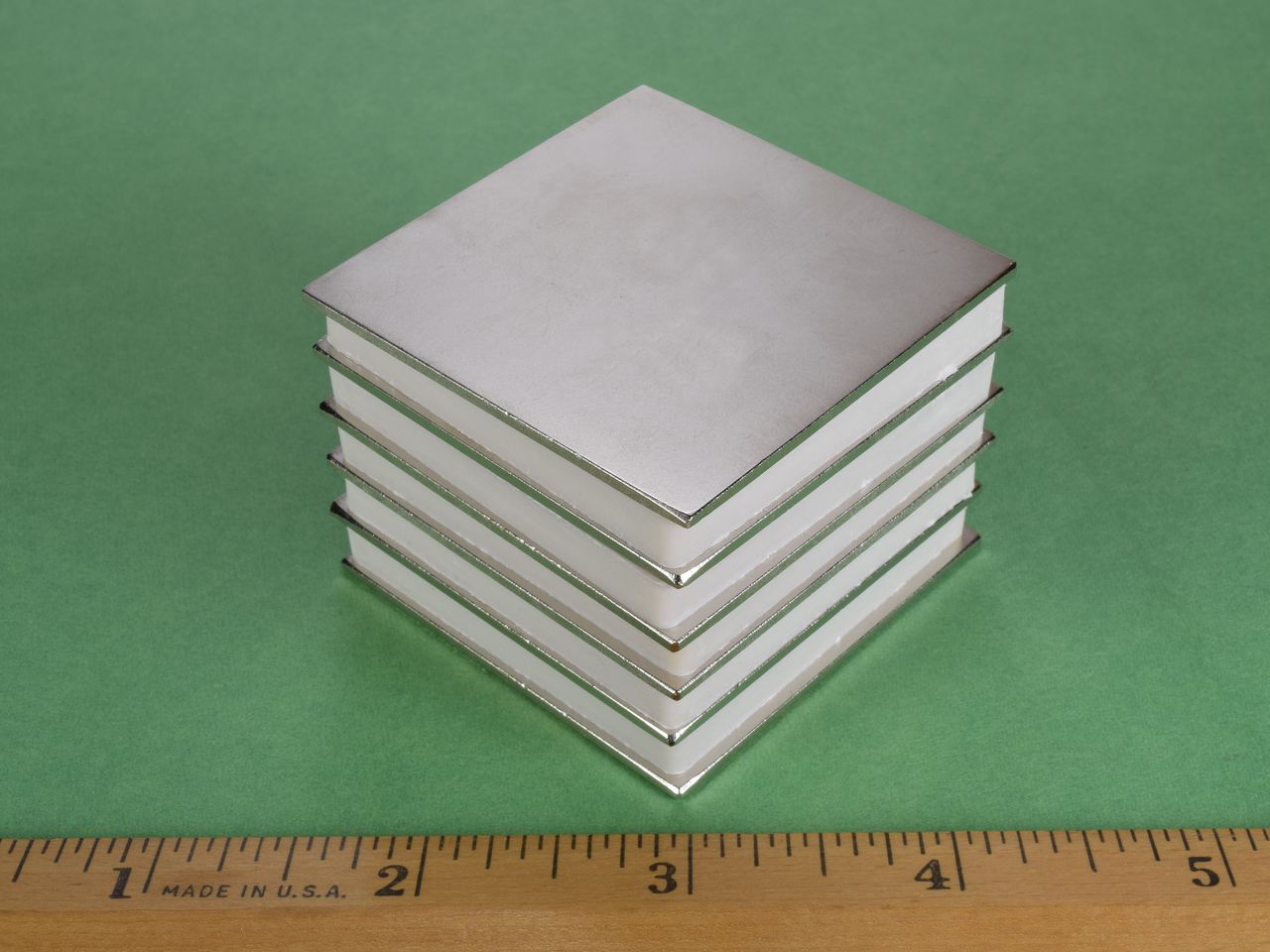

This large, thin magnet is has the potential to be very powerful in the right scenario. They also need to be handled with great care. You are not likely to be pinched but because of their thickness, they can be somewhat fragile. A unique magnet for a unique application!

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $9.36

Quantity:

Qty:

Price ea.	Qty
$9.36	1
$9.15	2-4
$8.94	5-9
$8.74	10-24
$8.53	25-49
$8.32	50-99
$8.11	100-249
$7.91	250-499
$7.70	500-999
$7.49	1000-2499
For pricing at higher order quantities, please email us!
