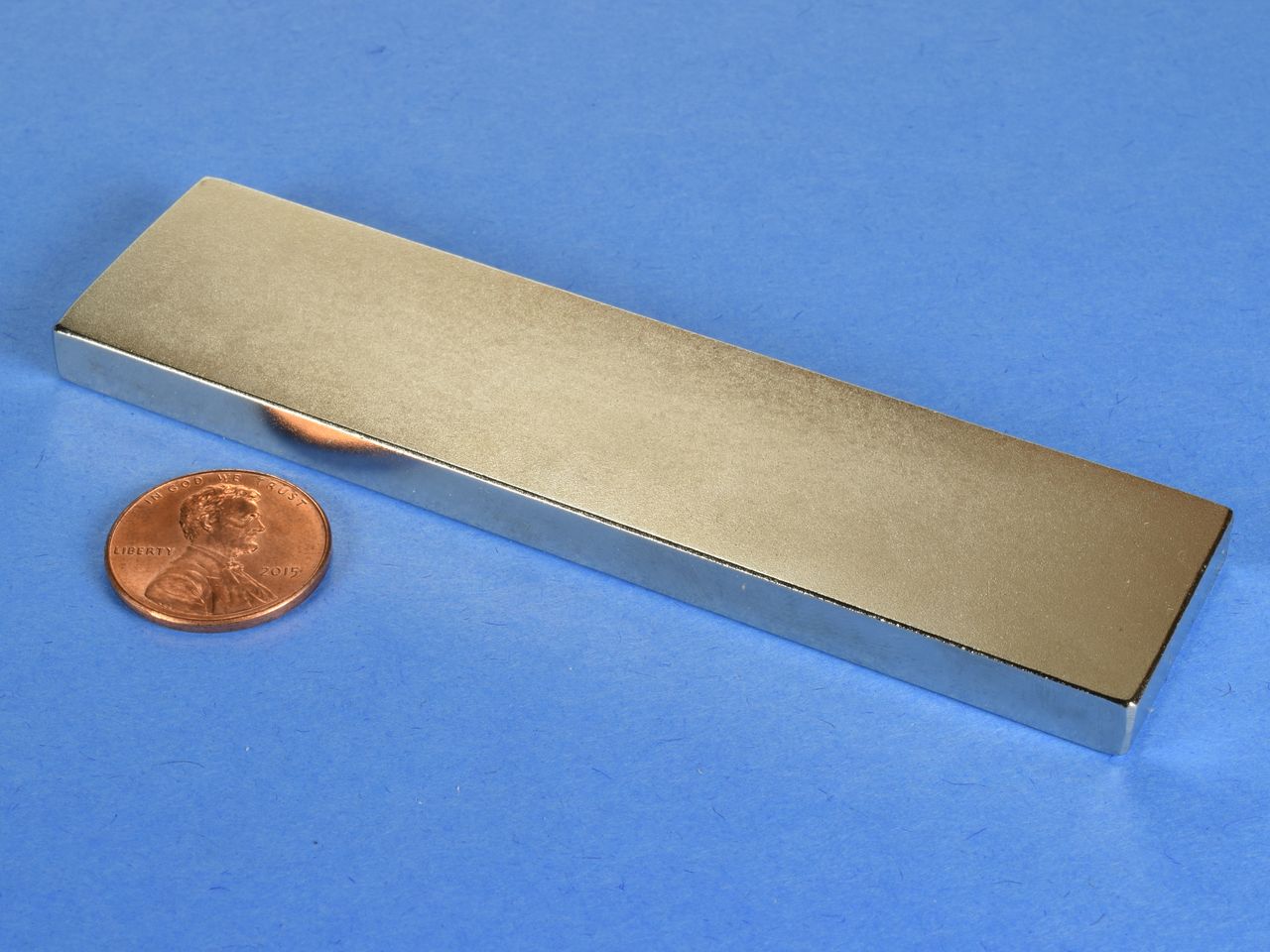

BZX0X04 - Neodymium Block Magnet

• Dimensions: 4" x 1" x 1/4" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 4.34 oz. (122.9 g)
• Pull Force, Case 1: 49.69 lbs
• Pull Force, Case 2: 240.6 lbs
• Surface Field: 2012 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

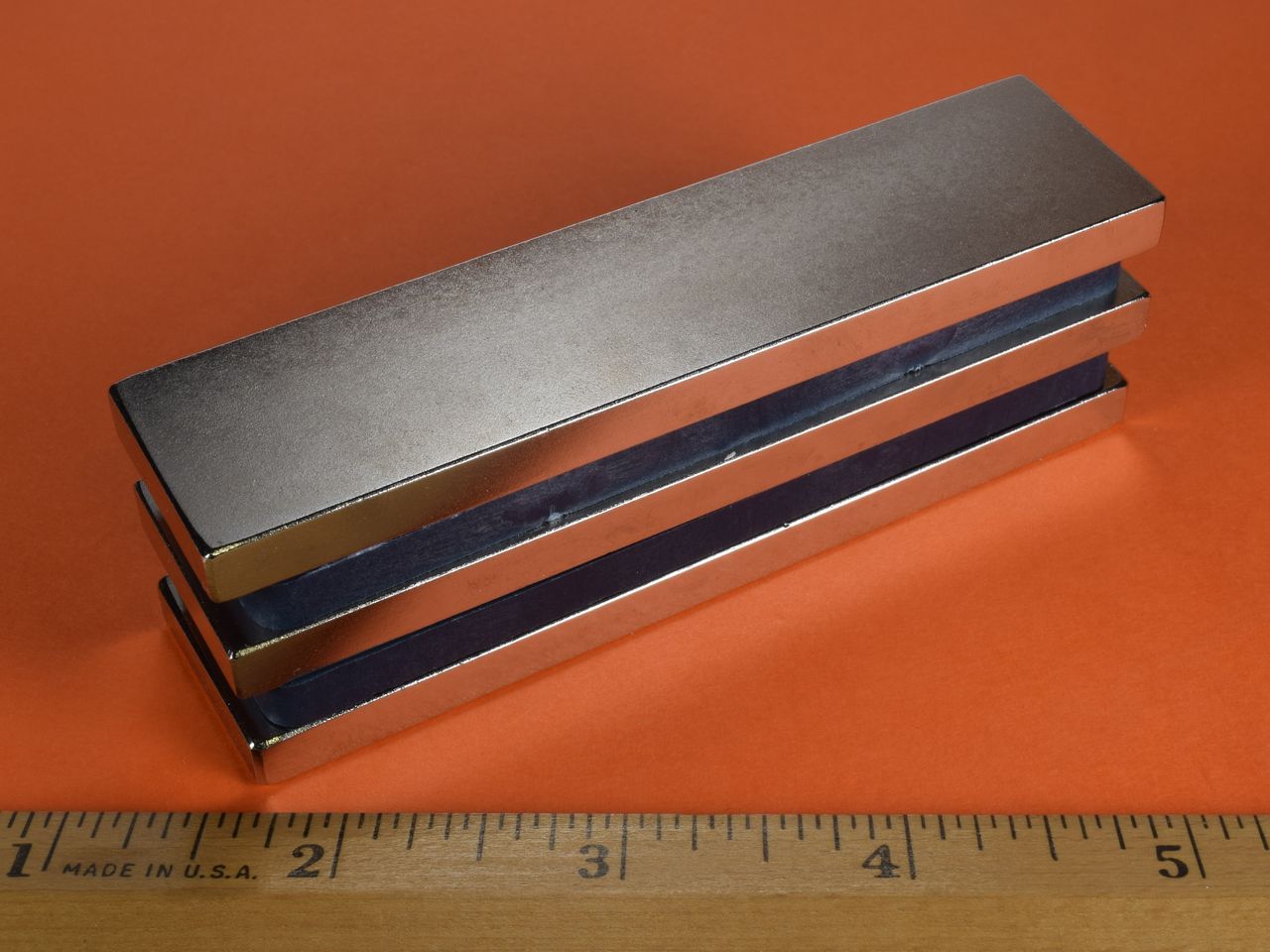

These long blocks are incredibly powerful. They will pinch fingers if they are not handled with the respect they deserve. These blocks should only be purchased by persons experienced in handling large neodymium magnets.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
