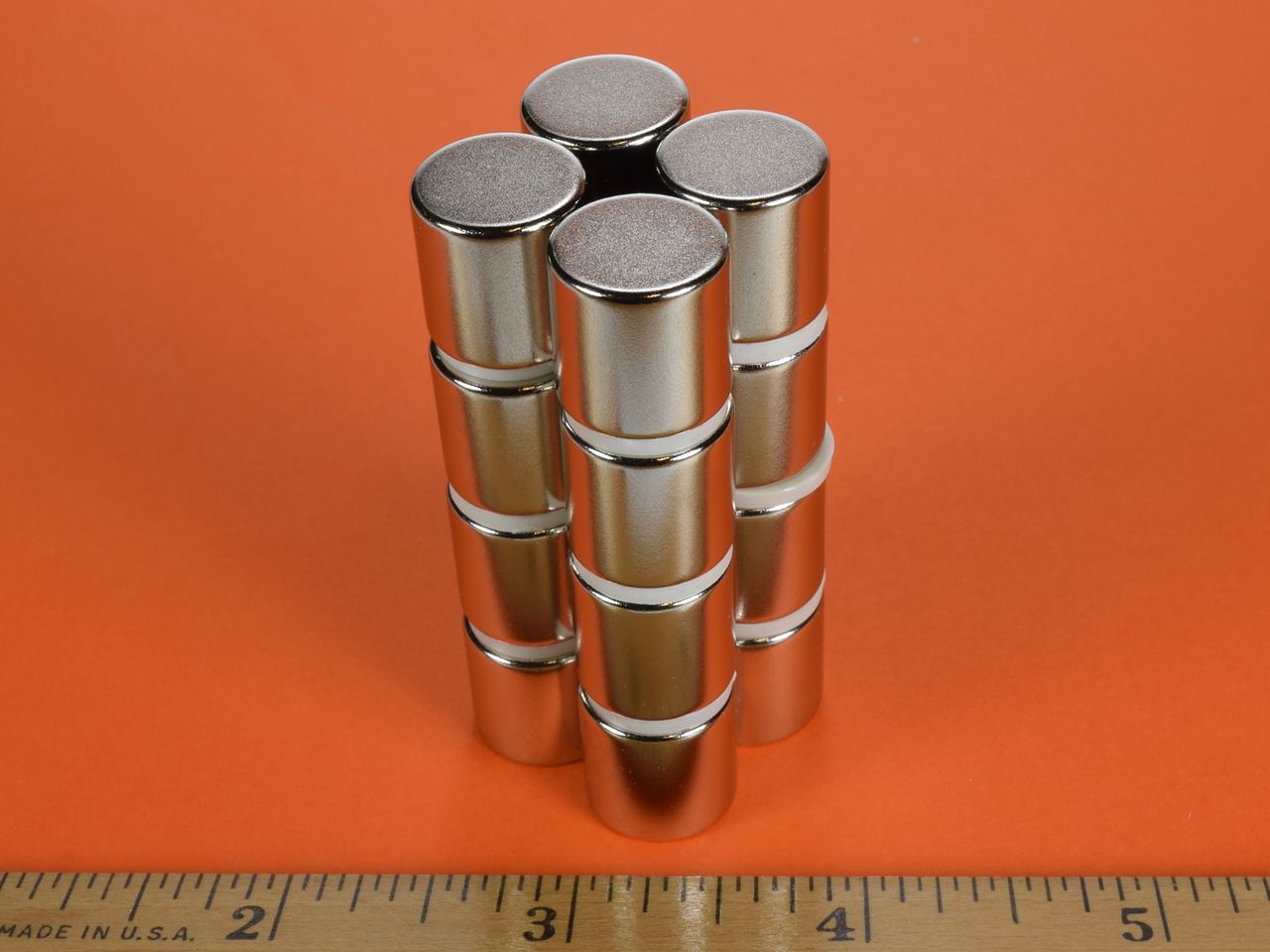

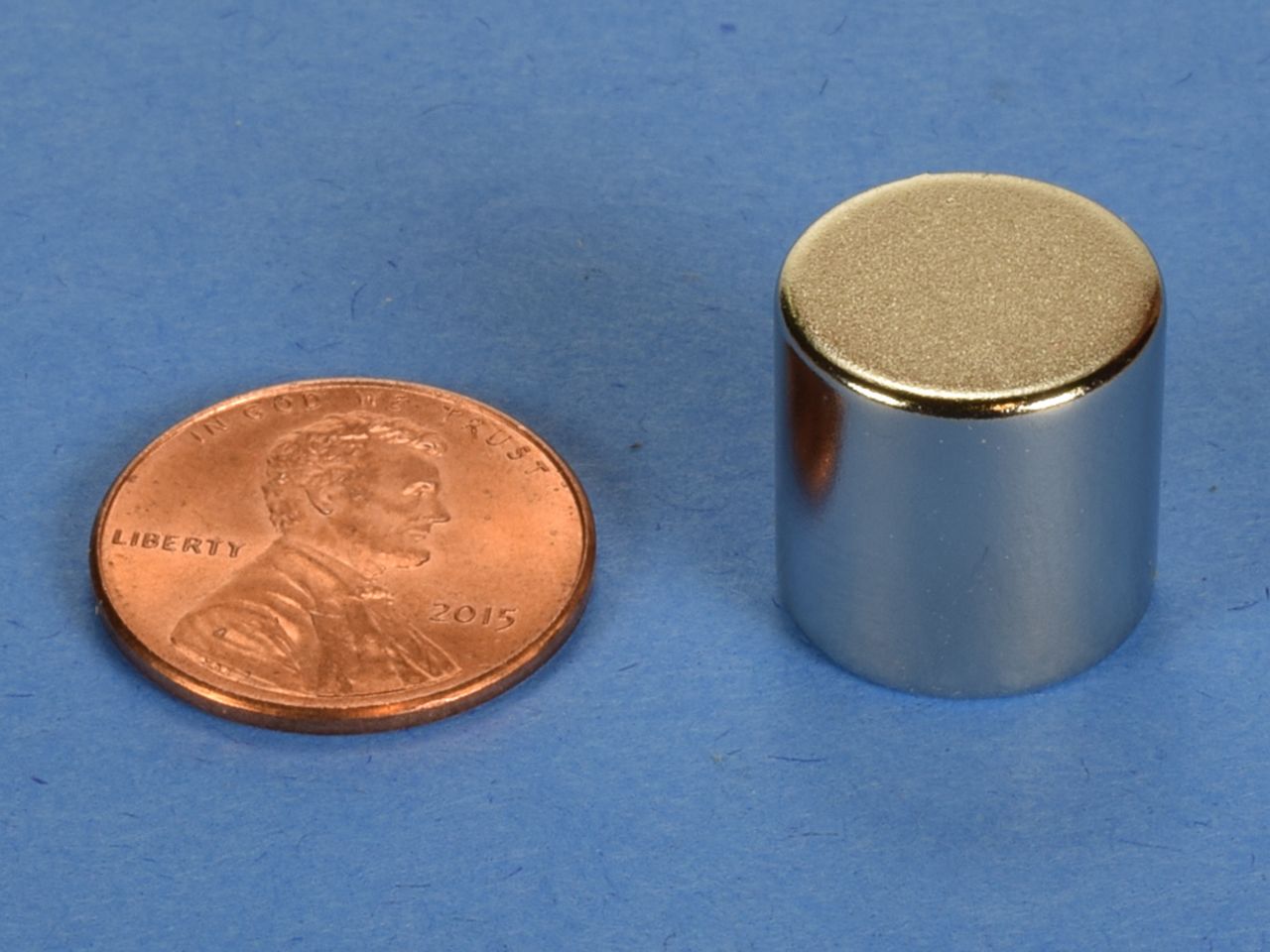

D99 - Neodymium Cylinder Magnet

D99

D99

Description
Technical
Downloads

Dimensions: 9/16" dia. x 9/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.606 oz. (17.18 g)
Pull Force, Case 1: 19.03 lbs
Pull Force, Case 2: 21.52 lbs
Surface Field: 5903 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The D99 is a strong and sturdy magnet. It's compact size and tremendous strength make it suitable for a wide range of applications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $4.19

Quantity:

Qty:

Price ea.	Qty
$4.19	1-4
$4.10	5-9
$4.00	10-24
$3.91	25-49
$3.82	50-99
$3.72	100-249
$3.63	250-499
$3.54	500-999
$3.44	1000-2499
$3.35	2500-4999
For pricing at higher order quantities, please email us!
