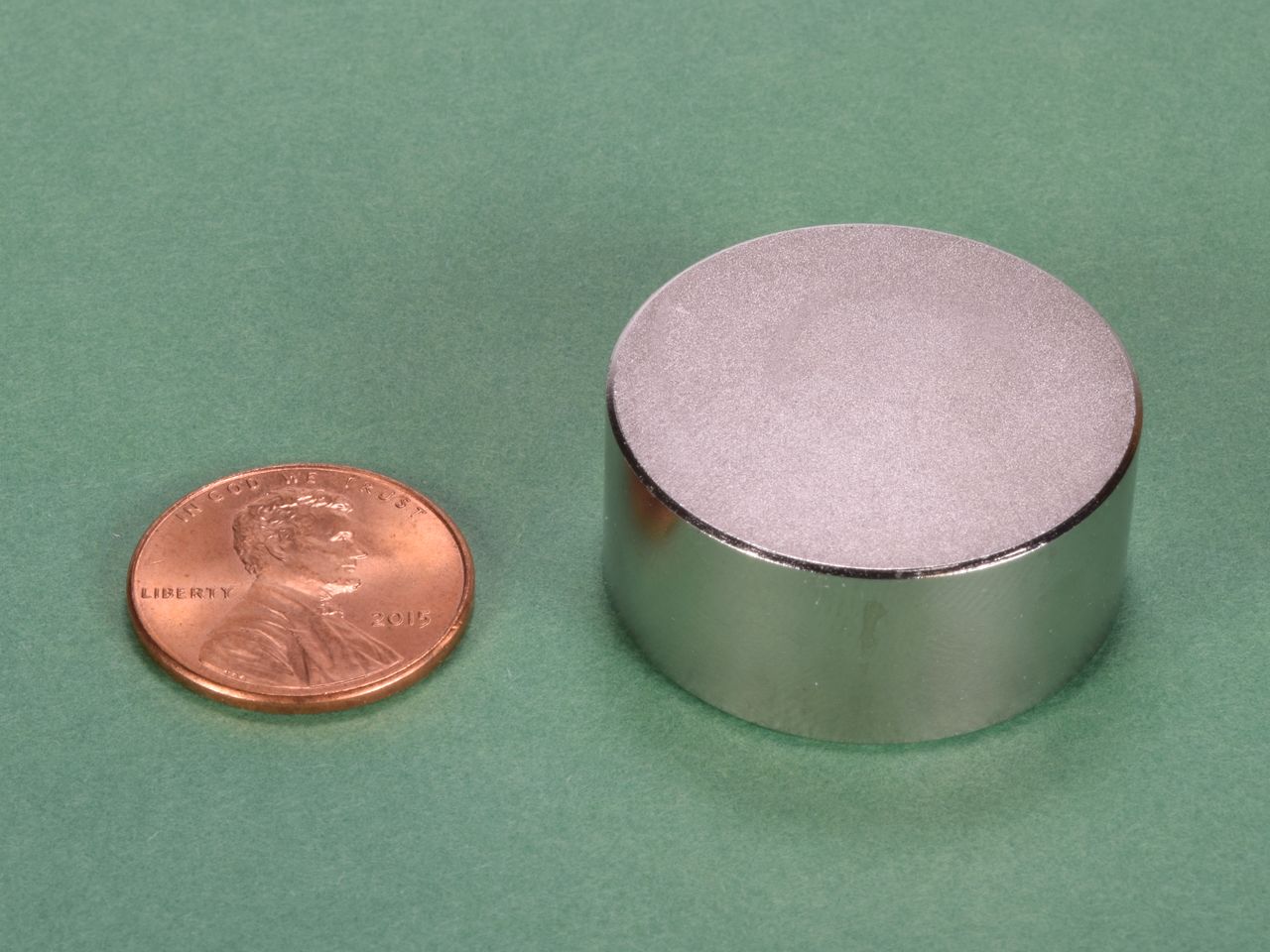

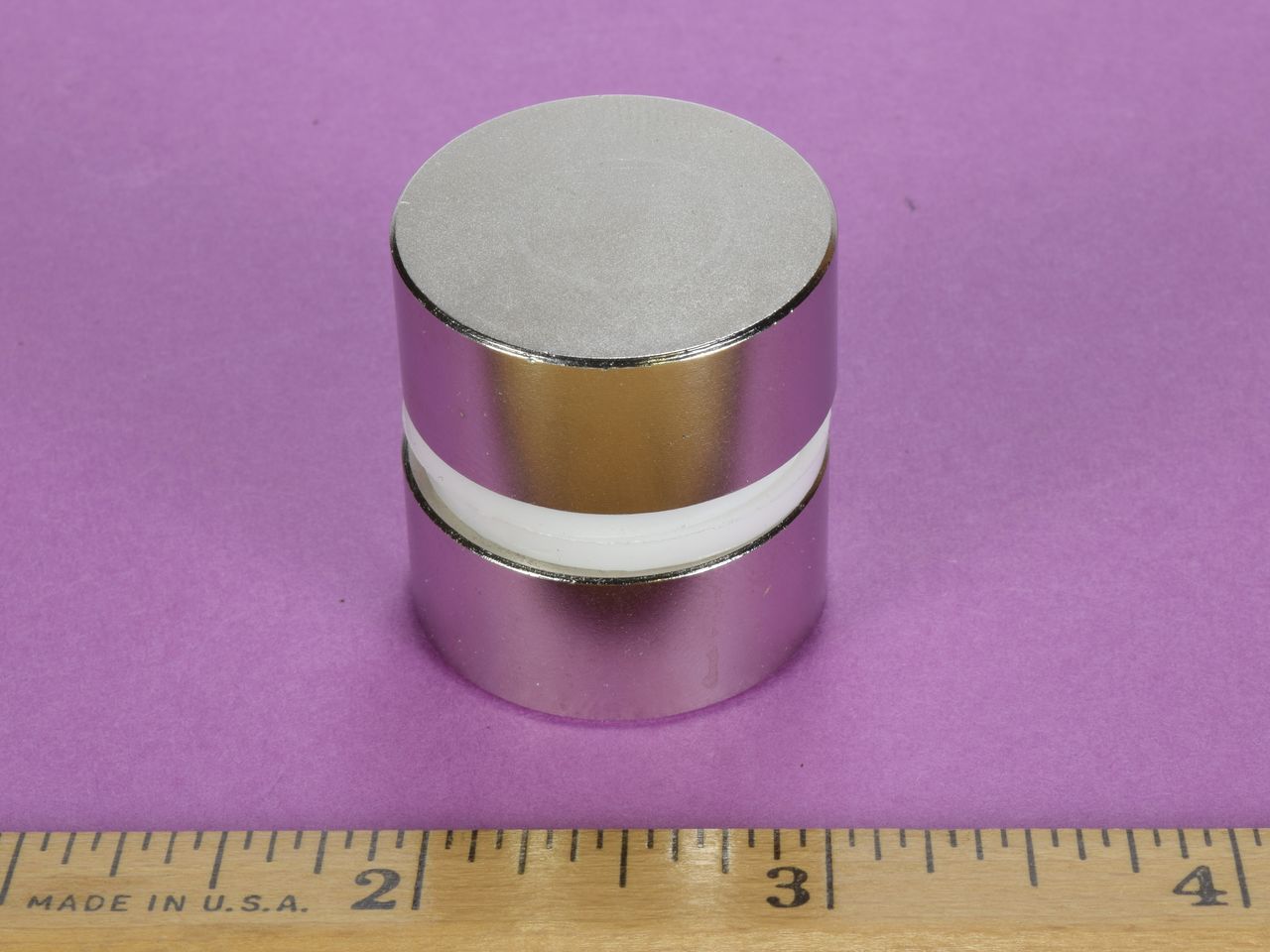

DX28 - Neodymium Disc Magnet

• Dimensions: 1 1/8" dia. x 1/2" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 2.16 oz. (61.09 g)
• Pull Force, Case 1: 54.24 lbs
• Pull Force, Case 2: 74.00 lbs
• Surface Field: 4385 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The DX28 disc is very powerful and must be handled with care. This mighty disc can, and will, pinch quite hard if not treated with respect. The incredible strength of these discs makes them useful for heavy holding, locating steel objects, and other applications that require great magnetic force.
